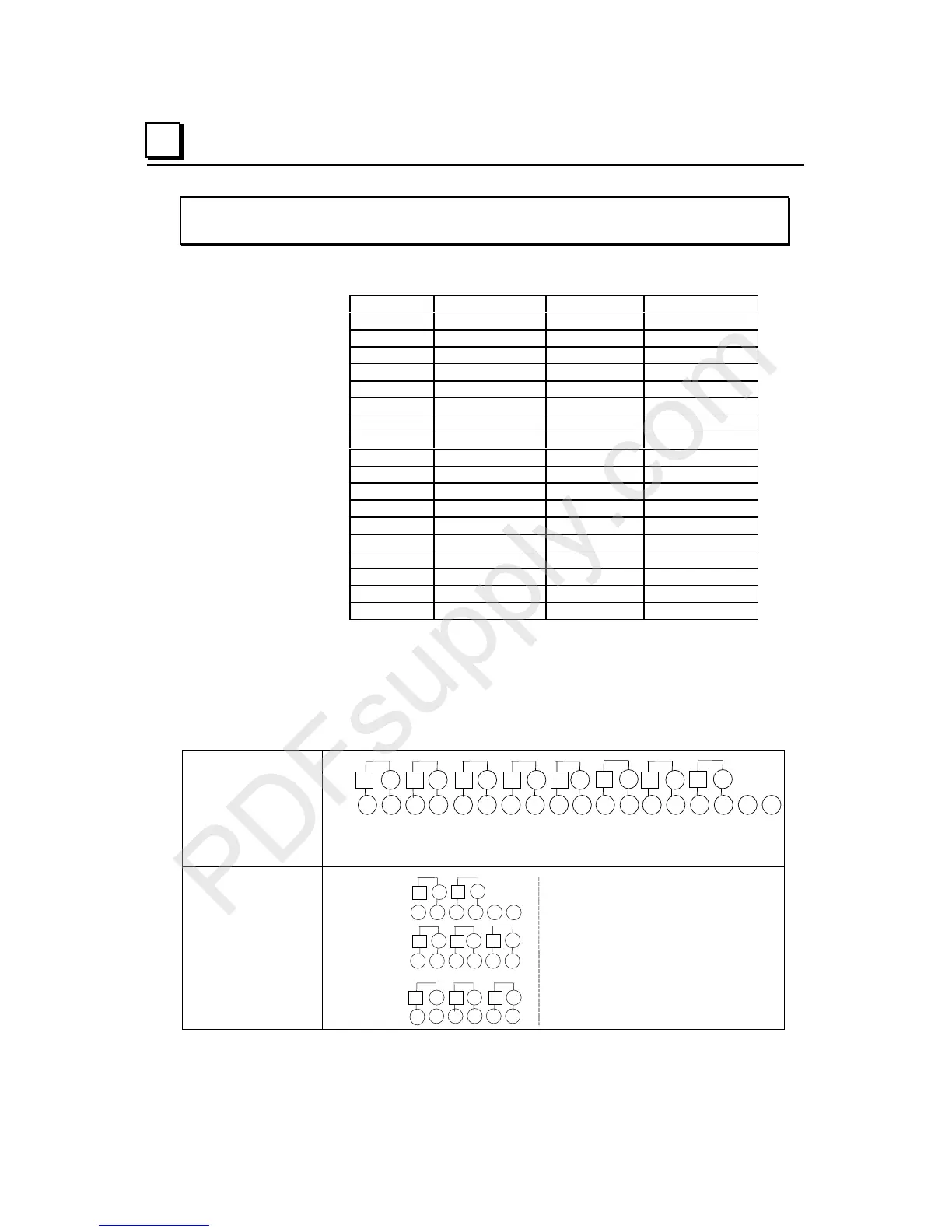

8-4 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
8
IC200MDL329
Output Module, 120VAC 0.5 Amp, Isolated 8 Points
Field Wiring
Terminal Connection Terminal Connection
A1 Output 1 B1 No connection
A2 Output 1 Ret B2 No connection
A3 Output 2 B3 No connection
A4 Output 2 Ret B4 No connection
A5 Output 3 B5 No connection
A6 Output 3 Ret B6 No connection
A7 Output 4 B7 No connection
A8 Output 4 Ret B8 No connection
A9 Output 5 B9 No connection
A10 Output 5 Ret B10 No connection
A11 Output 6 B11 No connection
A12 Output 6 Ret B12 No connection
A13 Output 7 B13 No connection
A14 Output 7 Ret B14 No connection
A15 Output 8 B15 No connection
A16 Output 8 Ret B16 No connection
A17 No connection B17 No connection
A18 No connection B18 No connection
If additional bussed terminals are needed, the B terminals can be made available by
using a shorting bar. The shorting bar has a maximum current-carrying capacity of
2A per point. See chapter 2 for additional information about using the shorting bar.
When wiring outputs to inductive loads, use of external suppression circuits is
recommended. See chapter 2, "Installing Wiring for I/O Devices-Wiring to Inductive
Loads" for more information.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
Q1 Q2 Q4
Q8
Q3 Q5
Q6
Q7
+
+
+
++ +
+
~~ ~
~
~~
~
~
123456789 111213141516171810
A
_
_
_
__ _
__
+
Wiring Connections
for Carriers with Three
Rows of Terminals
IC200CHS001, 022, 025
IC200CHS011
A 123456
13
14 15 16 17 18
7 8 9 11 1210
Q1 Q2
Q4
Q8
Q3
Q5
Q6
Q7
~~
~
~
~
~
~
~
To Next Page
