GFK-1504K Chapter 10 Analog Input Modules 10-19
10
IC200ALG260
Analog Input Module, 12 Bit Voltage/Current 8 Channels

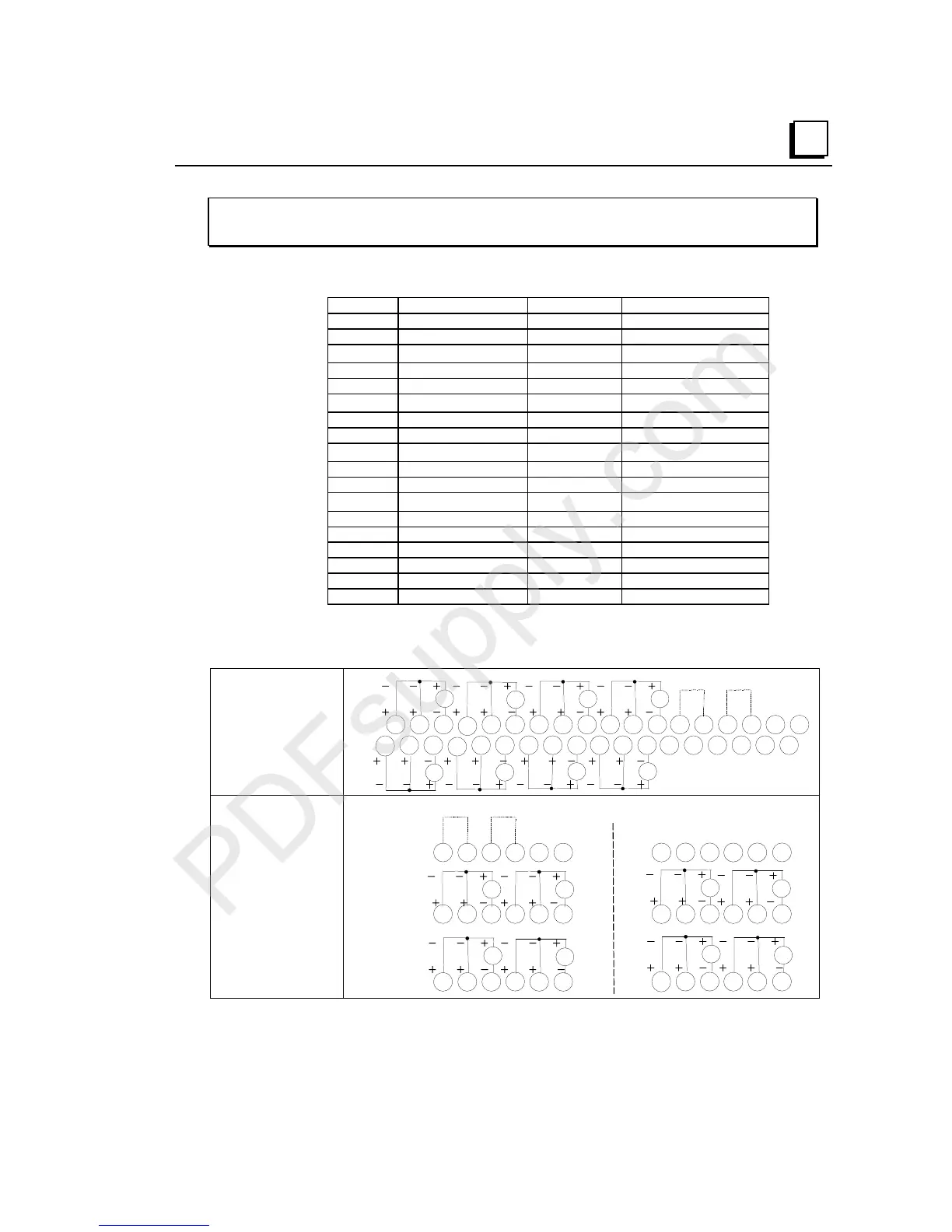

Field Wiring
Number Connection Number Connection
A1 V1 B1 V5
A2 I1 B2 I5
A3
Return (common)
B3
Return (common)
A4 V2 B4 V6
A5 I2 B5 I6
A6
Return (common)
B6
Return (common)
A7 V3 B7 V7
A8 I3 B8 I7
A9
Return (common)
B9
Return (common)
A10 V4 B10 V8
A11 I4 B11 I8
A12
Return (common)
B12
Return (common)
A13 JMP1-A B13 No connection
A14 JMP1-B B14 No connection
A15 JMP2-A B15 No connection
A16 JMP2-B B16 No connection
A17 NC B17 No connection
A18 NC B18 No connection
Note: All inputs are single-ended, and share a common return. Either voltage or current
devices may be connected per channel (not both).
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
A
I5
VI
AI1
VI
AI4
V
I
A
I2
VI
AI3
V
I
AI6
V
I
AI7
V
I
AI8
VI
1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 18
1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 1810
10
B
A
JMP1 JMP2
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
123456
789 111210
A
13 14 15 16 17 18
123456
13 14 15 16 17 18
B
789 111210
AI1
VI
AI4
V
I
AI2
VI
AI3
V
I
JMP1 JMP2
AI5
VI
AI6
VI
AI7
V
I
AI8
V
I
