gefran ADV200 Series User Manual

112 ADV200 • Quick start up guide
+1
-1
*-1
*+1
Analog input1mon
Analog input1Block
Ramp Setpoint Block
Null
Null
Terminal input
Ramp ref1mon
Ramp ref 1 src
An inp 1 sign src
Null
An inp1alt value
An inp1alt sel src
Ramp ref invert src

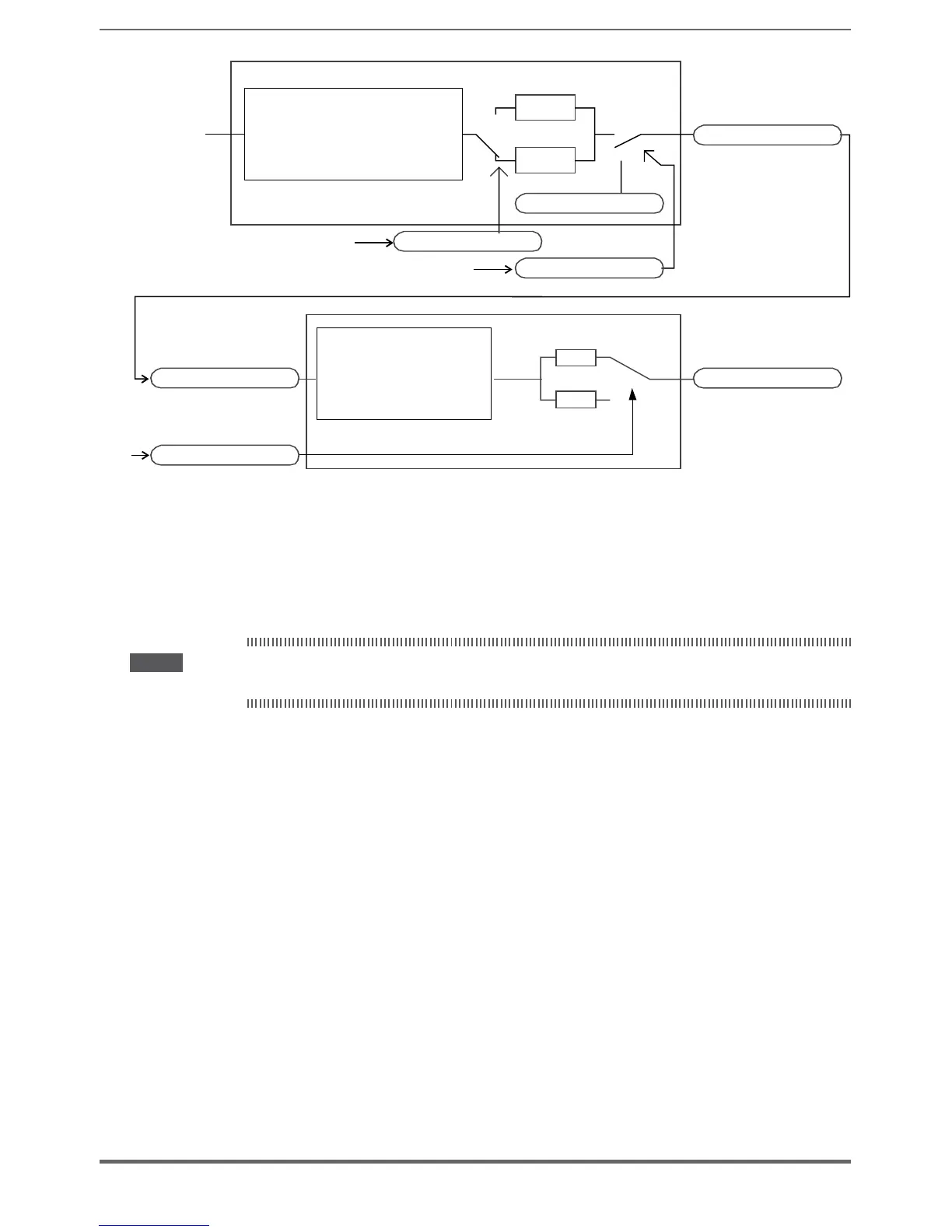

The diagrams above illustrate the internal processing philosophy of the single
“function blocks” and the result of these changes on the other interconnected
“function blocks”.
Note ! This section contains a brief description of the functions of the other parameters in the function blocks
not included for the changes in the example.
The An inp 1 alt sel src parameter (PAR: 1528) can be used to select an alterna-
tive reference for the Analog input 1 mon (PAR: 1500) output.
The An inp 1 alt value parameter (PAR: 1524) determines the alternative refer-
ence value for the Analog input 1 mon (PAR: 1500) output.
The Ramp ref invert src parameter (PAR: 616) can be used to select the source
for the command to reverse the “Ramp setpoint” function block output.
The output signal from the “Ramp setpoint” block is displayed in the Ramp ref 1
mon parameter (PAR: 620).
