gefran ADV200 Series User Manual

ADV200 • Quick start up guide 67
LED’s meaning:
T+ the LED is lit, when the drive operates with a positive torque
T- the LED is lit, when the drive operates with a negative torque
EN the LED is lit, when the drive is enabled
LOC The led is lit when the drive is in local mode and OFF when in remote
mode.
Ilim the LED is lit, when the drive operates at a current limit. During normal
functioning, this led is OFF.
n=0 the LED is lit; it signals zero speed
AL the LED is lit; it signals a trip

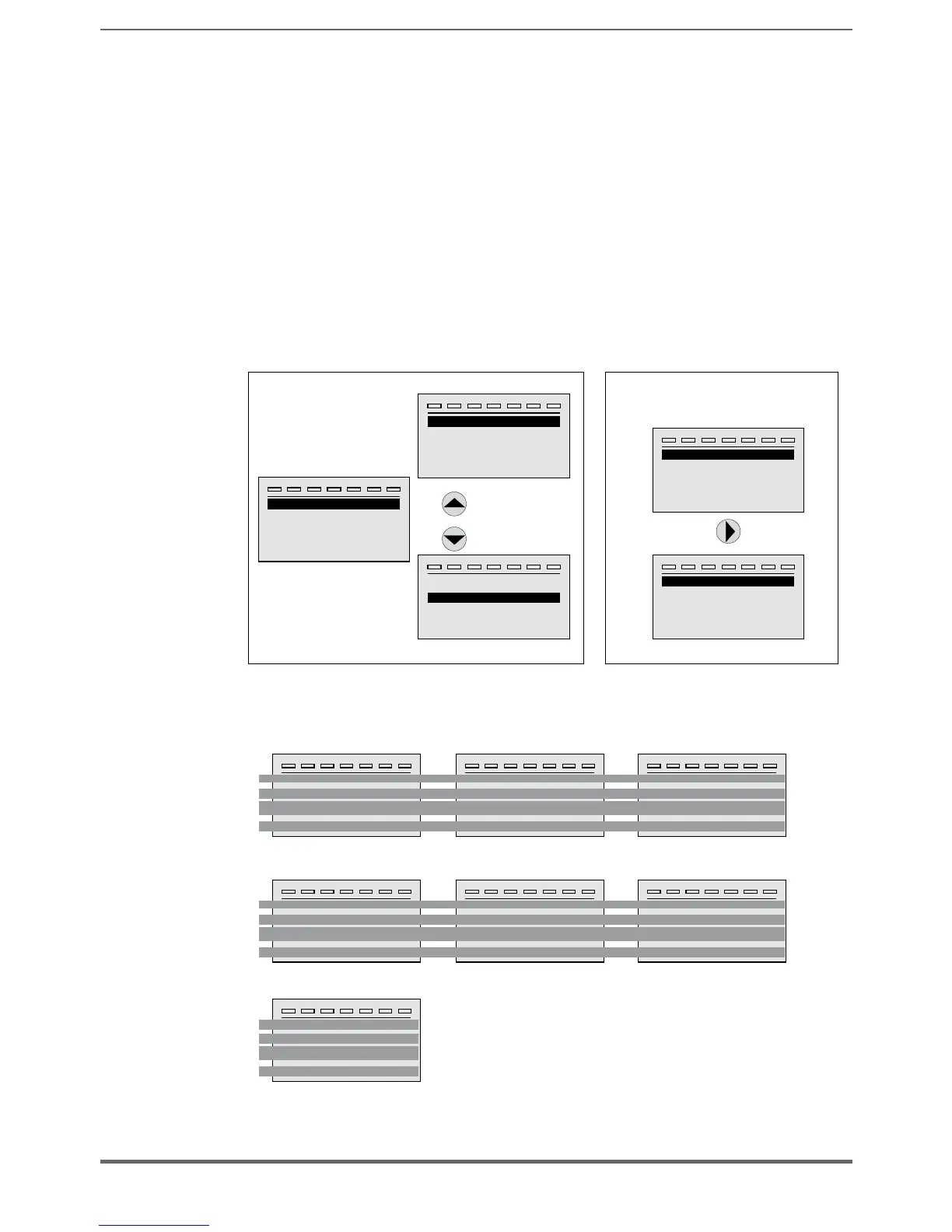

6.2 Navigation
6.2.1 Scanning of the rst and second level menus
T+ T-ENLOC ILim n:0 AL
01 MONITOR
02 DRIVE INFO
03 STARTUP WIZARD
04 DRIVE CONFIG
T+ T-ENLOC ILim n:0 AL
27 SERVICE
01 MONITOR
02 DRIVE INFO
03 STARTUP WIZARD
T+ T-ENLOC ILim n:0 AL
01 MONITOR
02 DRIVE INFO
03 STARTUP WIZARD
04 DRIVE CONFIG
T+ T-ENLOC ILim n:0 AL
22.1 SPEED RATIO
22.2 DROOP
22.3 INERTIA COMP
22.4 DC BRAKING
T+ T-ENLOC ILim n:0 AL
22 FUNCTIONS
23 COMMUNICATION
24 ALARM CONFIG
25 ALARM LOG
1st level 2nd level
(*)
(*) This example is visible only in Export mode (see paragraph 6.5.2).
6.2.2 Display of a parameter
T+ T- EN LO C ILim n:0 ALT+ T- EN LO C ILim n:0 AL T+ T- EN LO C ILim n:0 AL
2
13. 05
PA R:1330
Di
g
out1inversion
16.01
PA R:2000
Rated volta e
g
+
400 V
05.04
PA R: 610
Ram ref1src
p
Mlt ref out mon
1
3
4
Def: +400
ABC
T+ T- EN LO C ILim n:0 ALT+ T- EN LO C ILim n:0 AL T+ T- EN LO C ILim n:0 AL
2
04.0 1
PA R: 550
Save arameters
p
04.02
PA R: 552
Re
g
ulation mode
V/f control
01.01
PA R: 250
Out
p
ut current
+0.3 A
1
3
4
Value: 0
DEF
ON
Value: 2034
PressEto execute
Param read onl
y
T+ T- EN LO C ILim n:0 AL
2
Autotune
1
3
4
Error code: 1
G
Press ESC to exit
1 Position of the parameter in the menu structure (in gure A, 16.01);
number of the parameter (in gure A, PAR: 2000).
