88 ADV200 • Quick start up guide
7.1.2 Startup Wizard for Synchronous Motors
Introduction
The ADV200 can operate with regulation modes: eld-oriented vector control Flux
vector CL and Flux vector OL of permanent magnet synchronous motors (brushless).

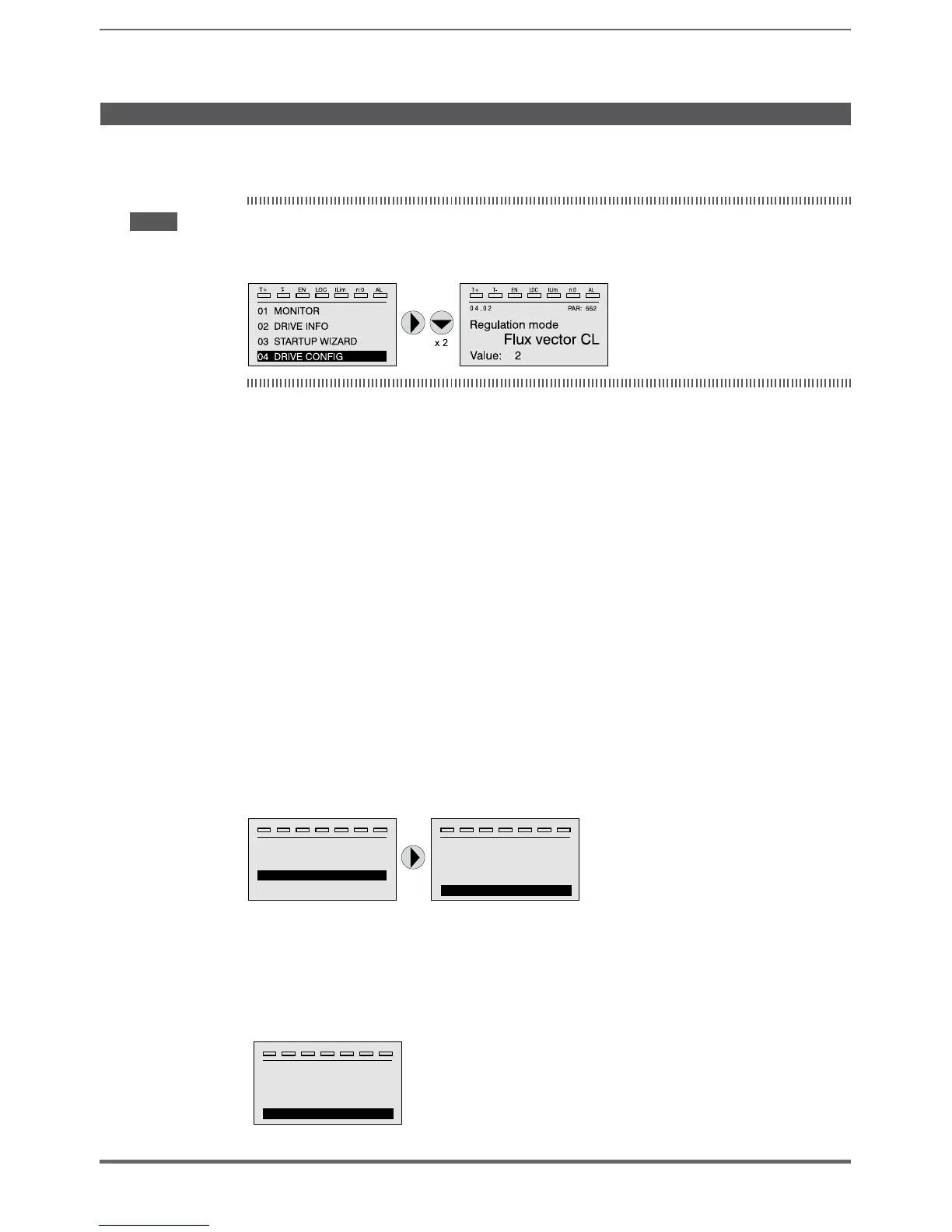

Note! Before starting, check the factory setting:
Menu 04 DRIVE CONFIG, parameter 04.2 Regulation mode, PAR: 552,
default=Flux vector CL.
The startup wizard is a guided procedure used for quick start-up of the drive that
helps to set the main parameters.
It consists of a series of questions relating to the various sequences for entering
and calculating the parameters necessary for correct drive operation.
The order of these sequences is as follows:
● Basic connections See step 1
● Setting motor parameters See step 2
●
Self-tuning with motor at stand-still or coupled to the load See step 3
● Setting encoder parameters (*) See step 4
● Encoder phasing (*) See step 5
● Setting the maximum speed reference value See step 6
● Setting ramp parameters See step 7
● Saving parameters See step 8
● Setting of the synchronous motor in “Flux Vect OL” (sensorless) mode for
typically variable torque load types See step 9
(*) Flux vector CL mode only.
The format of the function selection page is as follows:
T+ T-ENLOC ILim n:0 AL
01 MONITOR
02 DRIVE INFO
03 STARTUP WIZARD
04 DRIVE CONFIG
T+ T- EN LO C ILim n:0 AL
STARTUP WIZARD
Set motor data ?
E=Yes Down=Next
Pressing the E key, the function to be programmed is accessed.
Press the ▼ (Down) key to move to the next function skipping the current function.
Press the ▲ key to return to the previous function.
To terminate the sequence of functions and return to the menu, press the ESC key.
The end of the start-up sequence is indicated with the page:
T+ T- EN LO C ILim n:0 AL
STARTUP WIZARD
End of se
q
uence !
U
p
=Back Down=Next
Press the ▼(Down) key to exit the sequence and return
to the menu.
