ADV200 • Quick start up guide 145
Sizes
For Synchronous motors
Heavy duty Light duty
K1 SP [%] K2 SP [Hz] K3 SP [Hz] K1 SL [%] K2 SL [Hz]
2075 100 3 5 75 3
2110 100 3 5 75 5
3150 100 5 8.3 75 7
3185 100 5 8.3 85 5
3220 100 3 5 80 5
4300 100 3 5 80 3
4370 100 3 5 80 3
4450 100 3 5 80 3
5550 100 3 5 85 5
5750 100 5 8.3 85 5
5900 100 5 8.3 85 5
61100 100 3 5 100 3
61320 100 3 5 100 3
71600 100 3 5 80 3
72000 100 3 5 100 3
72500 100 3 5 75 5
73150 100 3 5 100 3
73551 100 3 5 100 3
400 kW 100 3 5 100 3
500 kW 100 3 5 75 5
630 kW 100 3 5 100 3
710 kW 100 3 5 100 3
900 kW 100 3 5 100 3
1 MW 100 3 5 100 3

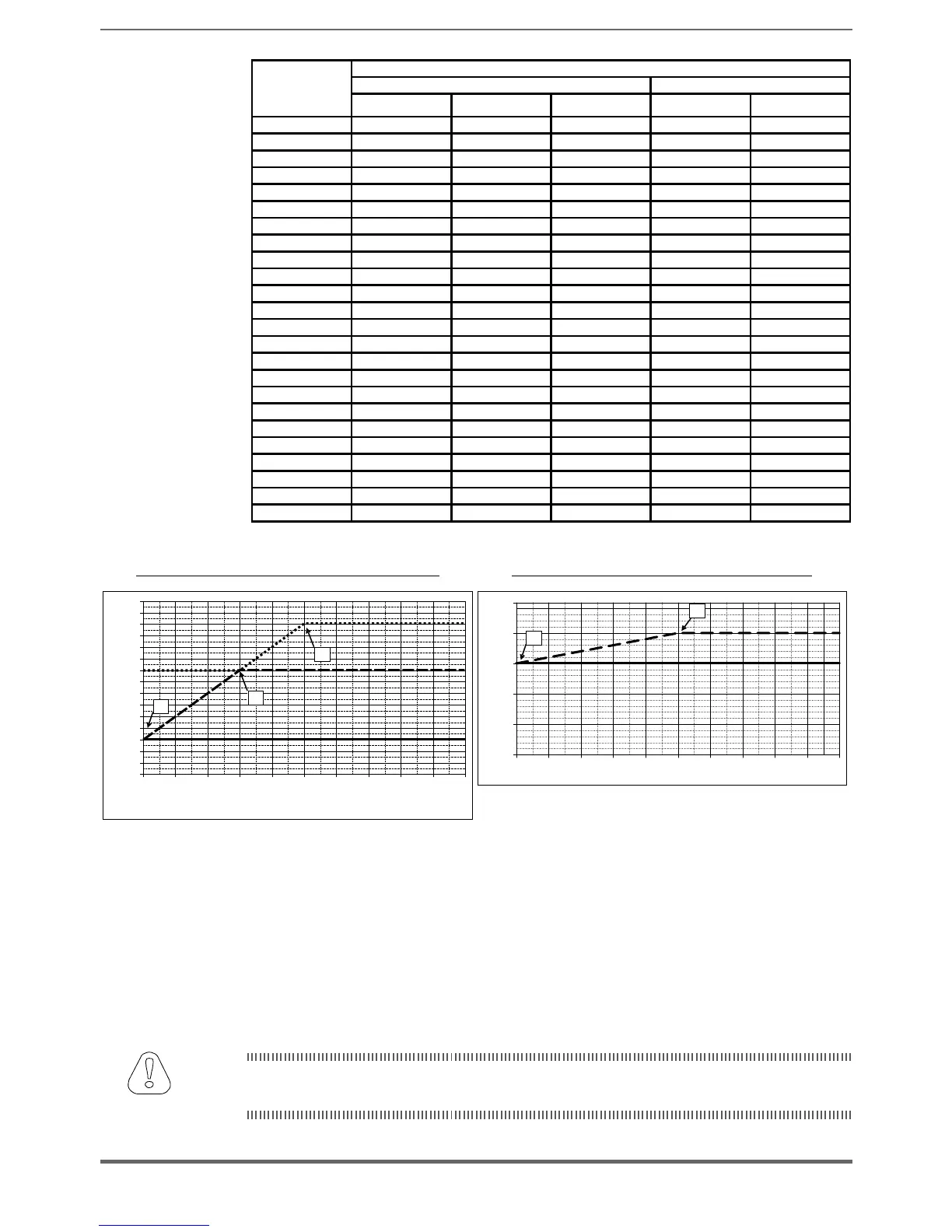

Figure 9.7.2.3: HD Overload (For Synchronous motors) Figure 9.7.2.4: LD Overload For Synchronous motors)
70
80
90
100
110
120
130
140
150
160
170
180
190
200
012345678910
f [Hz]
I out [%]
k1
k2
k3
70
80
90
100
110
120
0123456789
10
f [Hz]
I out [%]
k1
k2
_ _ Islow, .... Ifast; __ I
n
(1) FAST current limit; (2) SLOW current limit; (3) RATED current
limit
_ _ Islow, __ I
n
9.8 Voltage level of the inverter for safe operations
The minimum time between the moment in which an ADV200 drive is disabled
from the mains and that in which an operator can operate on internal parts of the
drive, without the danger of electric shock, is 5 minutes.
The value consider the time to turn-off for a drive supplied at 460V
ac
+10%, without any
options (time indicated for disabled drive condition).
Attention
