ADV200 • Quick start up guide 185

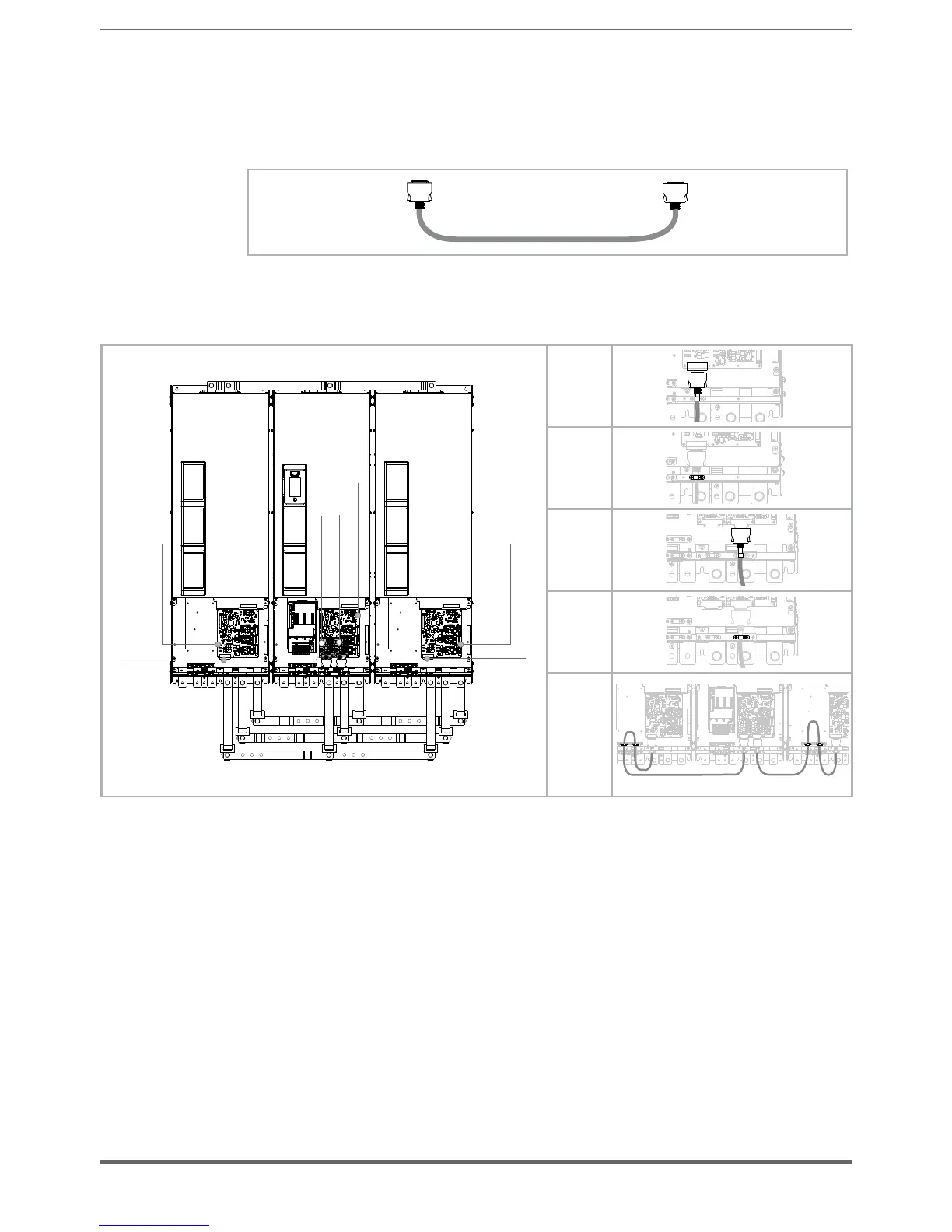

A 1.3 MS-SL interface cable wiring sizes 900 kW ... 1 MW
Fit the ADV200 MASTER and SLAVE inverters inside the electrical panel. Con-
nect all the power section cables and connect the 2 signal cables for interfacing
between the 3 drives.
The cable (code 8S860B, x 2) for connecting the drives is one metre long and has
two quick coupling male MDR connectors at the ends.
ADV-...-MS-..
ADV-...-SL
(SLAVE 2)
ADV-...-SL
(SLAVE 1)
INT-P-ADV SLAVE card (2)
XSL connector
INT-P-ADV SLAVE card (1)
XSL connector
INT-SLAVE card (1)
J4 connectors
INT-P-ADV MASTER card
INT-SLAVE card (2)
1.
2.
3.
4.
6.
Wiring instructions:
1. Connect one of the 2 ends of the interface cable to the XSL connector of the
INT-P-ADV-SLAVE (SLAVE 2) card.
2. Secure the cable using the specic clamp.
3. Connect the other end of the cable to connector J4 of the INT-SLAVE (2)
card mounted on the INT-P-ADV-MASTER card of the MASTER drive.
4. Secure the cable in the relative clamp
5. Repeat steps 1-2-3-4 for SLAVE 1.
6. To prevent the interface cables from coming into contact with the power
terminals, fold the excess length of cable inside the SLAVE drive as shown in
the gure and secure it using the specic cable clamps.
