ADV200 • Quick start up guide 37

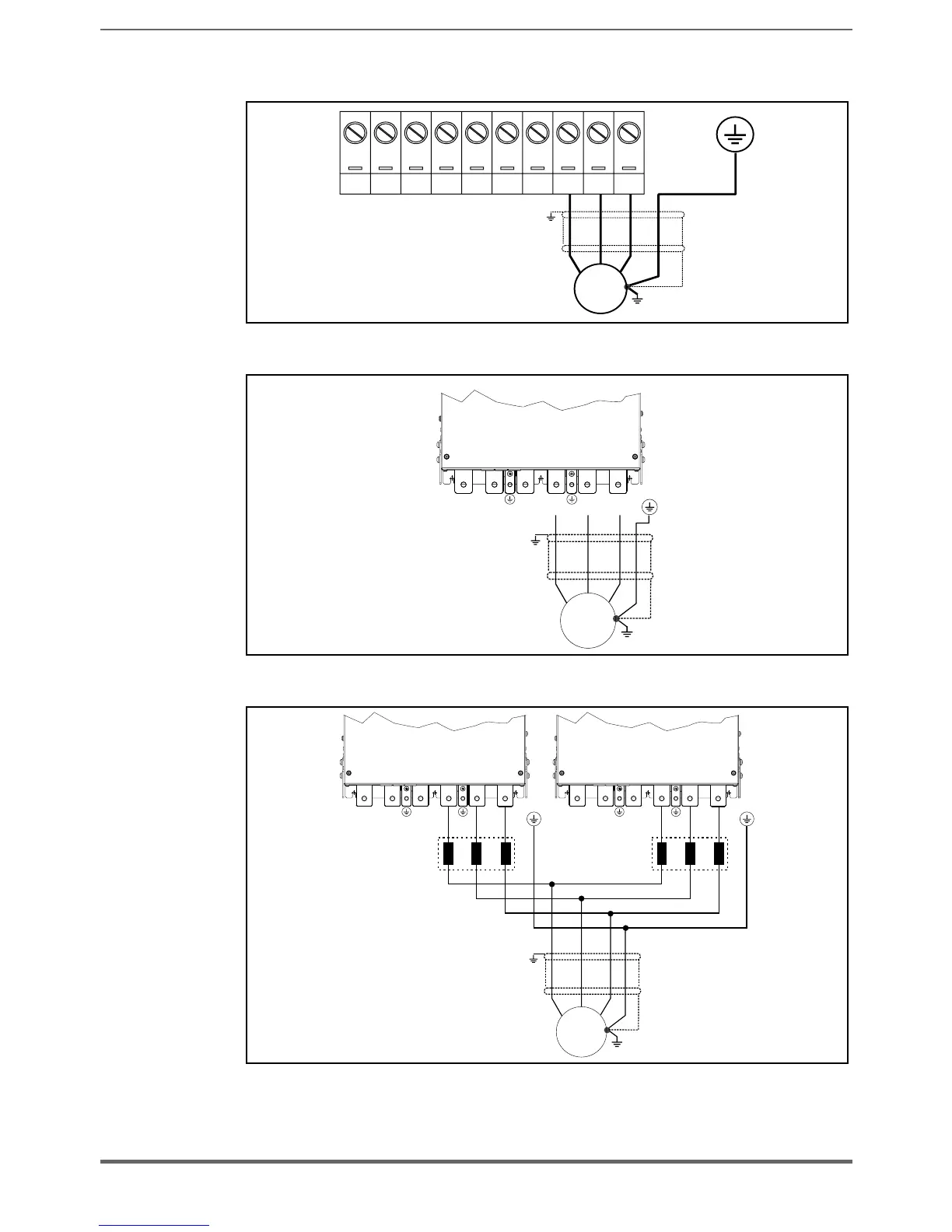

5.1.8 Motor connection
ADV1007 ... ADV61320
M
3ph
L1 L2 L3 BR1 BR2 CDUVW
Note: terminals L1-L2 and L3 are not present in -DC versions.
ADV71600 ... ADV73551
L1 L2 L3 UVW
M
3ph
Note: terminals L1-L2 and L3 are not present in -DC versions.
400 ... 710 kW
L1 L2 L3 UVW
M
3ph
L1 L2 L3 UV W
ADV-...-MS-.. ADV-...-SL
Output choke
or current-sharing
choke (mandatory)
Output choke
or current-sharing
choke (mandatory)
Note: terminals L1-L2 and L3 are not present in -DC versions.
