HAND
&
FOOT
CONTROLLED
LOADERS
(continued)
LlFTITIL T CONTROL FOOT PEDALS
Attachment
Travel: The right Foot Pedal controls the
tilting motion
of
the attachment.
To
tilt the attachment
rearward, use your heel to push down on the rear
of
the
right Pedal; to tilt the attachment forward, use your toe
to push down on the front
of
the right Pedal.
Liftarm
Travel: The left Foot Pedal controls the
raising and lowering motion
of
the Liftarm.
To
raise the Liftarm, use your heel to push down on
the rear
of
left Foot Pedal.
To
lower the Liftarm, use your toe to push down on
the front
of
the left Pedal.
The Lift Spool in the System Control Valve
is
provided
with a detent circuit to allow the lowered Liftarm
to
"float"
when
traveling
over
changing
ground
conditions.
To
place the Liftarm in the
detent
(float)
condition, use your toe to push the left Foot Pedal all
the way down, past the detent. (See Warning below).
AWARNING
NEVER
push
the
Lift/Tilt
T-Bar
into
the
"Float"
position
with
the
Bucket
or
Attachment
loaded
and/or
raised.
Doing
so
could
cause
the
Lift
Arm
to
lower
rapidly
and
the
Bucket
or
Attachment
to
dump.
NOTE:
Speed
of
motion
is
directly proportional
to
the amount
of
Foot Pedal movement
and
Engine RPM.
FORWARD
t
LEFT TURN
LEFT
FAST TURN
BACKWARD
I
RIGHT TURN
RIGHT
FAST TURN

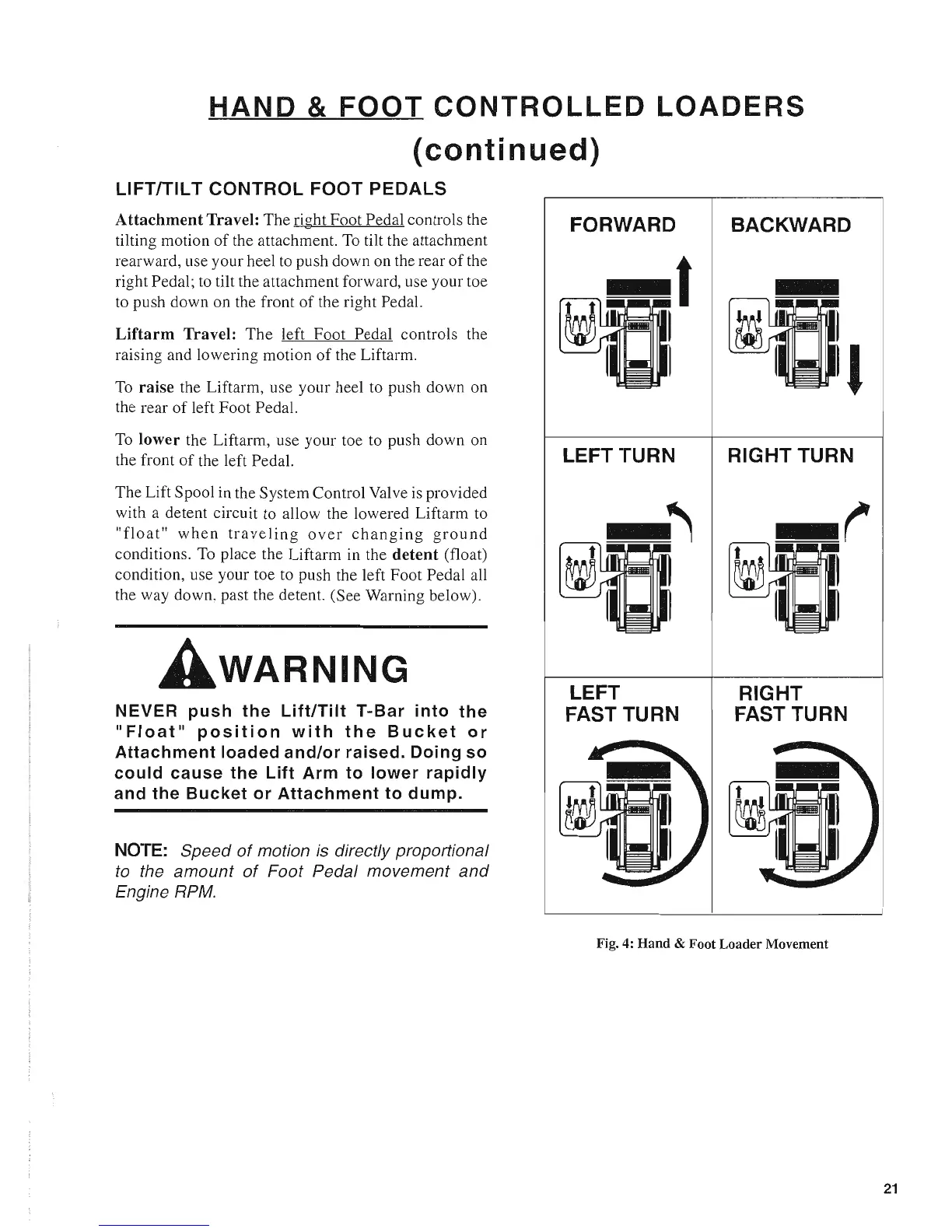

Fig. 4:
Hand
& Foot Loader Movement
21
