INSTRUMENT
&
CONTROL
PANEL
(Fig. 9)
The
Instrument
and
Control
Panel
contains
the
following
control
Switches
and
Indicators.
International symbols are provided on the Panel to
represent various functions, conditions and Switch
positions. Symbols are only visible when indicator
lamps are on.
1.
Coolant Temperature Gauge - Indicates En-
gine coolant temperature.
2.
Fuel Level Gauge -Indicates the amount
offuel
remaining in the Fuel Tank.
NOTE:
Reference
Items
3
through
6
are
Indicator Lights which display the following:
3.
Battery - Indicates the condition
of
the charging
system. During normal operation, this Indicator
should be OFF.
If
the charge rate is too high or too
low, this Indicator will light.
4.
Engine Oil Pressure- During normal operation,
this Indicator should be OFF.
If
the Engine oil
pressure drops too low, this Indicator will light and
warn the operator to IMMEDIATELY stop the
Engine and determine the cause for the pressure
drop.
5.
Fasten Seat Belt - Audible and visual indica- 10
tions are provided to remind the operator to fasten
the Seat Belt.
6.
Glow
Indicator
Lamp
- After the Glow Plugs
have heated for a sufficient amount
of
time, the
Lamp will go out and the Engine can be started.
Turn the Key to the "START" position to start the
Engine, the BATTERY Light should go off.
NOTE:
The
Loader Engine cannot be started
unless the operator is sitting on the Seat,
and
the
Operator Restraint
Bar
is down.
7.
Hourmeter
- Indicates the total operating hours
of
the Loader. The Hourmeter is especially useful
for logging time in the "Maintenance Schedule"
located at the back
of
this manual.
24
9
8
10
o
o
o o

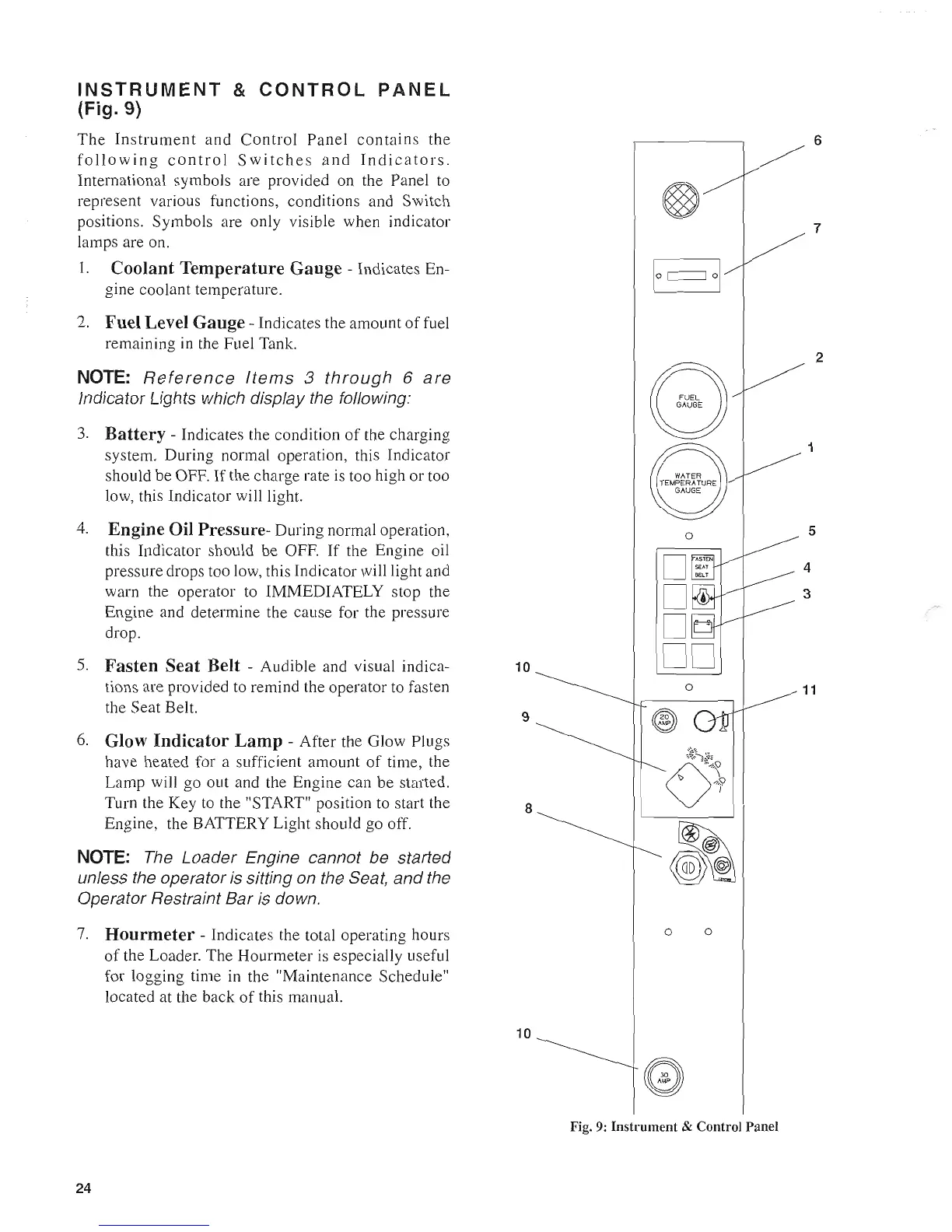

Fig.
9:
Instrument & Control Panel
