Gehl 5625SX User Manual

A

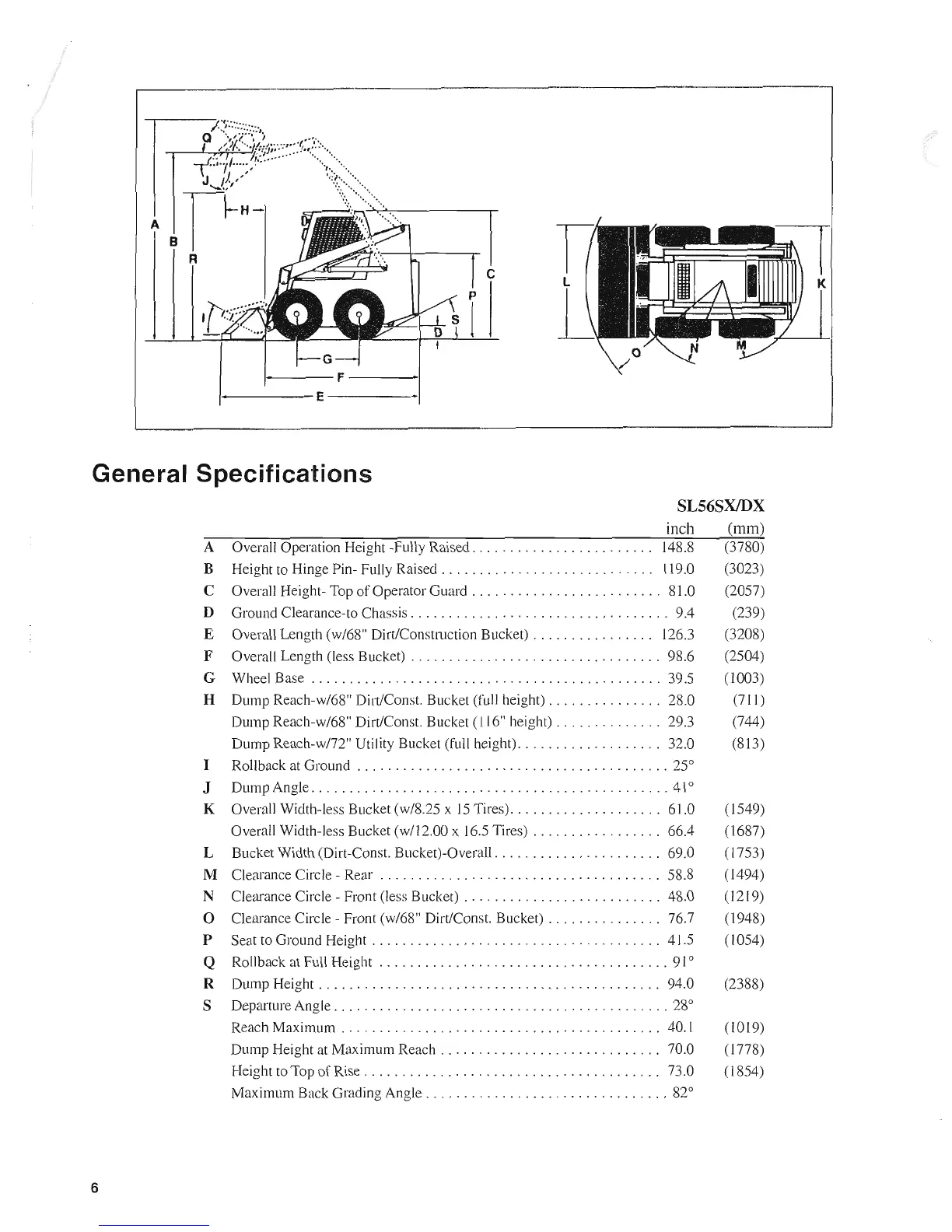

General Specifications
SL56SX/DX
6
inch
A Overall Operation Height -Fully Raised ........................ 14S.S
B Height to Hinge Pin- Fully Raised. . . . . . . . . . . . . . . . . . . . . . . . . . .. 119.0
C Overall Height-Top of Operator Guard. . . . . . . . . . . . . . . . . . . . . . . .. SI.O
D Ground Clearance-to Chassis .................................. 9.4
E Overall Length (w/6S" DirtlConstruction Bucket) ................ 126.3
F Overall Length (less Bucket) ................................. 9S.6
G Wheel Base .............................................. 39.5
H Dump Reach-w/6S" Dirt/Const. Bucket (full height) ............... 2S.0
Dump Reach-w/6S" Dirt/Const. Bucket (116" height)
.............. 29.3
Dump
Reach-w/72" Utility Bucket (full height) ................... 32.0
I Rollback at Ground ......................................... 25°
J Dump Angle ............................................... 41°
K Overall Width-less Bucket (w/S.25 x 15 Tires) .................... 61.0
Overall Width-less Bucket (wI12.00 x 16.5 Tires)
................. 66.4
L Bucket Width (Dirt-Const. Bucket)-Overall ...................... 69.0
M Clearance Circle - Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 5S.S
N Clearance Circle - Front (less Bucket) . . . . . . . . . . . . . . . . . . . . . . . . . . 4S.0
o Clearance Circle - Front (w/6S" Dirt/Const. Bucket) ............... 76.7
P Seat to Ground Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41.5
Q Rollback at Full Height ...................................... 91 °
R Dump Height. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 94.0
S Departure Angle ............................................ 2So
Reach Maximum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40.1
Dump Height at Maximum
Reach. . . . . . . . . . . . . . . . . . . . . . . . . . . .. 70.0
Height to Top
of Rise ....................................... 73.0
Maximum Back Grading Angle
................................ S2°
(mm)
(37S0)
(3023)
(2057)
(239)
(320S)
(2504)
(1003)
(711)
(744)
(SI3)
(1549)
(16S7)
(1753)
(1494)
(1219)
( 1945)
(1054)
(23SS)
(1019)
(l77S)
(lS54)

Gehl 5625SX Specifications

General

Brand	Gehl
Model	5625SX
Category	Compact Loader
Language	English
