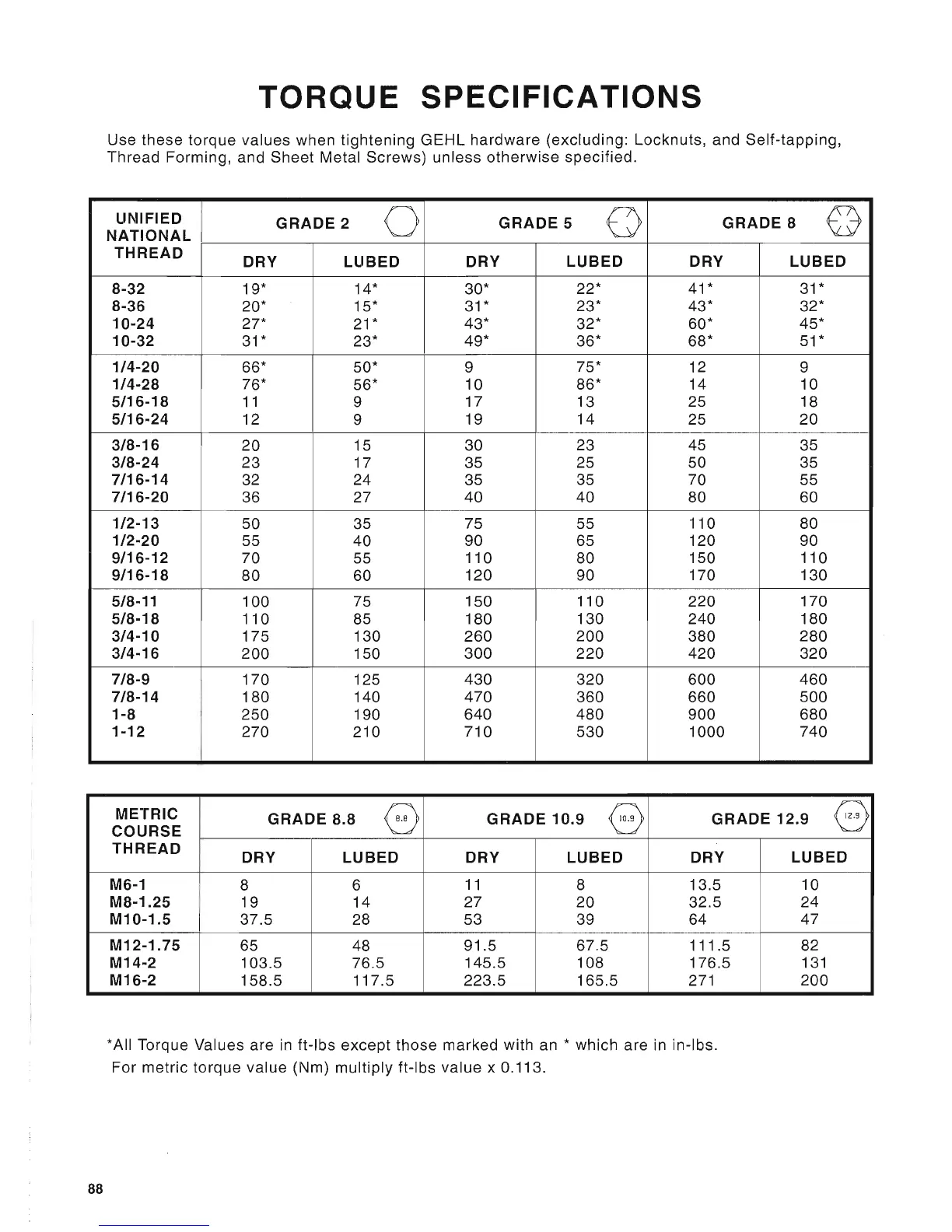

TORQUE SPECIFICATIONS
Use these torque values when tightening GEHL hardware (excluding: Locknuts, and Self-tapping,
Thread Forming, and Sheet Metal Screws) unless otherwise specified.
UNIFIED
GRADE 2
0
GRADE 5
0
GRADE 8
0
NATIONAL
THREAD
DRY LUBED
DRY LUBED DRY LUBED
8-32 19* 14* 30*
22* 41*
31 *
8-36 20* 15* 31 * 23* 43* 32*
10-24 27* 21 * 43* 32* 60* 45*
10-32 31 * 23* 49* 36* 68* 51*
1/4-20 66* 50*
9
75*
12 9
1/4-28 76* 56* 10
86*
14 10
5/16-18 11
9
17 13 25 18
5/16-24
12
9
19 14 25
20
3/8-16
20 15 30
23 45
35
3/8-24 23 17
35
25 50 35
7/16-14 32
24 35
35 70 55
7/16-20
36 27 40
40
80 60
112-13
50
35
75 55
110
80
112-20
55
40 90 65
120 90
9/16-12
70 55
110
80
150 110
9116-18
80 60
120 90 170
130
5/8-11
100 75 150
110
220 170
5/8-18 110
85
180 130 240 180
3/4-10
175 130 260 200 380 280
3/4-16
200 150 300 220 420 320
7/8-9
170 125 430 320 600 460
7/8-14
180 140
470
360 660 500
1-8
250 190 640 480 900 680
1-12
270
210
710
530
1000 740
METRIC
GRADE 8.8
0
GRADE 10.9
e
GRADE 12.9
e
COURSE
THREAD
DRY LUBED DRY LUBED DRY LUBED
M6-1
8 6
11 8 13.5 10
M8-1.25 19
14
27 20 32.5 24
M10-1.5
37.5 28 53 39 64
47
M12-1.75
65 48 91.5 67.5 111.5 82
M14-2
103.5 76.5 145.5 108 176.5 131
M16-2
158.5 117.5 223.5 165.5 271
200
* All Torque Values are in ft-Ibs except those marked with an * which are in in-Ibs.
For
metric torque value (Nm) multiply ft-Ibs value x 0.113.
