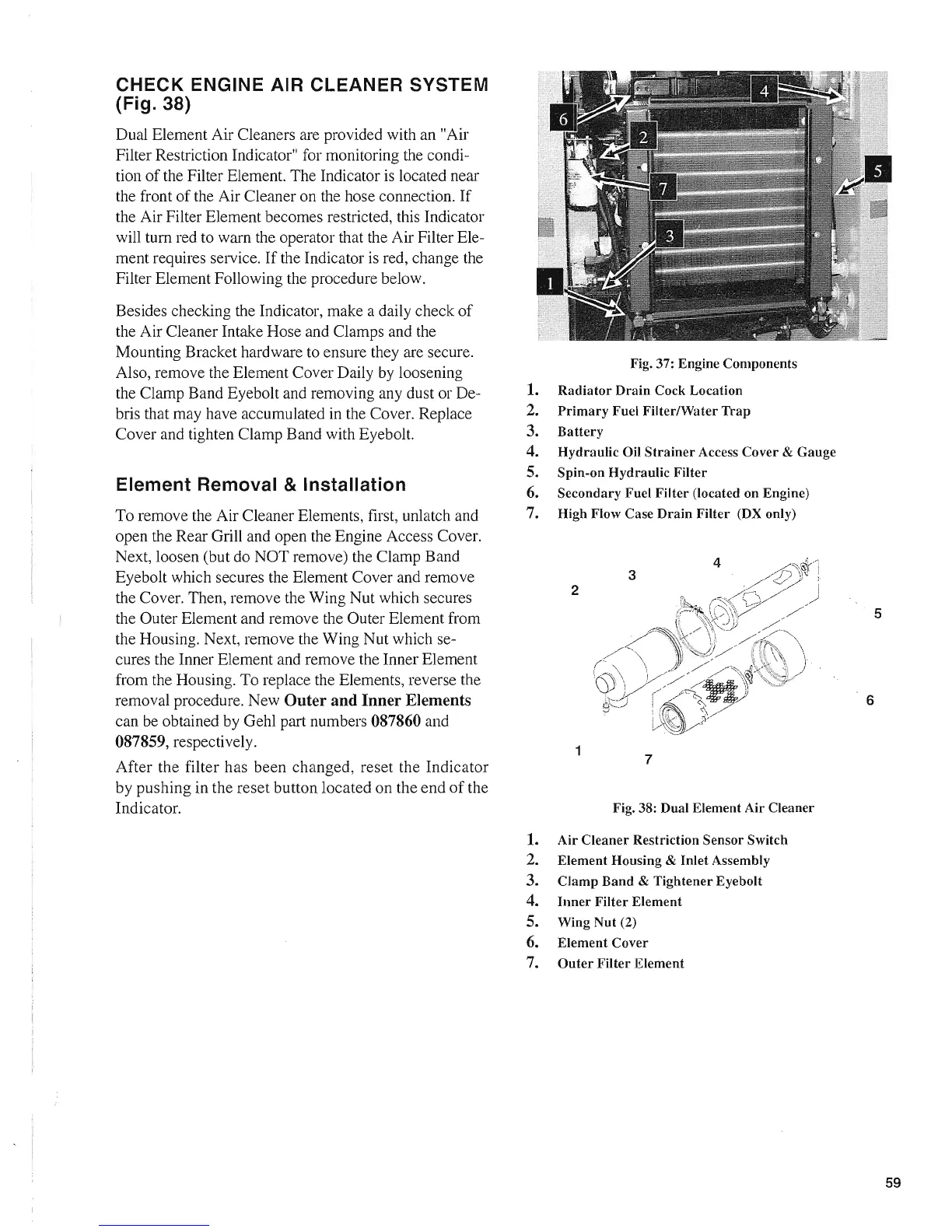

CHECK ENGINE AIR CLEANER SYSTEM
(Fig. 38)
Dual Element Air Cleaners are provided with an "Air
Filter Restriction Indicator" for monitoring the condi-
tion
of
the Filter Element. The Indicator
is
located near
the front
of
the Air Cleaner on the hose connection.
If
the Air Filter Element becomes restricted, this Indicator
will tum red to warn the operator that the Air Filter Ele-
ment requires service.
If
the Indicator is red, change the
Filter Element Following the procedure below.
Besides checking the Indicator, make a daily check
of
the Air Cleaner Intake Hose and Clamps and the
Mounting Bracket hardware to ensure they are secure.
Also, remove the Element Cover Daily by loosening
the Clamp Band Eyebolt and removing any dust or De-
bl1S
that may have accumulated in the Cover. Replace
Cover and tighten Clamp Band with Eyebolt.
Element Removal & Installation
To remove the Air Cleaner Elements, first, unlatch and
open the Rear Grill and open the Engine Access Cover.
Next, loosen (but do NOT remove) the Clamp Band
Eyebolt which secures the Element Cover and remove
the Cover. Then, remove the Wing Nut which secures
the Outer Element and remove the Outer Element from
the Housing. Next, remove the Wing Nut which se-
cures the Inner Element and remove the Inner Element
from the Housing. To replace the Elements, reverse the
removal procedure. New
Outer
and
Inner
Elements
can be obtained by Gehl part numbers 087860 and
087859, respectively.
After the filter has been changed, reset the Indicator
by pushing in the reset button located on the
end
of
the
Indicator.
Fig. 37: Engine Components
1.
Radiator
Drain Cock Location
2.
Primary
Fuel Filter/Water
Trap
3. Battery
4. Hydraulic Oil
Strainer
Access Cover & Gauge
5.
Spin-on Hydraulic Filter
6.
Secondary Fuel Filter (located on Engine)
7. High Flow Case Drain Filter
(DX
only)
2
5
6
1
7
Fig. 38: Dual Element Air Cleaner
1. Air Cleaner Restriction Sensor Switch
2.
Element Housing & Inlet Assembly
3. Clamp
Band
& Tightener Eyebolt
4.
Inner
Filter Element
5. Wing Nut (2)
6. Element Cover
7.
Outer
Filter Element
59
