LUBRICATION LOCATIONS
Every 10 Hours (or daily)
1.
Grease Lift Arm Pivots
(2)
2.
Grease Lift Cylinder Pivots
(4)
3.
Grease Tilt Cylinder Pivots
(4)
4.
Grease Quick-Tach Pivots
(2)
5.
Check Engine Oil Level
6.
Check Hydraulic Oil Level
Every 100 Hours
7.
Grease T-Bar Pivots
(2)
8.
Change Engine Oil and Filter
9.
Check Oil Level
in
Chaincases
10.
Check Planetary Gearcase Oil Level
Every 500 Hours (Or Annually)
11.
Grease Axle Bearings (4)*
12.
Change Hydraulic Oil
l3. Change Chaincase Oil
* Remove Wheels for access to Fittings
See the Service
Chapter
of this Manual for
further
details

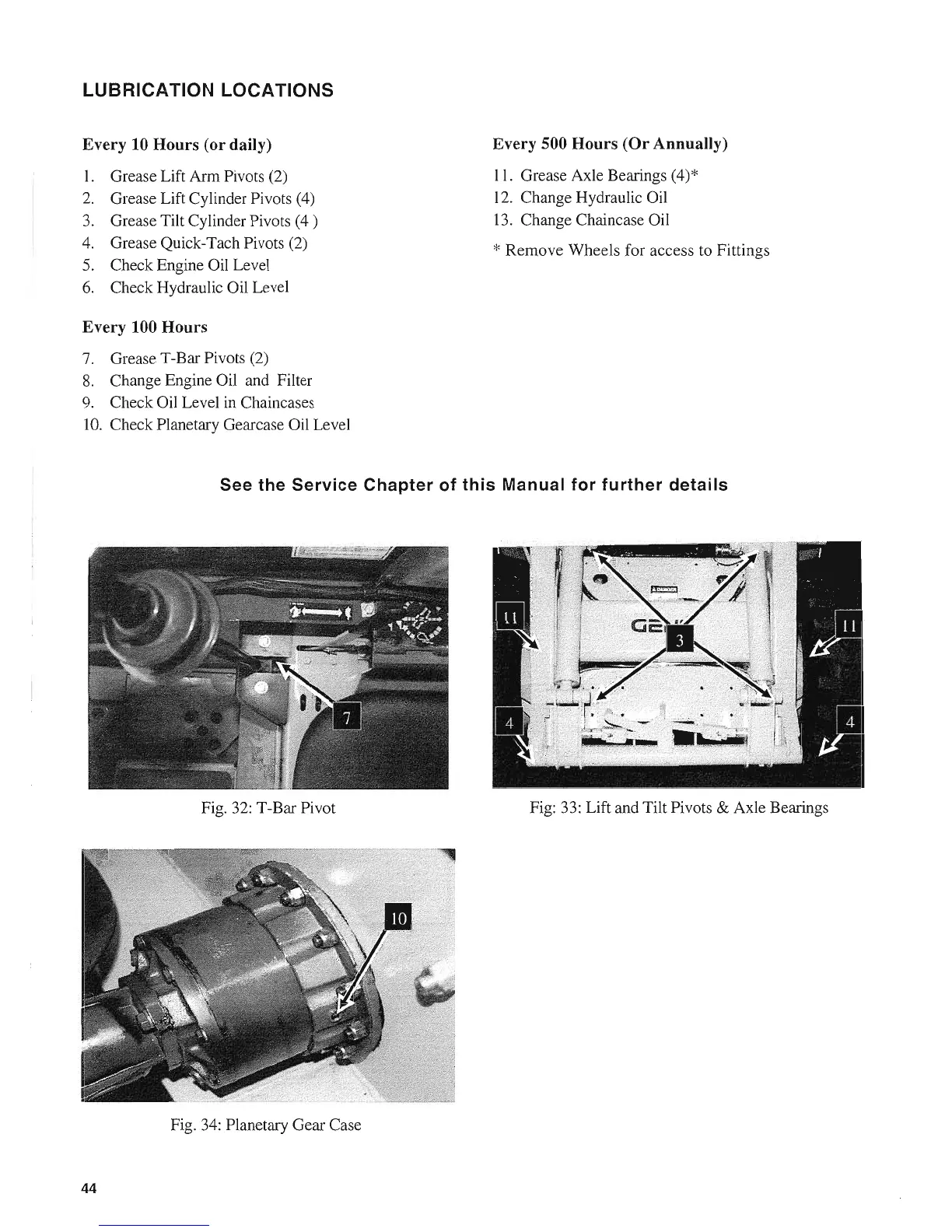

Fig.
32:
T-Bar Pivot
Fig.
34:
Planetary Gear Case
