AWARNING
BEFORE
leaving
the
Operator's
Compartment
to
work
around the
outside
of
the
Loader
with
the
Lift Arm
raised,
ALWAYS
engage
the
Lift
Cylinder
Mechanical Lock. Also, turn
the
Keyswitch
to
the
Off position, remove the Key and
take
it with you.
Lock Engagement
To engage the Lift Cylinder Mechanical Lock, proceed
as follows:
I. Apply the Parking Brake.
2.
Lower the Lift Arm into contact with the Loader
Frame.
3.
Turn the Keyswitch to the
Off
position to Stop the
Engine, remove the Key and take it with you.
4.
Leave the Operator's Compartment and remove
the Lock Pin which holds the Lock up against the
Lift Arm. Allow the Lock to come down into
contact with the Lift Cylinder.
5.
Return to the Operator's Compartment and restart
the Engine.
6.
Move the Lift Control to raise the Lift
Arm
until
the Lock drops over the end
of
the Lift Cylinder
and around the Cylinder Rod. Then, slowly lower
the Lift Arm until the free-end
of
the Lock contacts
the top end
of
the Lift Cylinder.
7.
Look to make sure that the Lock is secure against
the Cylinder End. Then, stop the Loader Engine
and leave the Operator's Compartment.
Jt"11

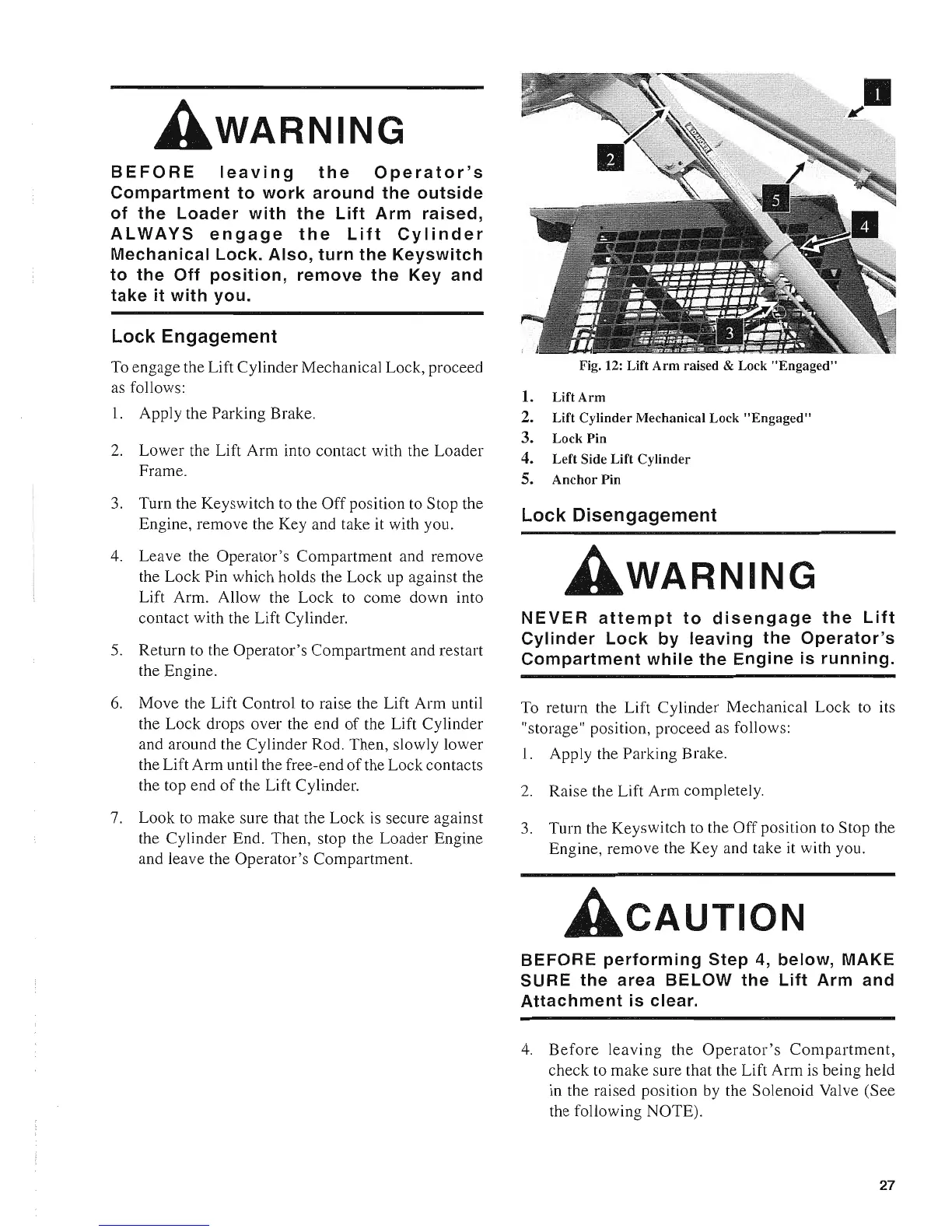

Fig. 12: Lift
Arm
raised & Lock
"Engaged"
1.
LiftArm
2. Lift Cylinder Mechanical Lock
"Engaged"
3. Lock Pin
4. Left Side Lift Cylinder
5.
Anchor
Pin
Lock Disengagement
WARNING
NEVER
attempt
to
disengage
the
Lift
Cylinder
Lock by leaving
the
Operator's
Compartment
while
the
Engine is running.
To return the Lift Cylinder Mechanical
Lock
to its
"storage" position, proceed as follows:
1.
Apply the Parking Brake.
2.
Raise the Lift Arm completely.
3.
Turn the Keyswitch to the
Off
position to Stop the
Engine, remove the Key and take it with you.
ACAUTION
BEFORE
performing
Step 4, below, MAKE
SURE
the
area BELOW the Lift Arm and
Attachment
is clear.
4.
Before
leaving
the
Operator's
Compartment,
check to make sure that the Lift Arm is being held
in the raised position by the Solenoid Valve (See
the following NOTE).
27
