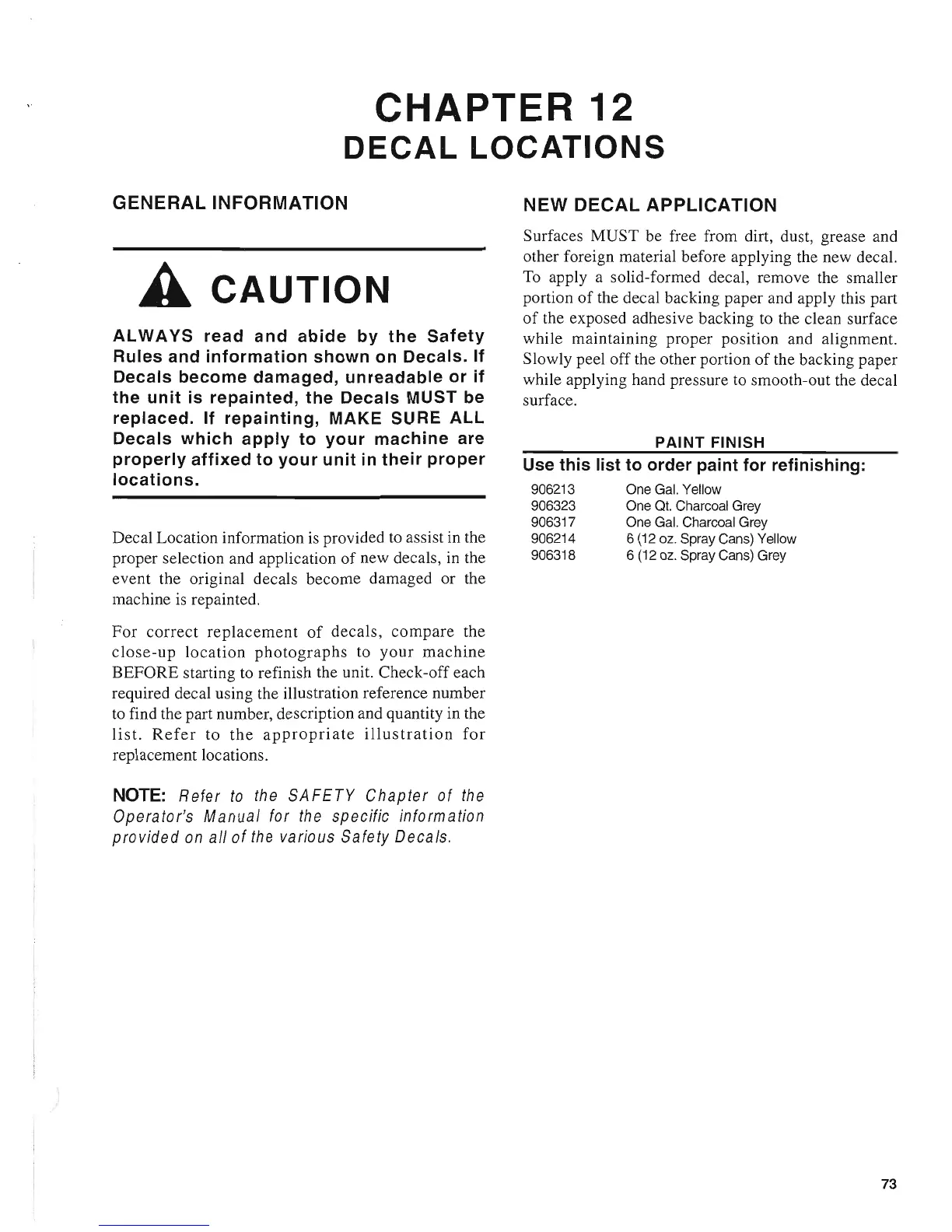

CHAPTER
12
DECAL
LOCATIONS
GENERAL INFORMATION
A
CAUTION
ALWA
YS read and
abide
by
the
Safety
Rules and information shown
on
Decals. If
Decals become damaged, unreadable or if
the unit is repainted, the Decals MUST be
replaced. If repainting, MAKE SURE ALL
Decals which apply to your machine are
properly affixed to your unit in their proper
locations.
Decal Location information
is
provided
to
assist in the
proper selection and application
of
new decals, in the
event the original decals become damaged or the
machine
is
repainted.
For
correct replacement
of
decals, compare the
close-up
location
photographs
to
your
machine
BEFORE starting to refinish the unit. Check-off each
required decal using the illustration reference number
to find the part number, description and quantity in the
list.
Refer
to
the
appropriate
illustration
for
replacement locations.
NOTE:
Refer
to
the
SAFETY Chapter of
the
Operator's Manual for
the
specific information
provided
on
all of
the
various Safety Decals.
NEW DECAL APPLICATION
Surfaces MUST be free from dirt, dust, grease and
other foreign material before applying the new decal.
To
apply a solid-formed decal, remove the smaller
portion
of
the decal backing paper and apply this part
of
the exposed adhesive backing
to
the clean surface
while maintaining proper position and alignment.
Slowly peel off the other portion
of
the backing paper
while applying hand pressure to smooth-out the decal
surface.
PAINT
FINISH
Use this list to order paint for refinishing:
906213
906323
906317
906214
906318
One Gal. Yellow
One
at.
Charcoal Grey
One Gal. Charcoal Grey
6 (12 oz. Spray Cans) Yellow
6 (12 oz. Spray Cans) Grey
73
To Next Page
