CHANGING ATTACHMENTS (Fig. 19)
WARNING
To prevent unexpected Attachment
release from the Lift Arm, BE SURE to
properly secure the Quick-Tach
Mechanism Lock Pins by rotating the
Latch Lever all the way to the left.
The Skid Loader features a Quick-Tach Latching and
Locking Mechanism for mounting an Attachment to
the front
of the Lift Arm. The Quick-Tach mechanism
uses a single Latch Lever control for attaching and
detaching the Attachment.
Attaching
l. Rotate the Latch Lever completely to the right (as
viewed from the Operator's Compartment) to fully
retract the Latchpins.
2. Start the Loader Engine and make sure the Lift
Arm is lowered and in contact with the Loader
Frame.
3. Align the Loader squarely with the back of the
Attachment.
4. Roll the Quick-Tach mechanism forward until the
mating parts
of the mechanism are in-line with and
slightly below the Hooks on the back
of the At-
tachment.
5. Slowly drive the Loader forward and, at the same
time, roll the Quick-Tach mechanism back to en-
gage the Hooks on the Attachment.
6. Stop forward travel when the Hooks are engaged
but, continue to roll the Quick-Tach mechanism
back to pick the Attachment up
off the ground.
Exercise the
MANDATORY SAFETY SHUT-
DOWN PROCEDURE (page 10).
7. With the Loader Engine OFF, leave the Operator's
Compartment, and swing the Latch Lever com-
pletely to the left (as viewed from the Operator's
Compartment) to fully engage the Latchpins.
8. To check that the Attachment is properly installed,
apply down pressure to the Attachment prior to
operating.

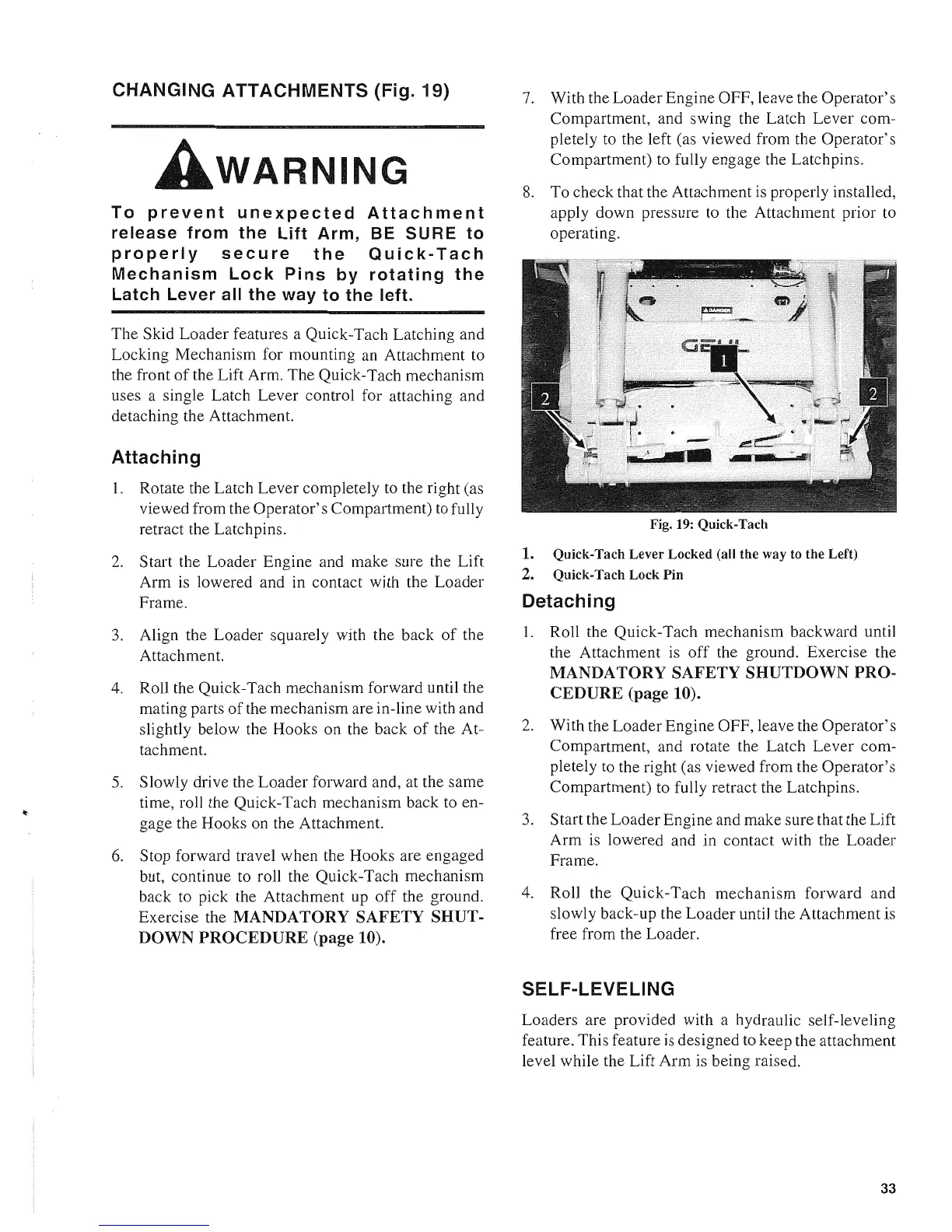

Fig. 19: Quick-Tach
1. Quick- Tach Lever Locked (all the way to the Left)
2. Quick- Tach Lock Pin
Detaching
l. Roll the Quick-Tach mechanism backward until
the Attachment is off the ground. Exercise the
MANDATORY SAFETY SHUTDOWN PRO-
CEDURE (page 10).
2. With the Loader Engine OFF, leave the Operator's
Compartment, and rotate the Latch Lever com-
pletely to the right (as viewed from the Operator's
Compartment) to fully retract the Latchpins.
3. Start the Loader Engine and make sure that the Lift
Arm is lowered and in contact with the Loader
Frame.
4. Roll the Quick-Tach mechanism forward and
slowly back-up the Loader until the Attachment is
free from the Loader.
SELF-LEVELING
Loaders are provided with a hydraulic self-leveling
feature. This feature is designed to keep the attachment
level while the Lift
Arm is being raised.
33
