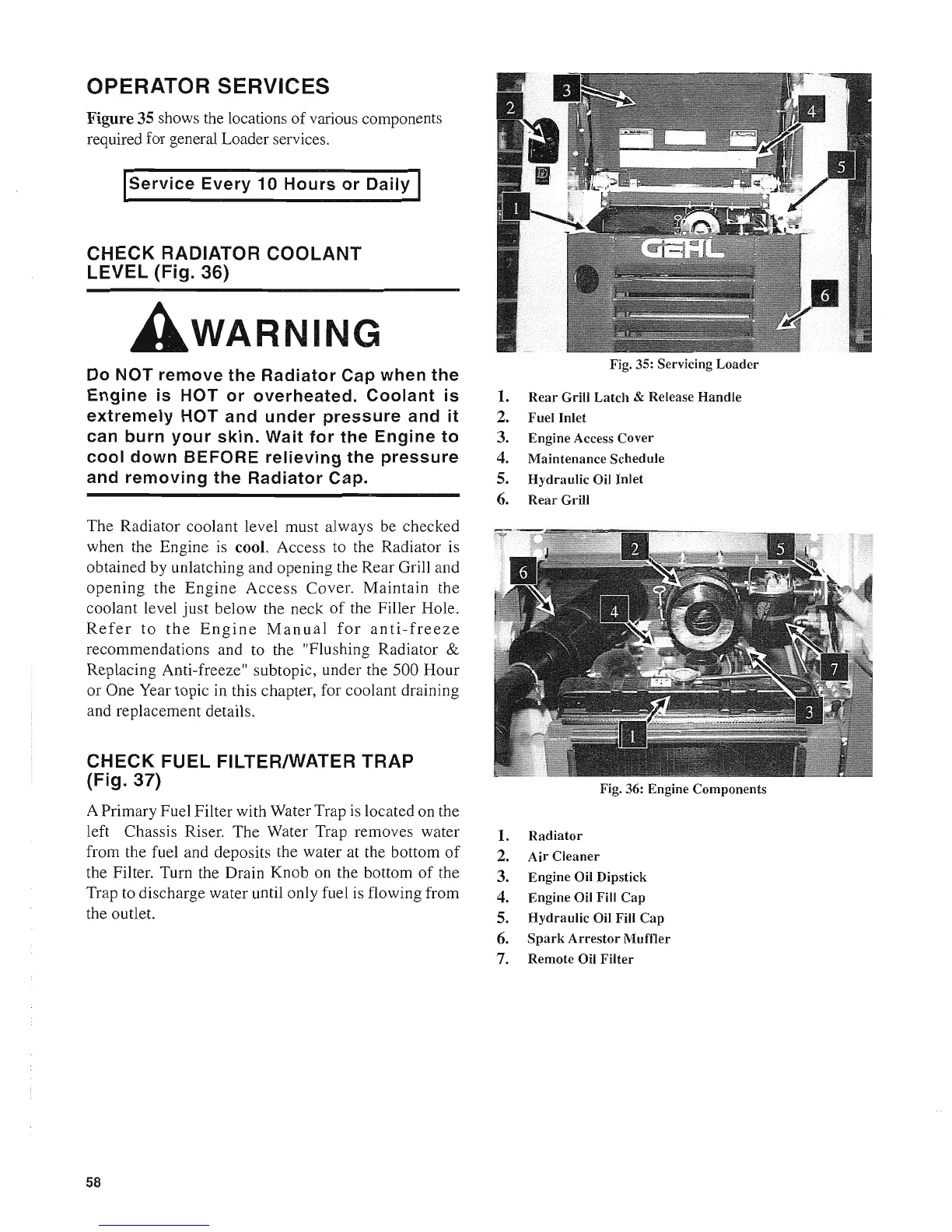

OPERATOR SERVICES
Figure
35 shows the locations
of
various components
required for general Loader services.
IService
Every
10
Hours
or
Daily
I
CHECK
RADIATOR
COOLANT
LEVEL
(Fig. 36)
AWARNING
Do NOT
remove
the
Radiator
Cap
when
the
Engine
is
HOT
or
overheated.
Coolant
is
extremely
HOT
and
under
pressure
and
it
can
burn
your
skin.
Wait
for
the
Engine
to
cool
down
BEFORE
relieving
the
pressure
and
removing
the
Radiator
Cap.
The Radiator coolant level must always be checked
when the Engine is cool. Access to the Radiator is
obtained by unlatching and opening the Rear Grill and
opening
the
Engine
Access
Cover.
Maintain
the
coolant level
just
below the neck
of
the Filler Hole.
Refer
to
the
Engine
Manual
for
anti-freeze
recommendations and to the "Flushing Radiator &
Replacing Anti-freeze" subtopic, under the 500 Hour
or One Year topic in this chapter, for coolant draining
and replacement details.
CHECK
FUEL FILTERIWATER
TRAP
(Fig. 37)
A Primary Fuel Filter with Water Trap is located on the
left Chassis Riser.
The
Water Trap removes water
from the fuel and deposits the water at the bottom
of
the Filter. Turn the Drain Knob on the bottom
of
the
Trap to discharge water until only fuel is flowing from
the outlet.
58
Fig. 35: Servicing Loader
1.
Rear
Grill Latch & Release Handle
2. Fuel Inlet
3. Engine Access Cover
4. Maintenance Schedule
5. Hydraulic Oil Inlet
6.
Rear
Grill
Fig. 36: Engine Components
1.
Radiator
2.
Air
Cleaner
3. Engine Oil Dipstick
4.
Engine Oil Fill
Cap
5. Hydraulic Oil Fill
Cap
6.
Spark
Arrestor
Muffler
7. Remote Oil Filter
