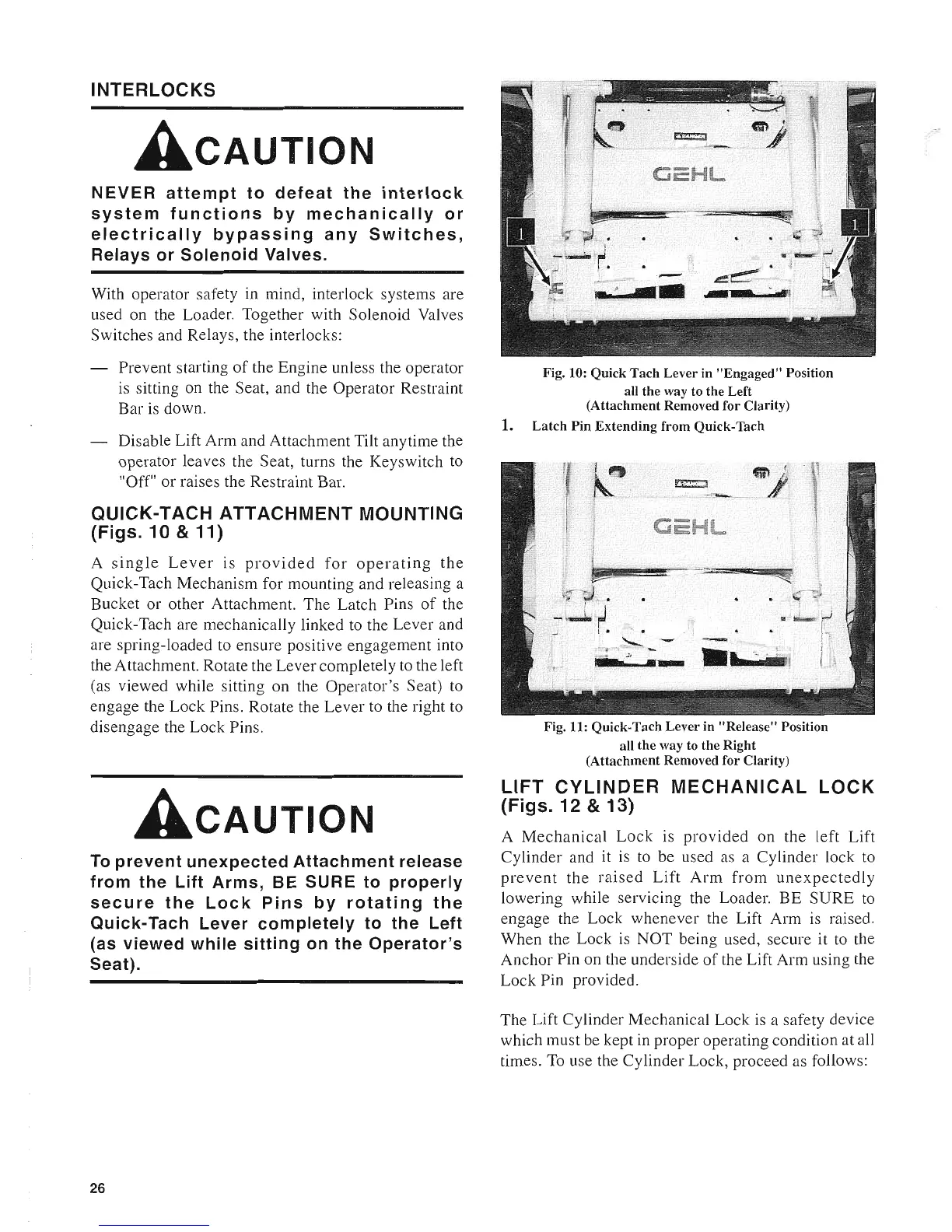

INTERLOCKS
ACAUTION
NEVER attempt to defeat the interlock
system functions by mechanically or
electrically bypassing any Switches,
Relays or Solenoid Valves.
With operator safety in mind, interlock systems are
used on the Loader. Together with Solenoid Valves
Switches and Relays, the interlocks:
Prevent starting
of the Engine unless the operator
is sitting on the Seat, and the Operator Restraint
Bar is down.
Disable Lift Arm and Attachment Tilt anytime the
operator leaves the Seat, turns the Keyswitch to
"Off" or raises the Restraint Bar.
QUICK-TACH ATTACHMENT MOUNTING
(Figs. 10
& 11)
A single Lever is provided for operating the
Quick-Tach Mechanism for mounting and releasing a
Bucket or other Attachment. The Latch Pins
of the
Quick-Tach are mechanically linked
to the Lever and
are spring-loaded to ensure positive engagement into
the Attachment. Rotate the Lever completely to the left
(as viewed while sitting on the Operator's Seat) to
engage the Lock Pins. Rotate the Lever to the right to
disengage the Lock Pins.
ACAUTION
To prevent unexpected Attachment release
from the Lift Arms, BE SURE to properly
secure the Lock Pins by rotating the
Quick-Tach Lever completely to the Left
(as viewed while sitting on
the Operator's
Seat).
26
1.
Fig. 10: Quick Tach Lever in "Engaged" Position
all the way to the Left
(Attachment Removed for Clarity)
Latch Pin Extending from Quick-Tach
! • •
"-
_~' 411'_ .In· mi
Fig. 11: Quick-Tach Lever in "Release" Position
all the way to the Right
(Attachment Removed for Clarity)
LIFT CYLINDER MECHANICAL LOCK
(Figs. 12 & 13)
A Mechanical Lock is provided on the left Lift
Cylinder and it is to be used as a Cylinder lock to
prevent the raised Lift Arm from unexpectedly
lowering while servicing the Loader. BE SURE to
engage the Lock whenever the Lift Arm
is raised.
When the Lock
is NOT being used, secure it to the
Anchor Pin on the underside
of the Lift Arm using the
Lock Pin provided.
The Lift Cylinder Mechanical Lock is a safety device
which must be kept in proper operating condition at all
times. To use the Cylinder Lock, proceed as follows:
