• 7 Digital Signal Processor

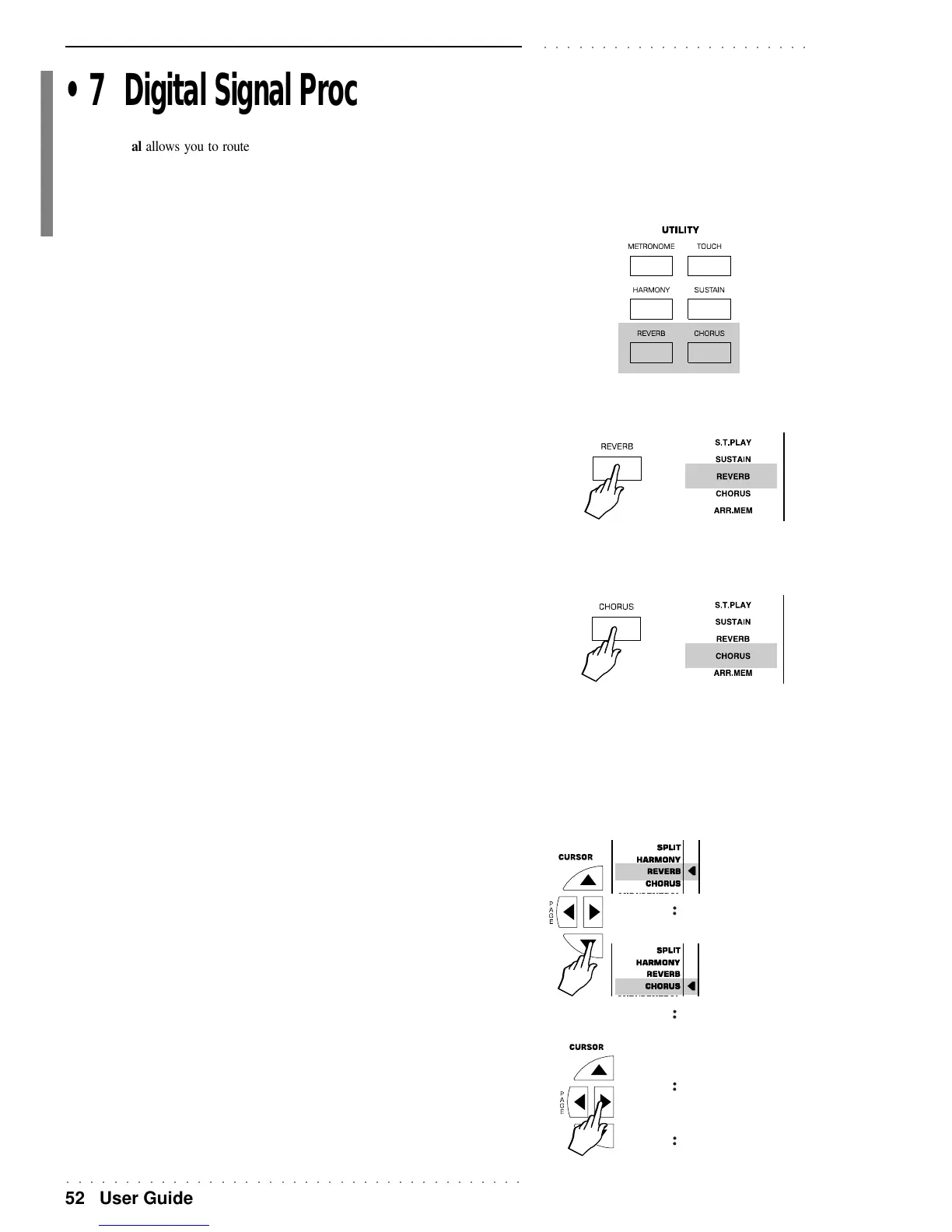

PK5 Oriental allows you to route the Performances (Style/RealTime and Song Style
Performances) to the on-board multi-effects processor which renders the overall sound
more realistic.
The Digital Signal Processor section consists of two units which process the Perform-
ances with Reverbs and Delay/Modulation effects.
Each processor has an effects Send control to independently regulate the level (amount)
of the effect for each track of the current Performance.
Also available is the Effect Lock function which locks the current Effects selection (Reverb
and Chorus) for all changes of Performance, Style and Song Style. The EFF LOCK
function is set in MIDI/GENERAL.
The buttons which control the DSP are in the UTILITY section:
REVERB
When active (corresponding display indicator on), the current Performance is processed
the type of reverb effect assigned to the Reverb DSP unit. The overall processed (‘wet’)
sound can be heard over the internal speakers and delivered from the stereo Aux Out.
When deactivated, (display indicator off), the sound is not processed by the DSP (deliv-
ered ‘dry’).
CHORUS
When active (corresponding display indicator on), the current Performance is processed
the type of modulating effect assigned to the Chorus DSP unit. The overall processed
(‘wet’) sound can be heard over the internal speakers and delivered from the stereo Aux
Out.
When deactivated, (display indicator off), the sound is not processed by the DSP (deliv-
ered ‘dry’).
Assigning the effect types
Regardless of the current mode (Style/Real Time, Song Style), the method used to select
and assign the effects to the current Performance is identical.
HOW TO SELECT THE EFFECT TYPES
1. Press the Cursor buttons as many times as necessary until the arrowhead to the left of the display is
next to the REVERB or CHORUS menu function.
The display shows the effect type currently selected to the Performance.
You can also activate the REVERB or CHORUS function by holding the corresponding
button pressed for about 2 seconds.
2. Use the PAGE buttons to assign a different effect type to the selected DSP.
This operation allows you to scroll through the 22 effects available in both DSP units.
You can select an effect in both DSP units.
Hall 1 > I00
Chorus1> I00
Chorus2> I00
Hall 2 > I00
