- 116 -

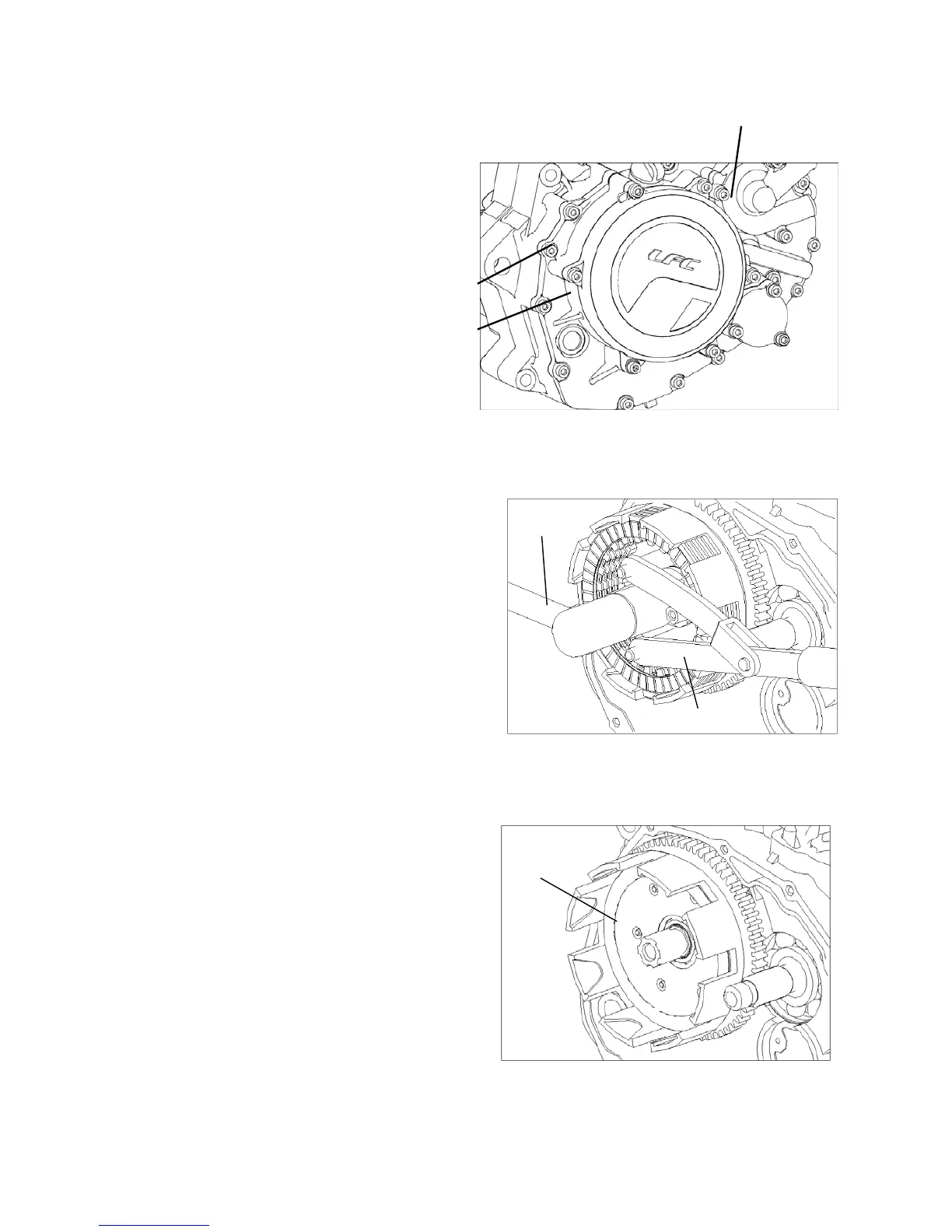

Disassemble the right cover of the crankcase
Loosen the fastening bolts to remove the
right cover of the crankcase, gasket and
locating pin.
13.4 Clutch
Removal
Loosen the five bolts of the pressure plate according to
the diagonal cross mode.
Remove the clutch springs, spring washers, pressure
plate, bearing washer, surface needle roller bearing and
bearing pedestal, clutch separation shaft sleeve and so
on.
Use a special tool to screw off clutch locknut. Remove
locknut and washer.
Remove clutch center bracket.
Remove clutch drive and driven friction plates.
Removed components refer to exploded view.
Remove the thrust washer.
Remove housing assembly.
Install clutch in the reverse order of removal.
Right
cove
Bolt
Universal fixer
Socket
spanner
Housing
assembly
Starting engine
