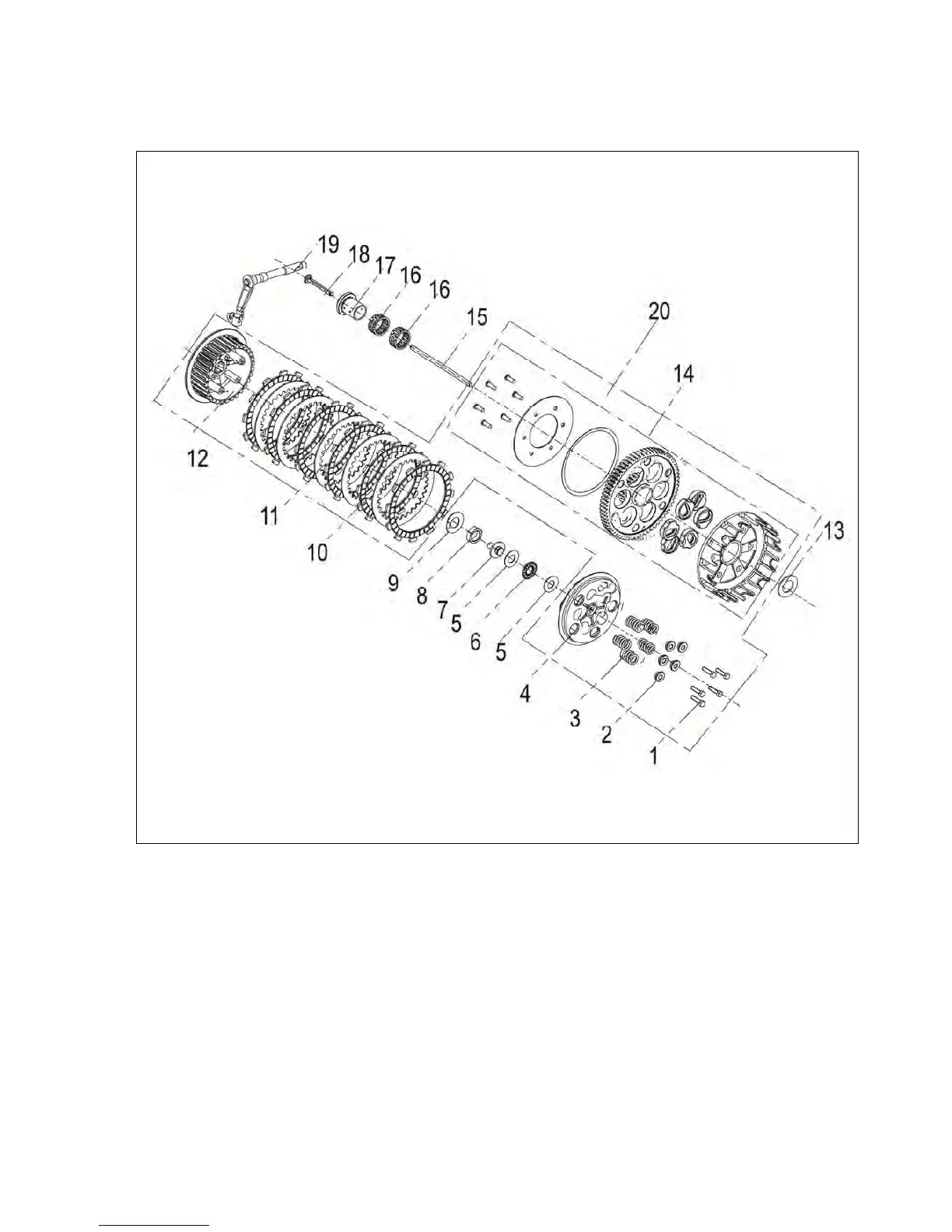

Disassemble Clutch
1 Bolt 2 Spring washer 3 Clutch spring 4 Pressure plate 5 Bearing washer 6 Surface needle bearing
7 Clutch separation shaft sleeve 8 Jam nut 9 Locking washer 10 Friction plate assembly 11 Driven
plate 12 Clutch driven hub 13 Thrust washer 14 Clutch driving drum assembly 15 Internal separation
mandrilǁ 16 Needle roller bearing 17 Bushing 18 Internal separation mandril︱ 19 Separation drag bar
weld assembly 20 Clutch assembly
