Applications Zoom | 107

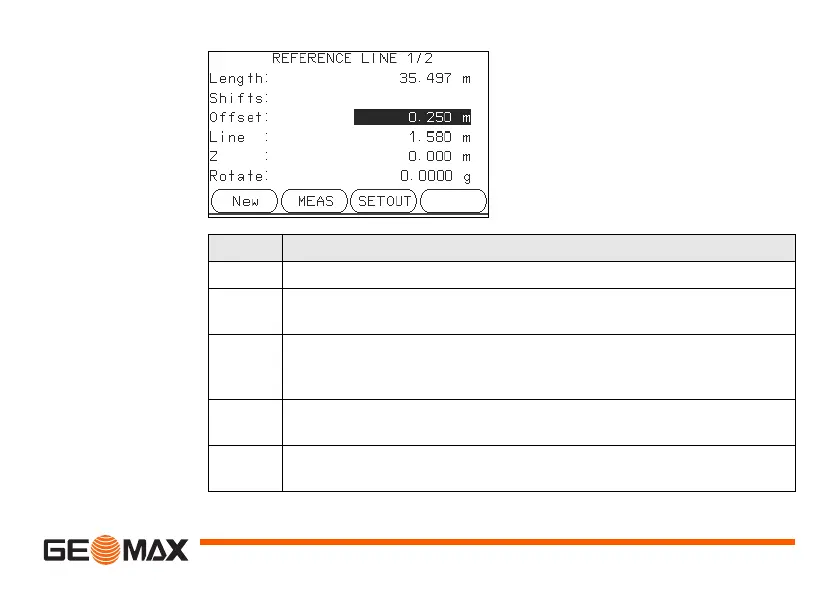

REFERENCE LINE
New
To define a new base line.
MEAS
To measure Line & Offset.
SETOUT
To set out points orthogonal to the
reference line.
Field Description
Length Length of the base line.
Offset Parallel offset of the reference line relative to the base line (P1-P2).
Positive values are to the right of the base line.
Line Longitudinal offset of the start point, reference point (P3), of the
reference line in the direction of base point 2.
Positive values are towards base point 2.
Z Height offset of the reference line to the selected reference height.
Positive values are higher than the selected reference height.
Rotate Rotation of the reference line clockwise around the reference point
(P3).
