GeoMax Zoom 30 series - Subapplication Measure Line & Offset

Applications Zoom | 109
9.3.4 Subapplication Measure Line & Offset

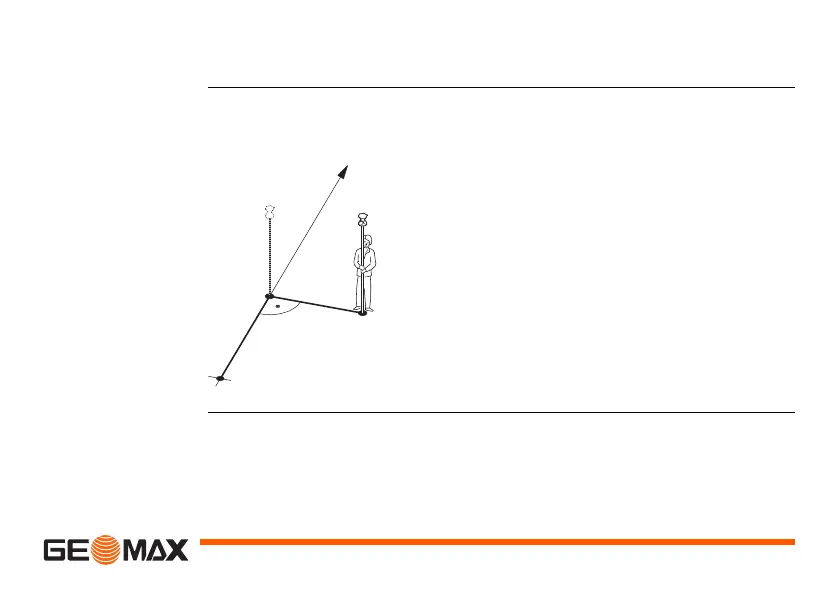

Description The Measure Line & Offset subapplication calculates from measurements or
coordinates, longitudinal offsets, parallel offsets and height differences of the
target point relative to the reference line.
RL Reference line
1RP Start point
MP Measured point
dL Longitudinal offset
dOff Parallel offset
1RP
MP
RL
d L+
d Off+
