GeoMax Zoom 30 series User Manual

Operation Zoom | 31

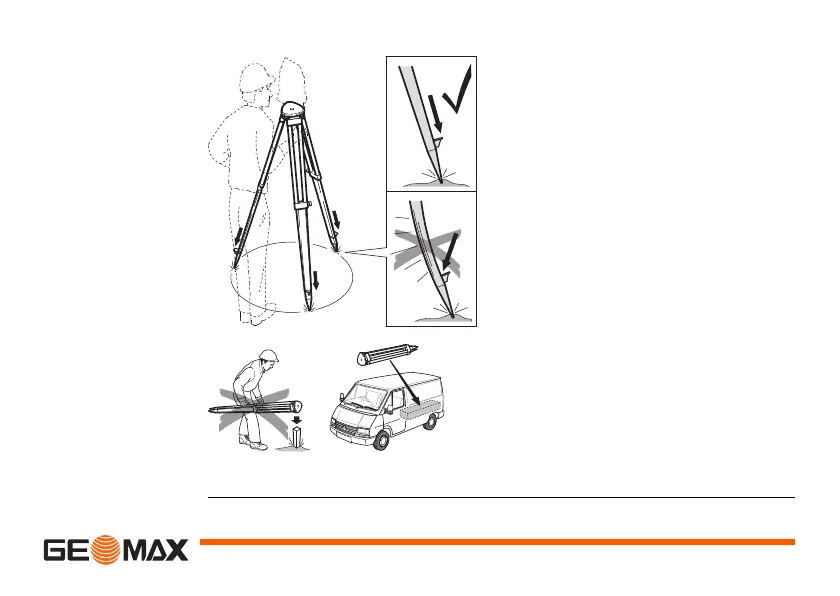

Loosen the clamping screws on the
tripod legs, pull out to the required
length and tighten the clamps.
a) In order to guarantee a firm foothold
sufficiently press the tripod legs into
the ground.
b) When pressing the legs into the
ground note that the force must be
applied along the legs.
Careful handling of tripod.
• Check all screws and bolts for correct
fit.
• During transport always use the
cover supplied.
• Use the tripod only for surveying
tasks.
a
b
