6. Remove the motor mounting plate retaining bracket(s) (see Figure 3–5).

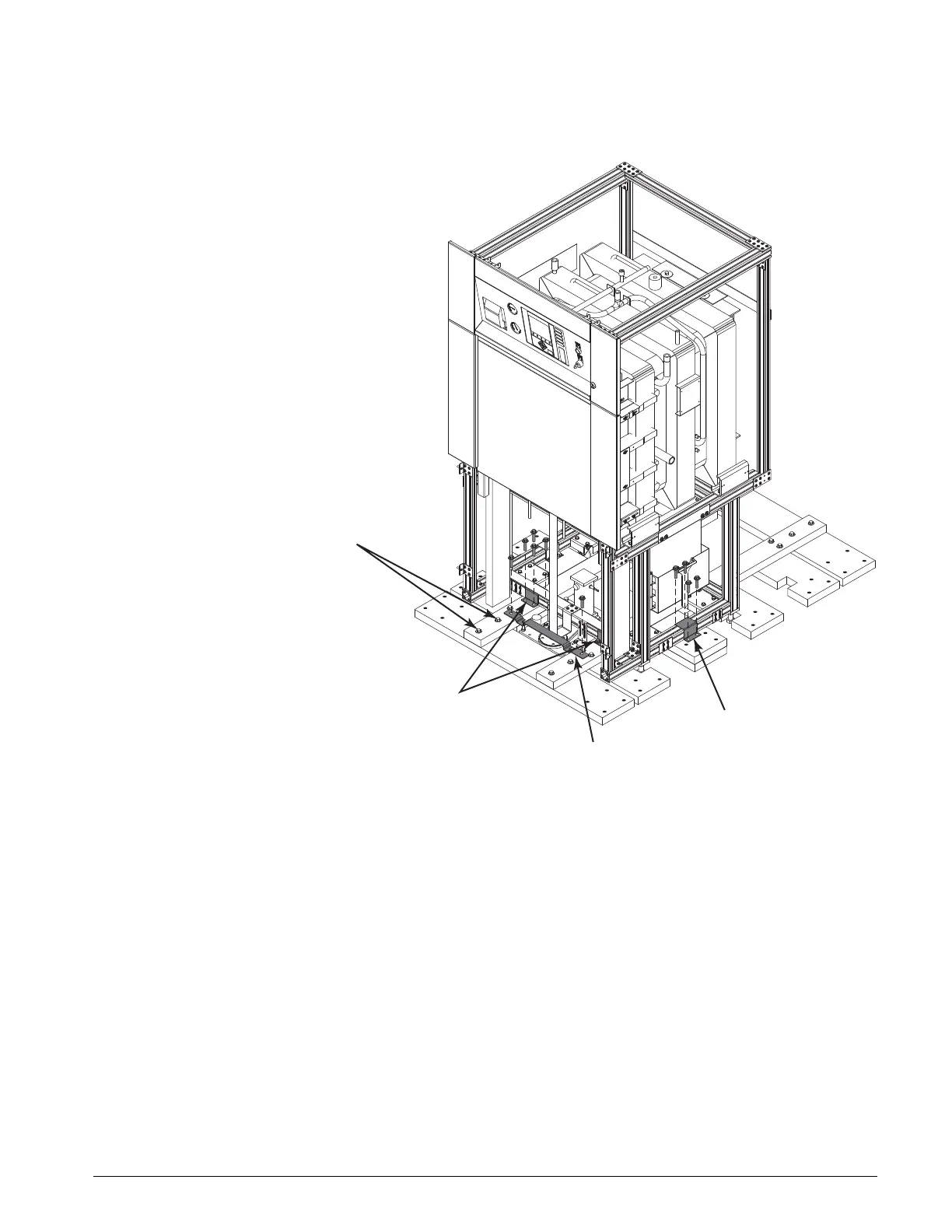

FIGURE 3–5. REMOVING THE RETAINING BRACKETS
7. Remove the front and back retaining brackets.
8. Remove the side retaining brackets.
9. Remove all the remaining skid hardware.
10. Disassemble and remove the rest of the shipping skid.
Side Retaining
Bracket (both sides)
Motor Plate
Retaining Bracket
Front/Back
Retaining Brackets
(both ends)
A07027-BJ
Remove all skid hardware
(16 places)
