Installation Instructions
4–6 INS 61301607027 Rev A US
NOTE
If a loading car and transfer carriage will be used to load goods in the
sterilizer, the tracks inside the chamber must match the height of the top
plate of the transfer carriage (see Figure 4–6 on page 4–6).
The standard height of the top plate of transfer carriages is 31.50 in. (800
mm) above the floor. Because a transfer carriage may be used with several
sterilizers, adjust the sterilizer height to match the transfer carriage.

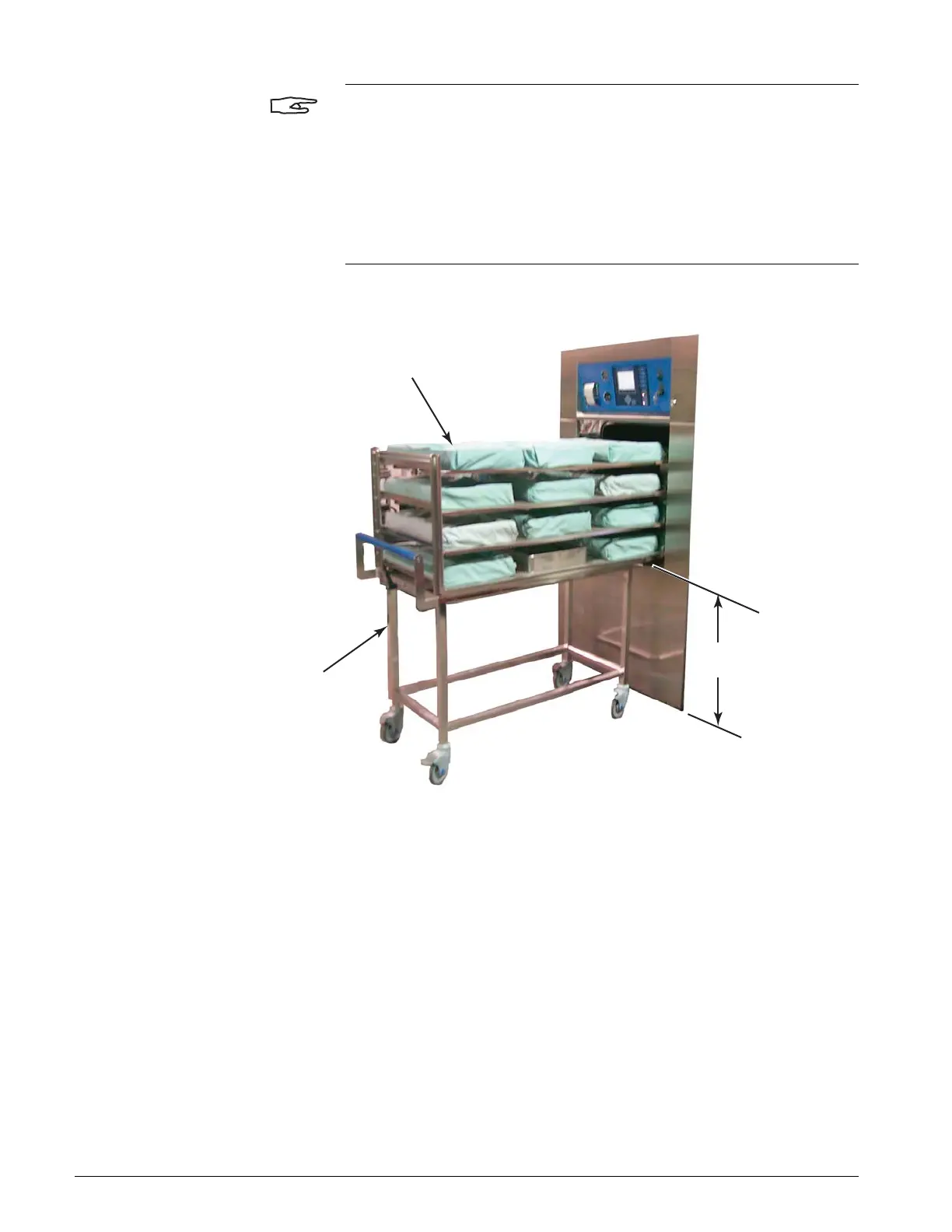

FIGURE 4–6. TRANSFER CARRIAGE HEIGHT
A07026-BR
Loading
Car
Transfer
Carriage
Finished Floor
31.50 in. (800 mm)
