Measured value screens
There are several screens for displaying currently measured values. User
can change them during measurement to observe either numeric values or graphic
information. The choice is done by pressing of “F” key together with one of “1–6”
key.
For screens with histograms the scale can be changed using “F” key
together with “arrow up/down” keys (for conductivity) or with “arrow left/right”
keys (for inphase).
For the screen with point map it is possible to change its scale using “F” key
together with “arrow up/down” keys and to rotate the map by 90° using “F” key
together with “arrow left/right” keys.
In continuous measuring modes the statistic deviation is replaced with the
number of measured point.

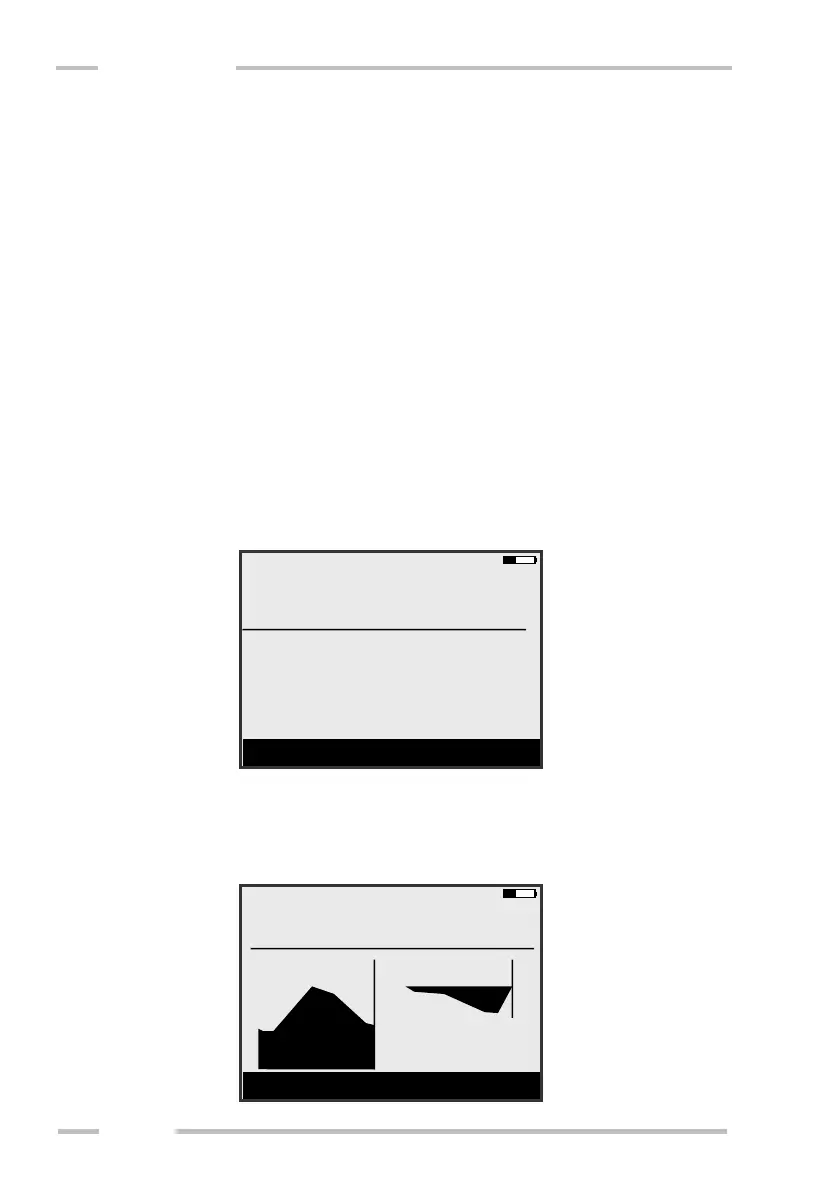

Window “F” + “1” shows position and measured values from one receiver.
Window “F” + “2” shows position, measured values and histograms of
measured values from one receiver. All measured values (including unsaved
values) are shown in histogram.
