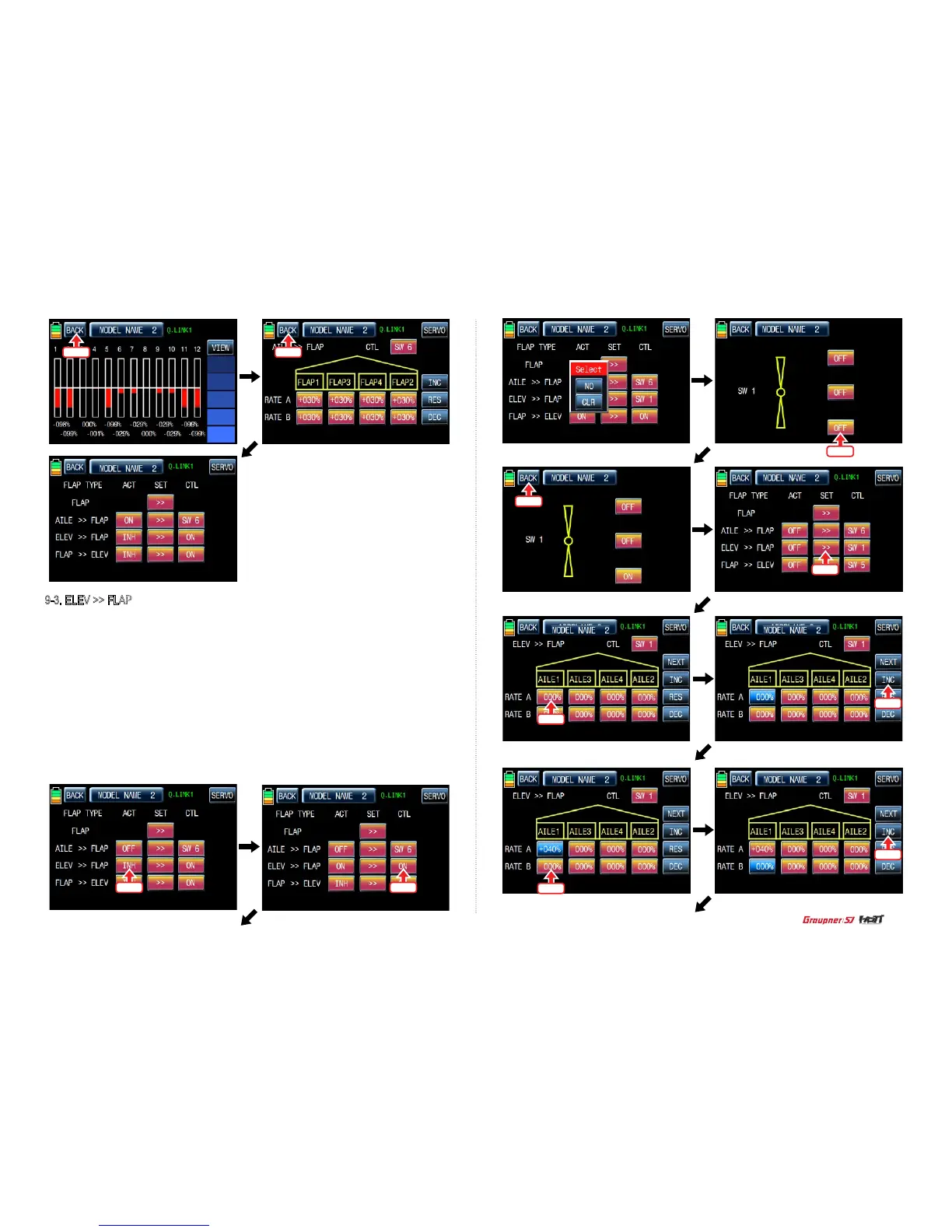

9-3. ELEV >> FLAP
This mixing creates more lift of airplane, allowing a tighter turn. The entire trailing edge of the
wing (aileron and ap) operates as aps when elevator is applied. Touch INH icon in ACT line
to switch to “ON” then ELEV >> FLAP is activated. Touch “ON” in CTL line to call the “Select”
message popup and move the switch or stick or volume with your choice then that switch or
stick or volume is designated as on/ off key and then the key direction setup page appears. You
may select ON or OFF by touching icons. When the key is moved to the direction of ON, the
function is operated. Touch “BACK” icon to return to FLAP MIX page. Touch “>>” icon in “SET”
and “ELEV >> FLAP” cross line to call “ELEV >> FLAP” setup page. You may call “ AILE” and
“FLAP” setup page with NEXT button in the top right. Touch and activate the values in blue and
adjust them with INC and DEC buttons. When the setup is completed, touch SERVO icon on
the top right to call SERVO page. You may check the setup value for “ELEV >> FLAP”.
Touch Touch
Touch Touch
Touch
Touch
Touch
Touch
Touch
Touch
Touch
91
