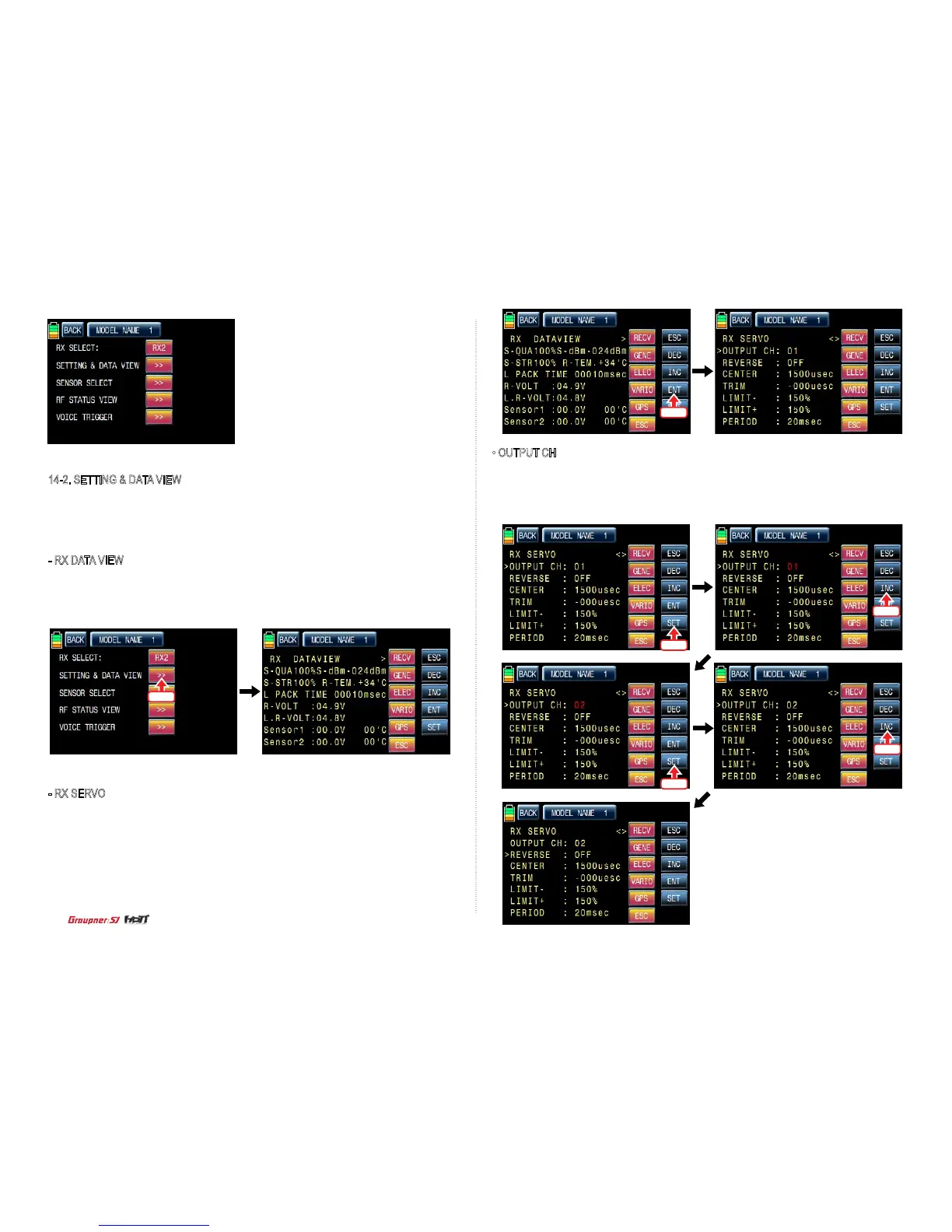

- RX SERVO
The servo functions, “REVERSE”, “CENTER”, “TRIM”,” LIMIT-“, LIMIT+, and “PERIOD”, can be
programmed throughout receiver when servo is connected to each channel of receiver.
In “RX DATA VIEW” page, touch “ENT” icon to call RX SERVO page. You may move the cursor “>”
to other category with INC button and select the category that you want to program. After deciding
the desired category, touch “SET” icon to activate in red and adjust the value with INC and DEC
buttons.
OUTPUT CH
The receiver’s out channel is programmed in OUTPUT CH line. Touch “SET” icon to activate
the value in red and select the desired channel with INC and DEC buttons. Touch “SET” icon
again to deactivate the value and touch INC button to move the cursor to “Reverse”.
Touch
Touch
Touch
Touch
Touch
Touch
54
14-2. SETTING & DATA VIEW
It is used to program or check telemetry data of a receiver and telemetry sensors. Only if
transmitter and receiver are bound, SETTING & DATA VIEW function is activated. Touch “>>”
icon in the telemetry setup page to call “RX DATA VIEW” setup page
- RX DATA VIEW
You may check telemetry data of a receiver in this page. Touch “ENT” icon to access to the
next function, “RX SERVO” page.
