Touch

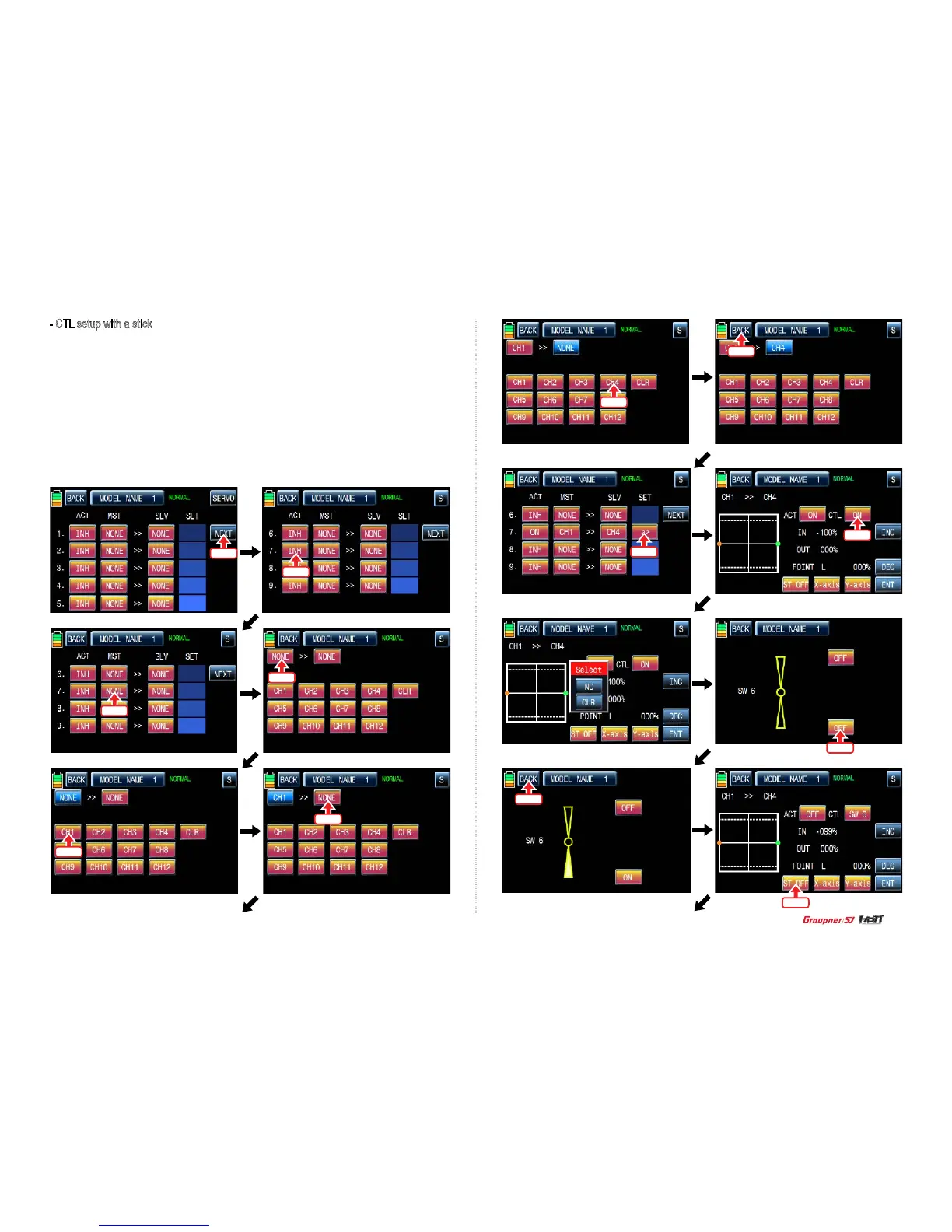

- CTL setup with a stick

Hoping that you would refer the explanation as explained above

Here, you need to set the operation value, “L” and “H” points are set by default and you need

to mark 5 points between “L” and “H” on graph rst and then adjust the operation curve with

“DEC”, “INC”, X-axis and Y-axis buttons. Touch “ST OFF” icon to switch to “ST ON” then the

blue line appears on graph. Move throttle stick to place the line at the desired position then

touch “ENT” icon on the bottom right. Now the new point is marked in graph. You may set ve

points in your favorable position. Touch ST ON” to switch to “ST OFF” and complete the point

setup. Now touch “DEC” or “INC” button to select point and touch X-axis or Y-axis to activate

and then touch DEC” or “INC” button to adjust the operation curve.

Touch
