GDS-2000A Series User Manual
20

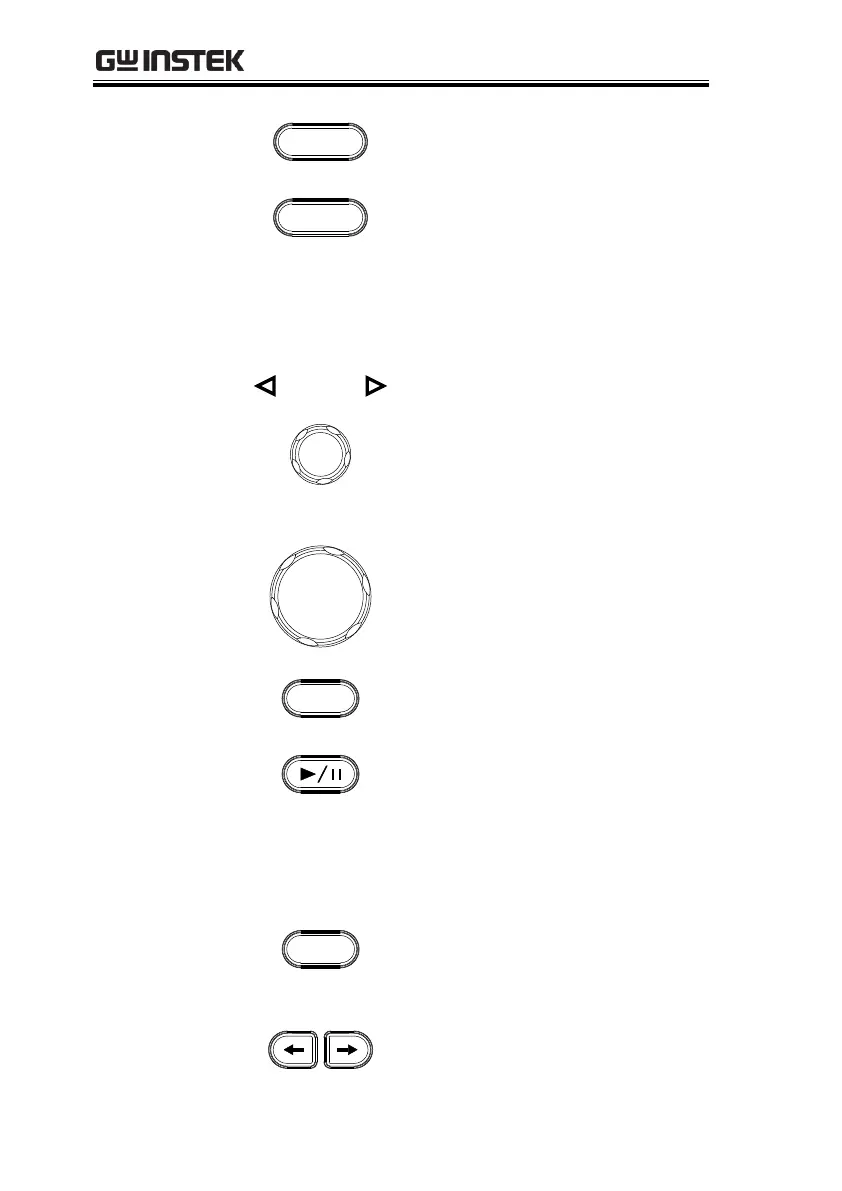

Sets the acquisition mode to single
triggering mode.
Resets the oscilloscope to the
default settings.
The horizontal controls are used to change the
position of the cursor, set the time base settings,
zoom into the waveforms and search for events*.
The Position knob is used to
position the waveforms
horizontally on the display screen.
The Time/Div knob is used to
change the horizontal scale.
Press Zoom in combination with
the horizontal Position knob.
The Play/Pause key allows you to
view each search event in
succession – to effectively “play”
through each search event. It is
also used to play through a
waveform in zoom mode.
The Search key accesses the search
function menu to set the search
type, source and threshold.
Use the arrow keys to navigate the
search events.
