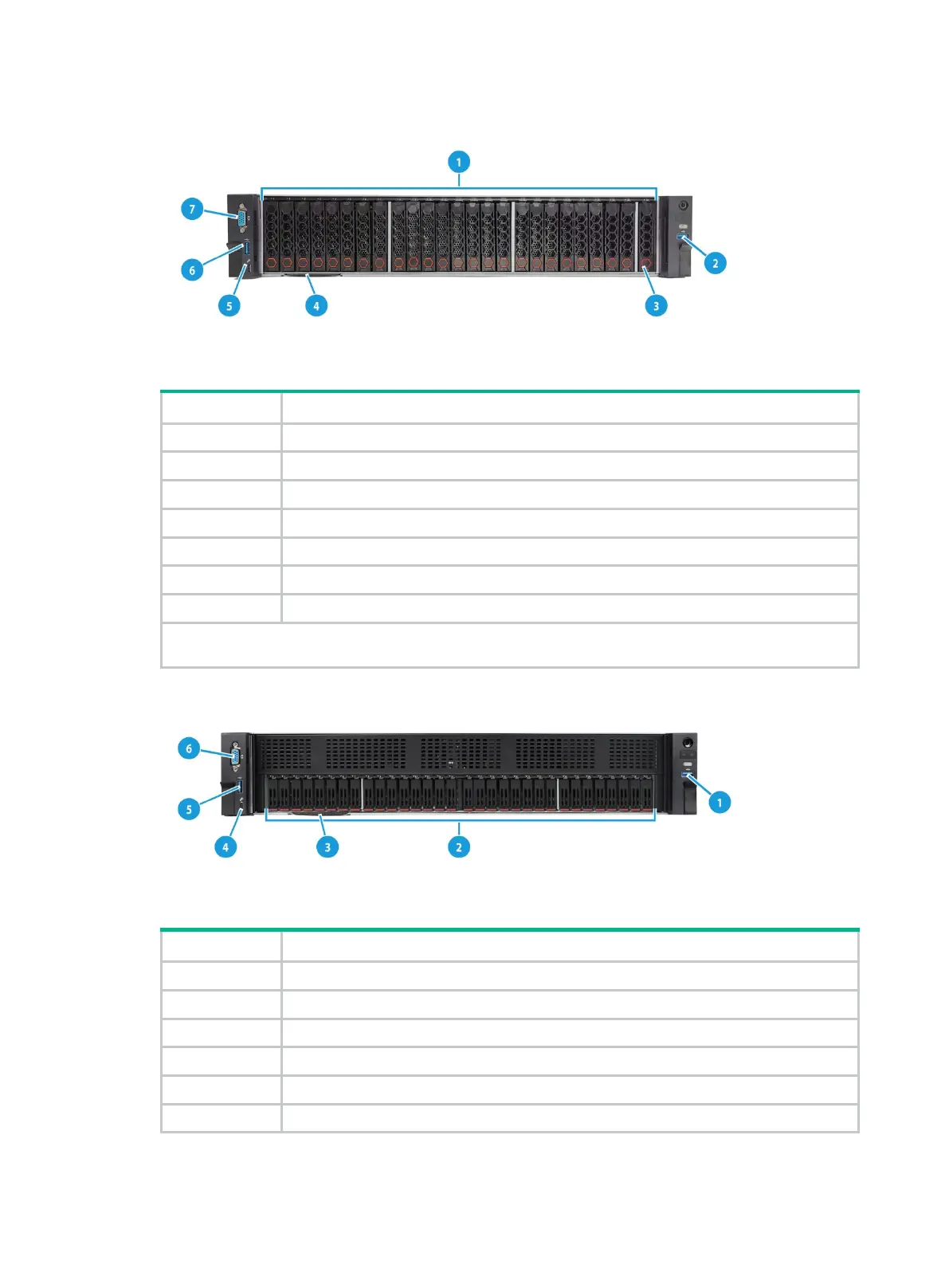

Figure 5 25SFF front panel
Table 4 25SFF front panel description
Item
Description
1 25SFF drives*
2 USB 3.0 connector
3 Drive or LCD mart management module (optional)
4 Serial label pull tab
5 Dedicated management connector
6
USB 2.0 connector
7 VGA connector
*: Drive types supported by the server vary by drive backplane configuration. For more information, see
"Drive backplanes."
Figure 6 32E1.S front panel
Table 5 32E1.S front panel description
Item
Description
1 USB 3.0 connector
2 32E1.S drives
3 Serial label pull tab
4
Dedicated management connector
5 USB 2.0 connector
6 VGA connector
