Quick Start
User’s Manual 5
“AUTOSET” button into the menu or the toolbar.
3. Check the shape of the displayed waveform.

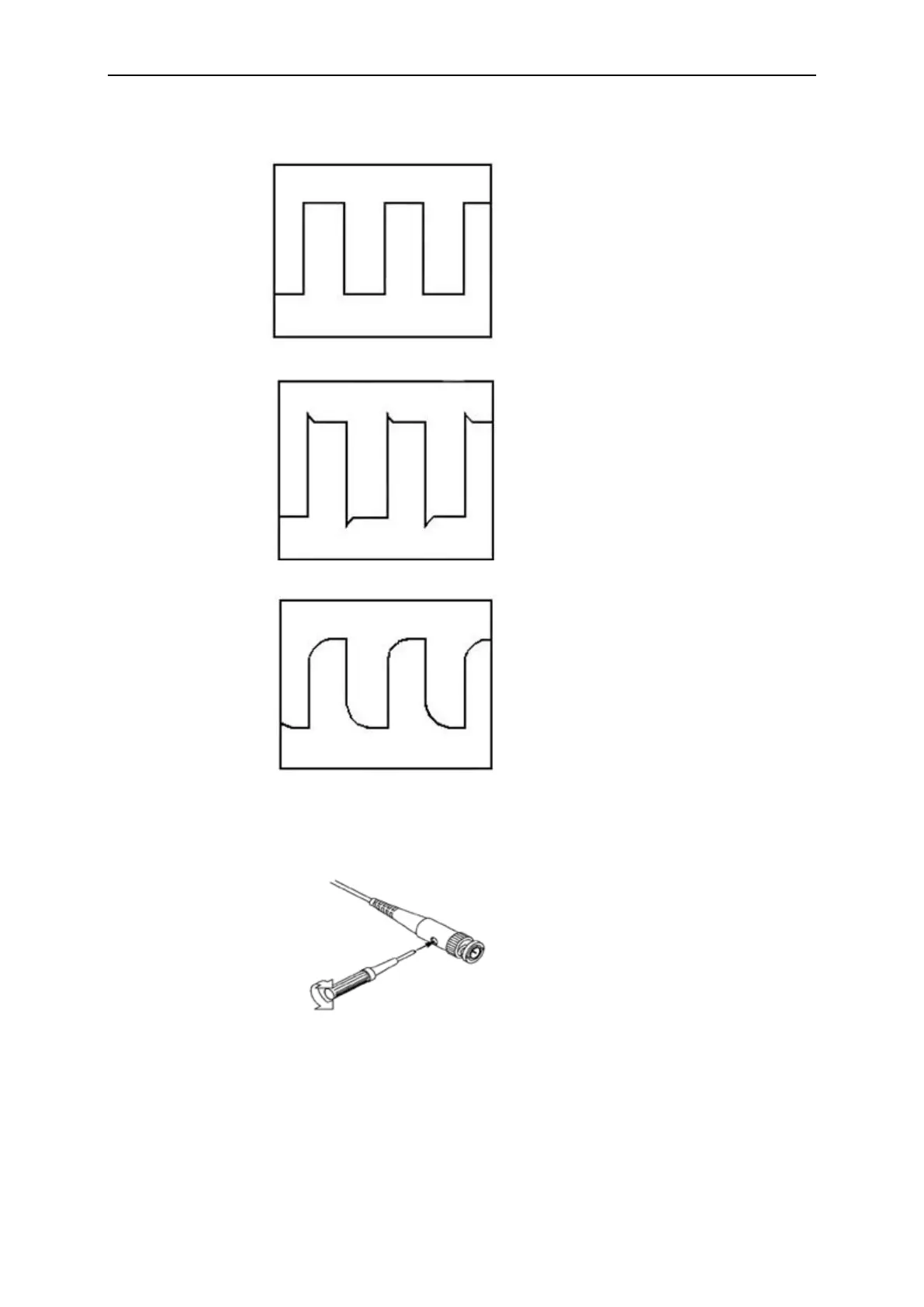

Correctly Compensated
Over compensated
Under Compensated
4. If necessary, use a non-metallic tool to adjust the trimmer capacitor of the probe for the
fattest square wave being displayed on the oscilloscope.
5. Repeat if necessary.
WARNNING: To avoid electric shock while using the probe, be sure the perfection of the insulated
cable, and do not touch the metallic portions of the probe head while it is connected with a voltage
source.
