User’s Manual 50
3.1 User Interface

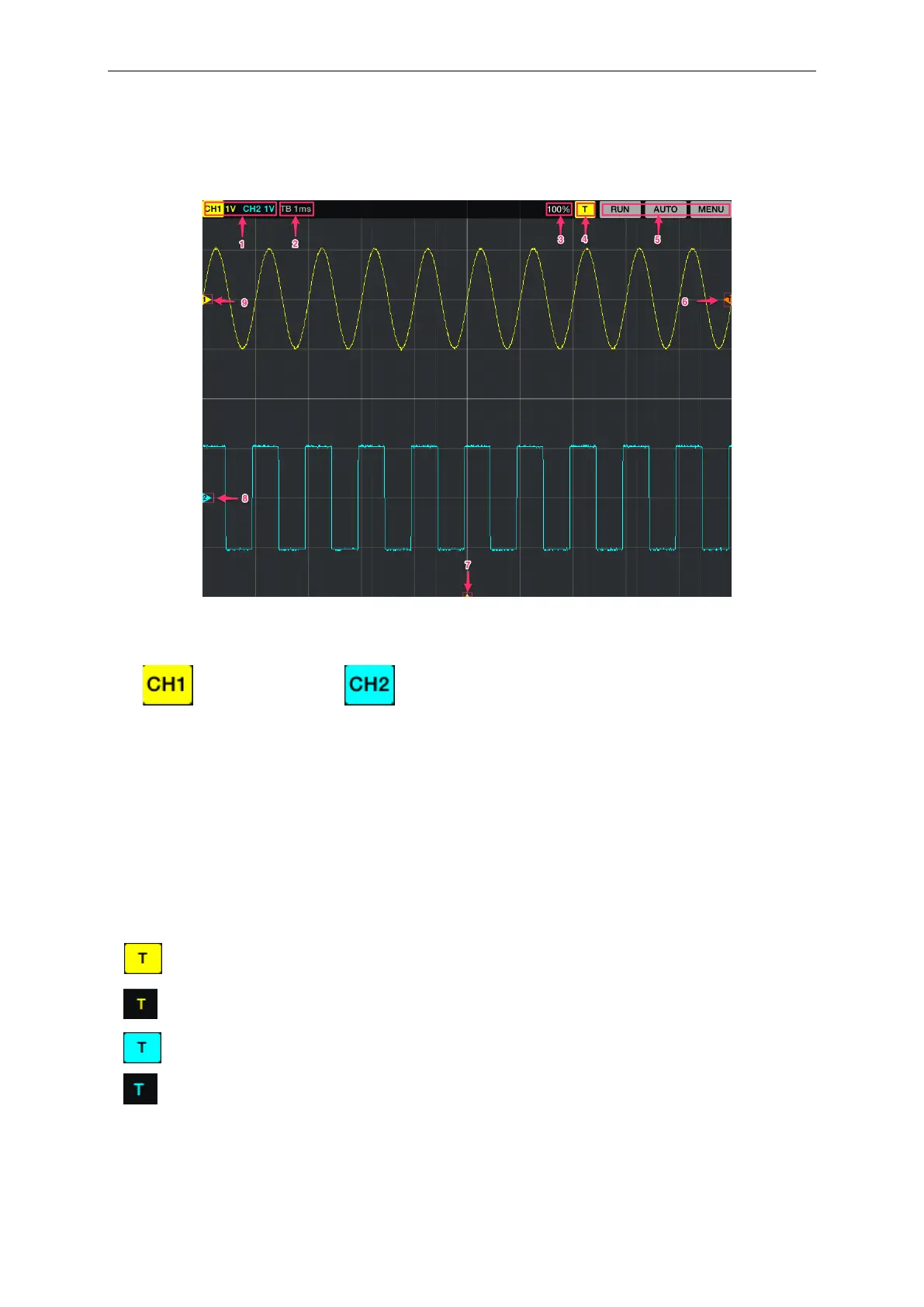

The user’s interface:
1. Channel information and Volt/Div
: CH1 is selected. : CH2 is selected.
If the channel is select, you can see yellow background of CH1 or blue background of CH2.
2. Time/DIV: lead the setting of the time base parameters
Select the time setting for the beam to sweep one major division on the screen. By selecting
different time/div settings it is possible to zoom in on the frozen waveform on the screen.
3. Battery level
4. Trigger State
5. Function menu
RUN: Run the application. Tap RUN menu again to stop it.
A signal is triggerred and trigger source is CH1.
A signal is not triggerred and trigger source is CH1.
A signal is triggerred and trigger source is CH2.
A signal is not triggerred and trigger source is CH2.
To Next Page
