PC Application
User’s Manual 32
Source: Selects the channel used as the FFT source
Window: Selects the FFT window type
The windows reduce spectral leakage in the FFT spectrum.
Scale: Selects the vertical scale units
Vertical: Selects the vertical scale
Horizontal: Selects the FFT zoom factor
Sets horizontal scale, If the information is more than the quantity displayed to the display window,
more information is displayed by using scroll bar.

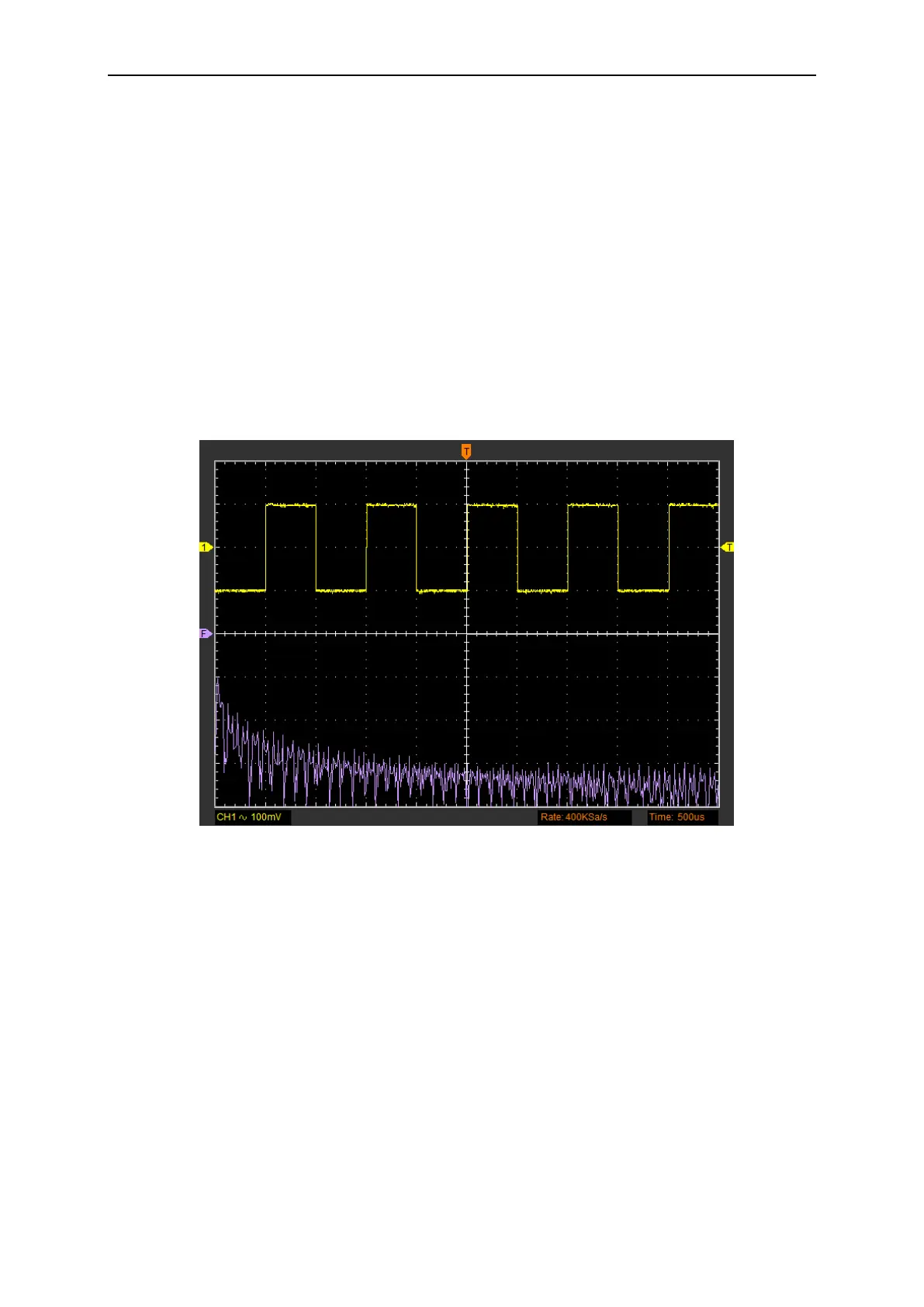

The FFT display Windows:
2.11 Save and Load
2.11.1 Save and load file
Click “File” in main menu to save data, setup and image.
1. Save Data
Save waveform data as .txt, .xls, .doc, .csv or .wms file.
2. Save Image
Save the software display window as a .bmp or .jpg file.
3. Load Data
Load waveform data as .wms file.
