1.6 Function Check
Perform this functional check to verify that your oscilloscope is operating correctly.
Connect the oscilloscope with PC, iOS or Android
1. Connect IDSO with PC via USB cable or Wi-Fi. Please refer to Connect IDSO with PC.
2. Connect IDSO with IOS via Wi-Fi. Please refer to Connect IDSO WITH APPLE.
3. Connect IDSO with Android via Wi-Fi. Please refer to Connect WITH Android.
Input a signal to a channel of the oscilloscope
The oscilloscope is equipped with two channels plus external trigger.
Please input signal in the following steps:

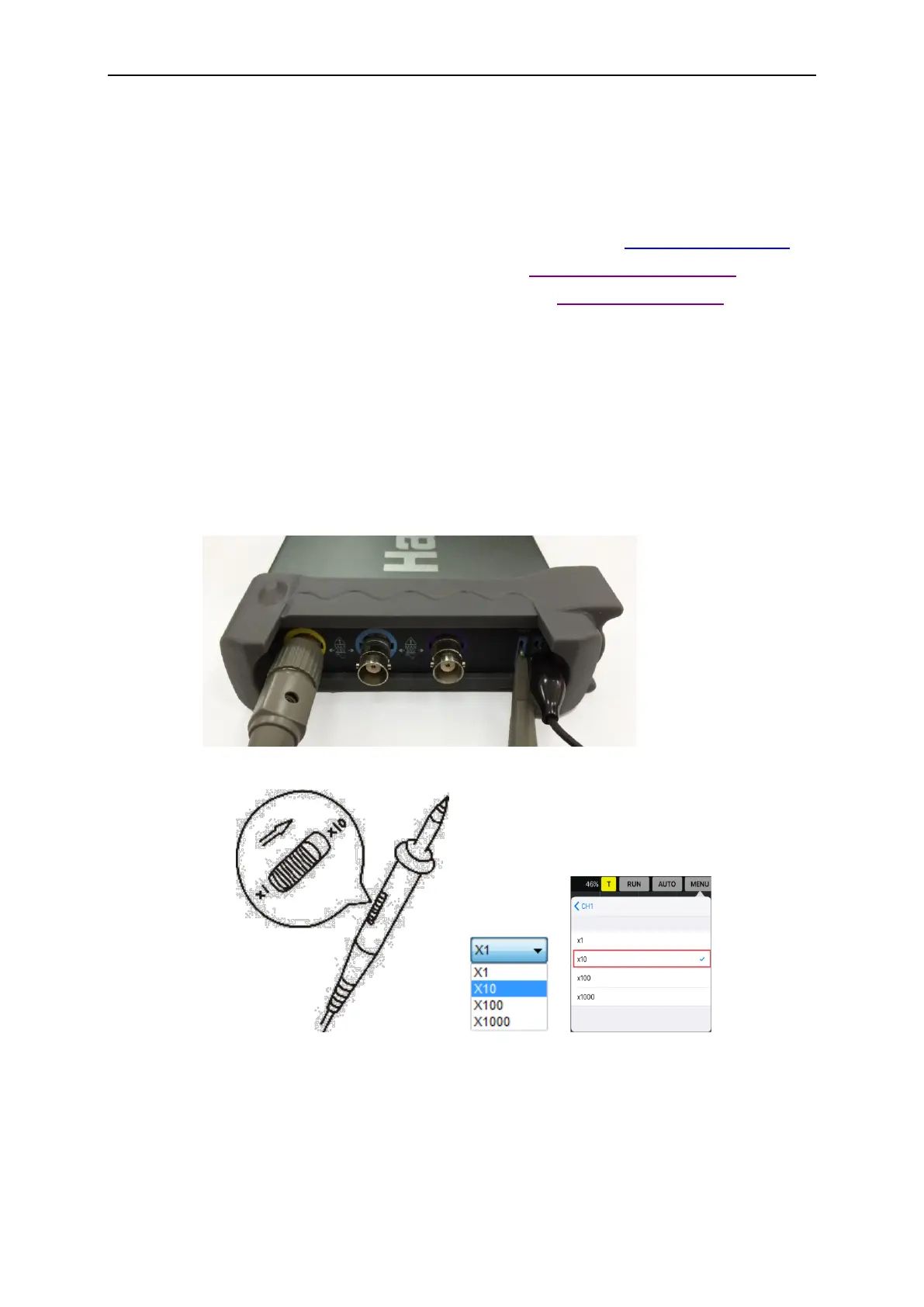

1. Set the attenuation switch on the probe as 10X and connect the probe on the oscilloscope with
CH1. Aim the slot in the probe connector at the faucet on BNC of CH1 and insert, then, turn right to
lock the probe. Finally, attach the tip of probe and ground nip to the Connector of Probe
compensator.
2. Set the CH1 probe attenuation of the oscilloscope to X10. (The default is X1).
3. Attach the tip of probe and ground nip to the Connector of Probe compensator. Click the
AUTO button. A square wave will be displayed within a several seconds. (Approximately 1 KHz,
2V, peak- to- peak).
4. Inspect CH2 with the same method. Repeat steps 2 and 3.
