PC Application
User’s Manual 33

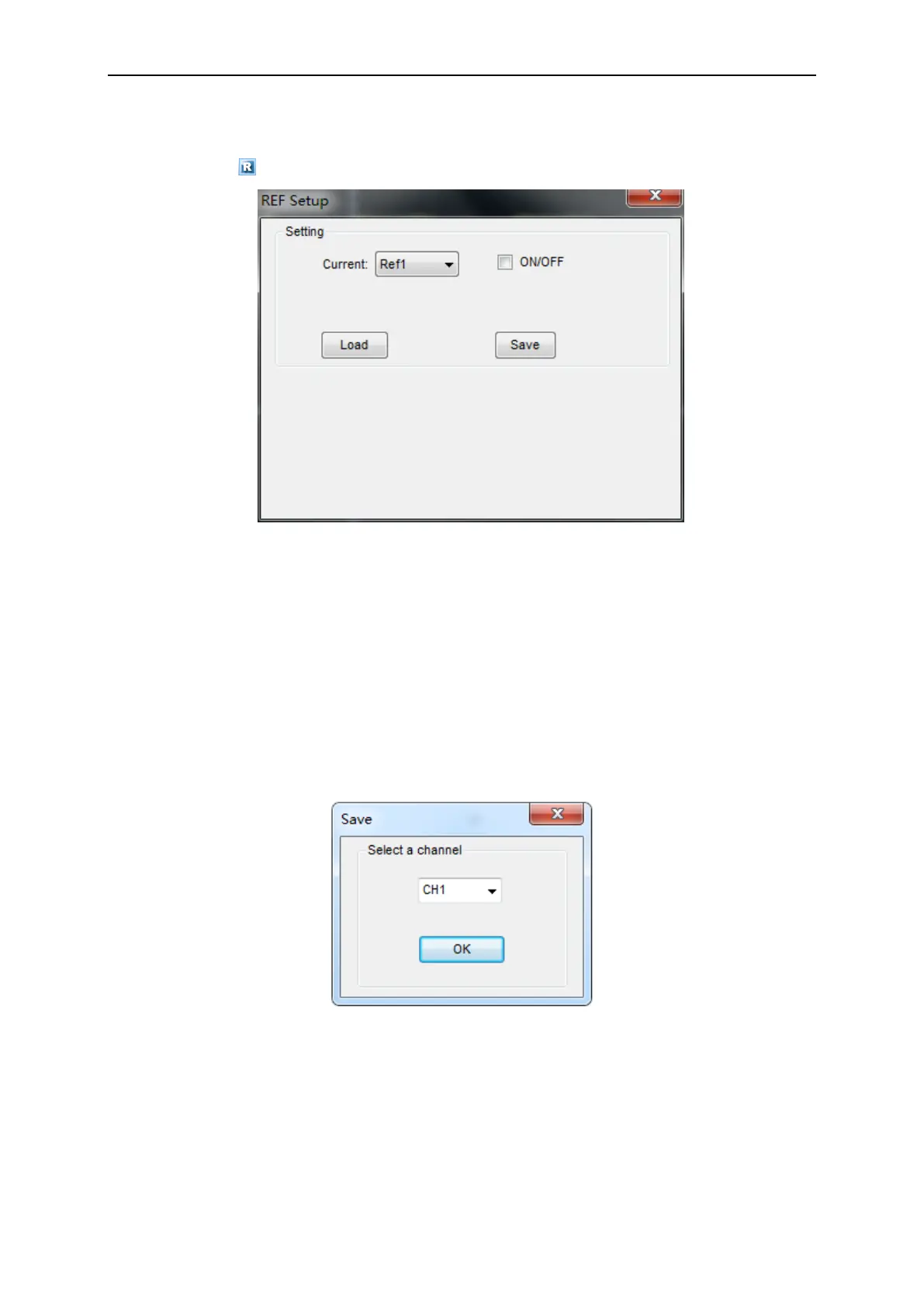

2.11.2 Set Reference
Click the button in toolbar or “Setup-> REF” on menu to set REF channel.
There are two Ref channels, Ref1 and Ref2.
The Reference Channel Function:
On/Off: Turn on/off the reference channel.
Load
Click “Load” to load the “*.rfc” file that was selected. The load file window will appear.
Save
Click Save to save the waveform to *.rfc file. The saved source window appears:
The save file window will appear after you selected the saved source.
The Reference Waveform Display Window:
