Tablet1000 User manual Copyright © Qingdao Hantek Electronics Co., LTD
16
The virtual key area on the left of the LCD.
⚫ [HOME] : Shortcut key of the main interface. Tap to enter the main interface.
⚫ [OSC] : Shortcut key of the oscilloscope. Tap to enter the oscilloscope interface.
⚫ [DMM] : Shortcut key of the multimeter. Tap to enter the multimeter interface. If the
device does not support the multimeter function, a message will pop up indicating
that the multimeter is not supported.
⚫ [AFG] : Shortcut key of the signal source. Tap to enter the signal source interface.
If the machine does not support the signal source function, a message will pop up
indicating that the signal source is not supported.
⚫ [H/R] : Pause and run key. Under the oscilloscope function, pause or run waveform
update. Under the multimeter function, pause or start measuring data. Under signal
generator function, open or close waveform output.
⚫ [PRINT] : Screenshot key. Save the current screen to internal memory or external
memory.
3. LCD
800*480 resolution LCD.
4.4.2 Rear Panel

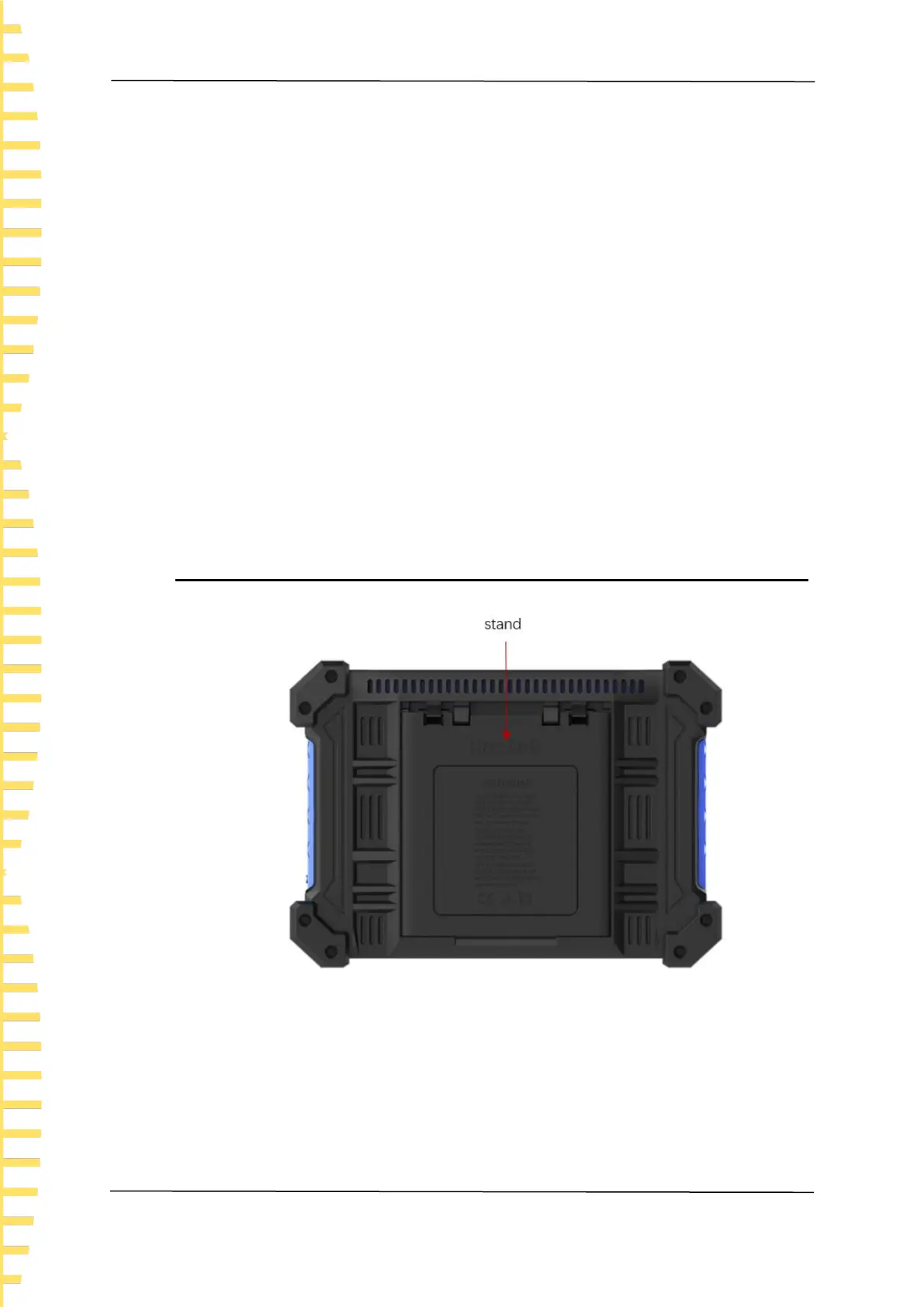

Figure 4.7 Rear view
1. Stand
With the hanging supporting stand, it can be used anywhere.
