Hantek TO1154D User Manual

Trigger oscilloscope
EN
Tablet1000 User manual Copyright © Qingdao Hantek Electronics Co., LTD
44
1. Click the trigger area in the lower right corner of the screen to enter the Trigger
menu.
2. Click Timeout on the left side of the menu.
3. Click Source and select CH1 ~ CH4 as the trigger source.
4. Click Mode and select trigger mode (automatic, normal, single).
5. Click Holdoff to adjust the trigger hod-off.
6. Click Polarity to select positive or negative polarity trigger.
Positive polarity: Start timing when the rising edge of the input signal passes
through the trigger level.
Negative polarity: Start timing when the falling edge of the input signal passes
through the trigger level.
7. Click Time to set a reference value for the timeout period.

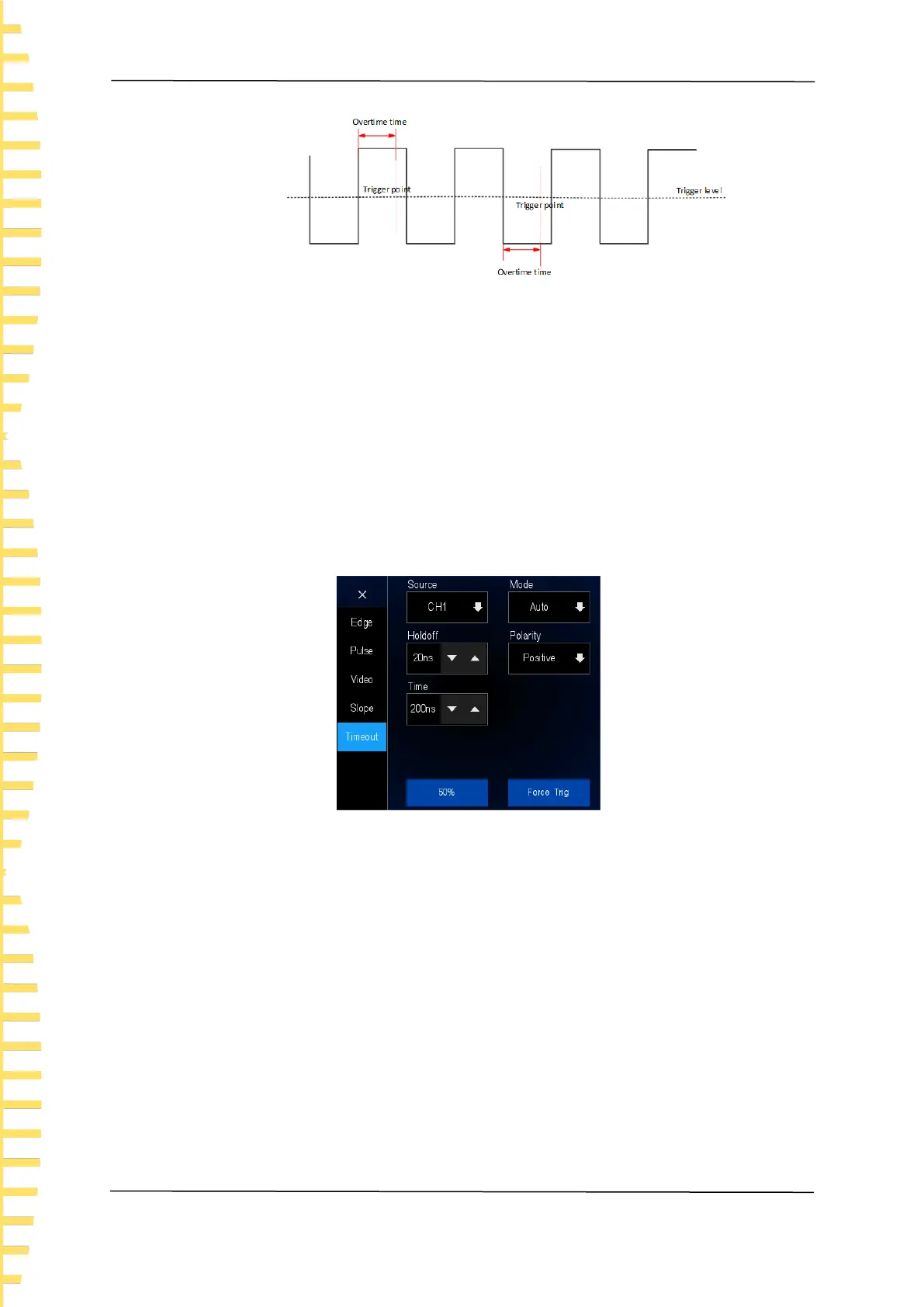

Figure 9.6 Timeout trigger menu
