This interface connects USB-compatible storage devices to the instrument. Read
the waveform file or status file in the USB disk, or save the current instrument state
or edited waveform data to the USB disk, or save the current screen as a picture to
the USB disk.
2. Type-C
Through this interface, the instrument can be connected to the computer, and the
user can connect the upper computer software or send SCPI instructions.
This interface is also a charging port, which can charge the machine with the power
adapter and USB cable delivered with the accessories.
File sharing is also supported. For details about USB Sharing, see section
"Settings".

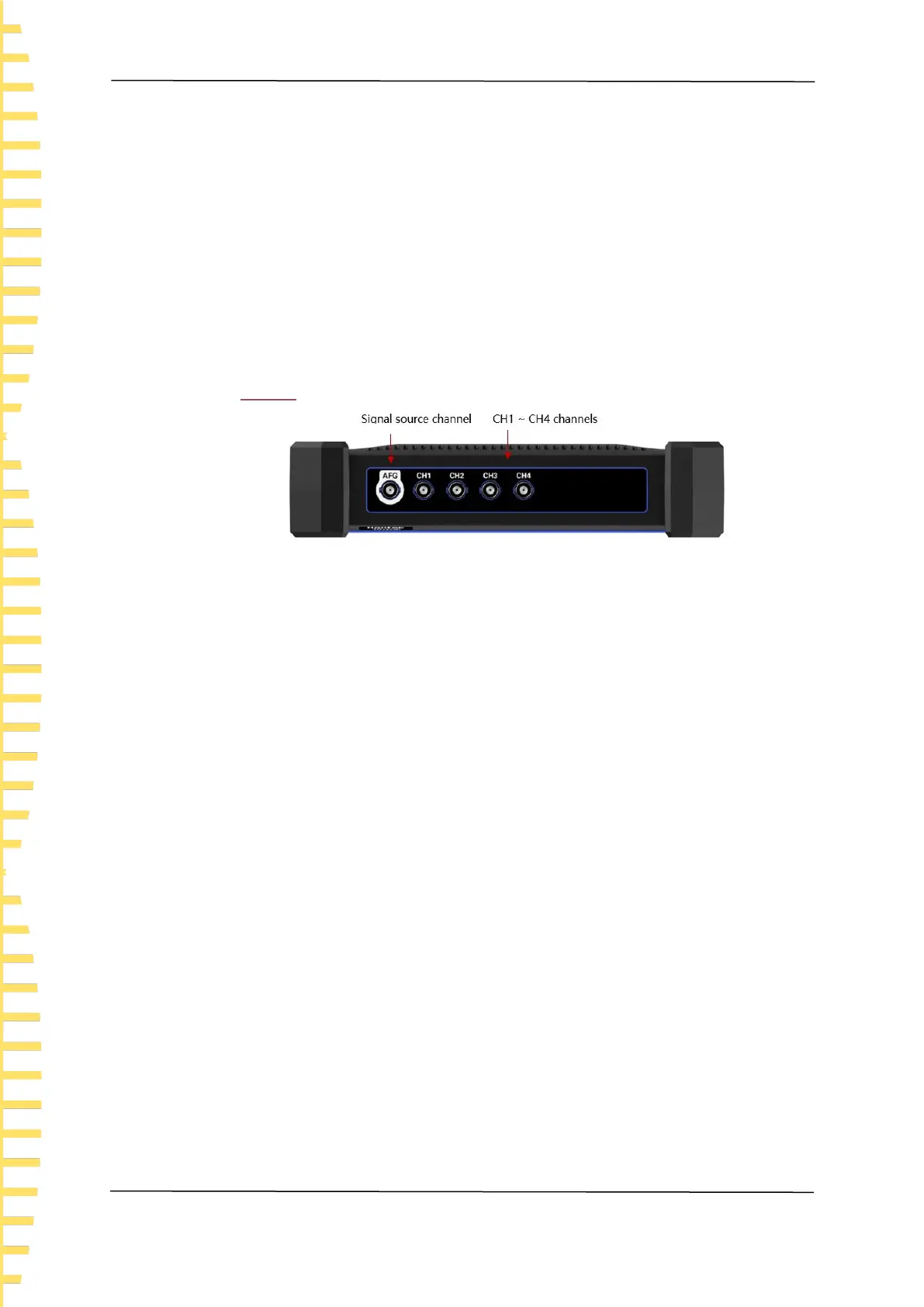

Figure 4.10 Upper panel
1. Signal source channel
The signal source channel interface outputs different types of waveform. For
devices that do not support a signal source, the signal source channel outputs 1KHz
square wave signals.
2. CH1 ~ CH4 channels
4 analog channels that connects the probe and analogs signal input.
