Set the horizontal system
EN
Tablet1000 User manual Copyright © Qingdao Hantek Electronics Co., LTD
24
5 Set the horizontal system
This section contains detailed information about oscilloscope horizontal systems. You
are advised to read carefully in order to understand its settings, functions and
operations.

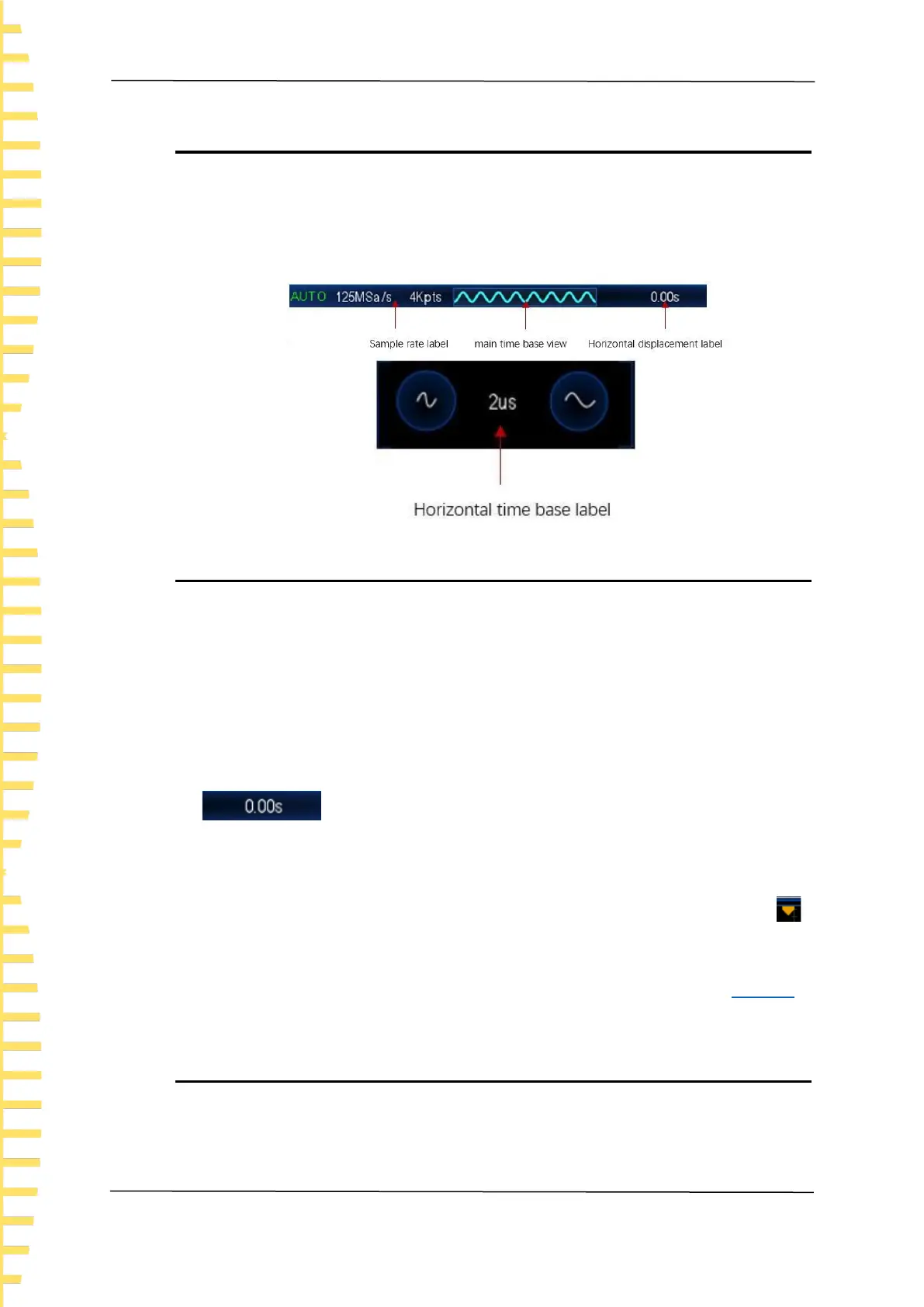

The following figure shows the sampling rate, storage depth, primary time base and
horizontal displacement.
5.1 Adjust the horizontal displacement
Horizontal displacement refers to the displacement of waveform trigger points of all
channels in the horizontal direction relative to the center of the screen. When the
waveform trigger point is on the left (right) side of the screen center, the horizontal
displacement is positive (negative).
When the horizontal displacement is changed, the waveform trigger points and displayed
waveforms of all channels move left and right. The horizontal displacement at the top of
the screen changes in real time, as shown in the figure below.
Adjust the horizontal displacement by touch screen gestures
Adjust the horizontal displacement by dragging. The horizontal trigger position icon
on the screen will move along with your finger slide. You can change the position of the
control trigger point relative to the center of the screen while adjusting the horizontal
position of the waveforms of all analog channels roughly. For details, see the Dragging
section.
5.2 Adjust the horizontal time base (time/grid)
The horizontal time base is the time value represented by each grid in the horizontal
direction of the display screen, generally expressed as s/div. If the horizontal time base is
changed, the horizontal time base will be displayed in real time as shown below.
