10 Measure
The voltage - time diagram displayed can be used to measure the displayed waveform in
many ways such as using screen grid scale, cursors or automatic measurements.
Click Measure at the bottom of the screen to enter the measurement menu.
10.1 Grid scale measurement
Grid scale: This method can be used to quickly and intuitively estimate the frequency and
voltage amplitude of the waveform. Simple measurements can be made by the division
and scale coefficient of the grid graph.
For example, you can calculate the relevant primary and secondary scale division and
multiply them by a scaling factor to make simple measurements. If it is calculated that
there are six main vertical scale divisions between the maximum and minimum values of
the waveform, and the scaling coefficient is known to be 50mV/division, the peak-to-peak
voltage can be calculated as follows:
6 divisions x 50mV/ division =300mV
10.2 Measurement parameters
Click Measure to perform the measurement function. 42 automatic measurements are
provided. Follow the following steps for automatic measurement.
⚫ Click the Measure key at the bottom of the oscilloscope interface.
⚫ Click Source and select channel CH1~CH4.
⚫ Click to select the desired measurement parameter, and click OK.
⚫ After the measurement parameter is added, the measurement parameter and the
value will be displayed in the directory, and will be updated in real time.
⚫ To cancel the measurement parameter, click the measurement item again, or click
“Clear all”.

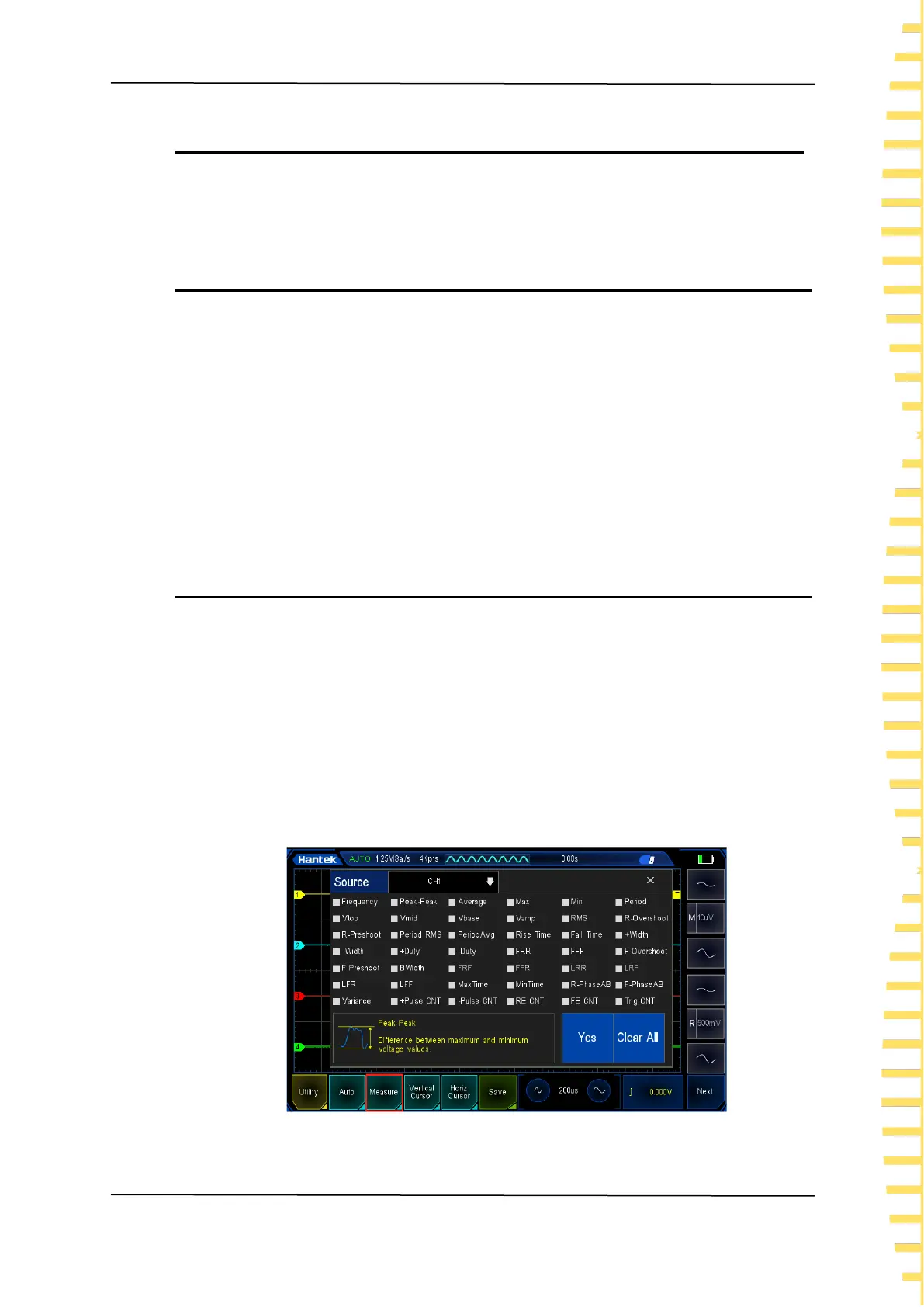

Figure 10.1 Measurement parameters
