HBM CANHEAD - CANHEADdirect

Field of application
CANHEAD A01185_11_X00_00 HBM: public 13
Base
module
Amplifier
module
CAN bus and power supply
CANHEAD amplifier modules for single
strain gages or transducers
MGCplus
ML74B amplifier / AP74
connection board
Ether
net,
USB,
RS232
up to 12
CANHEADs per
bus line
max. 250 m; 100 m in 500 kBaud mode
10 channels per module; with CB1014/15, one
additional channel for temperature compensation
Base
module
Base
module
Amplifier
module
Amplifier
module

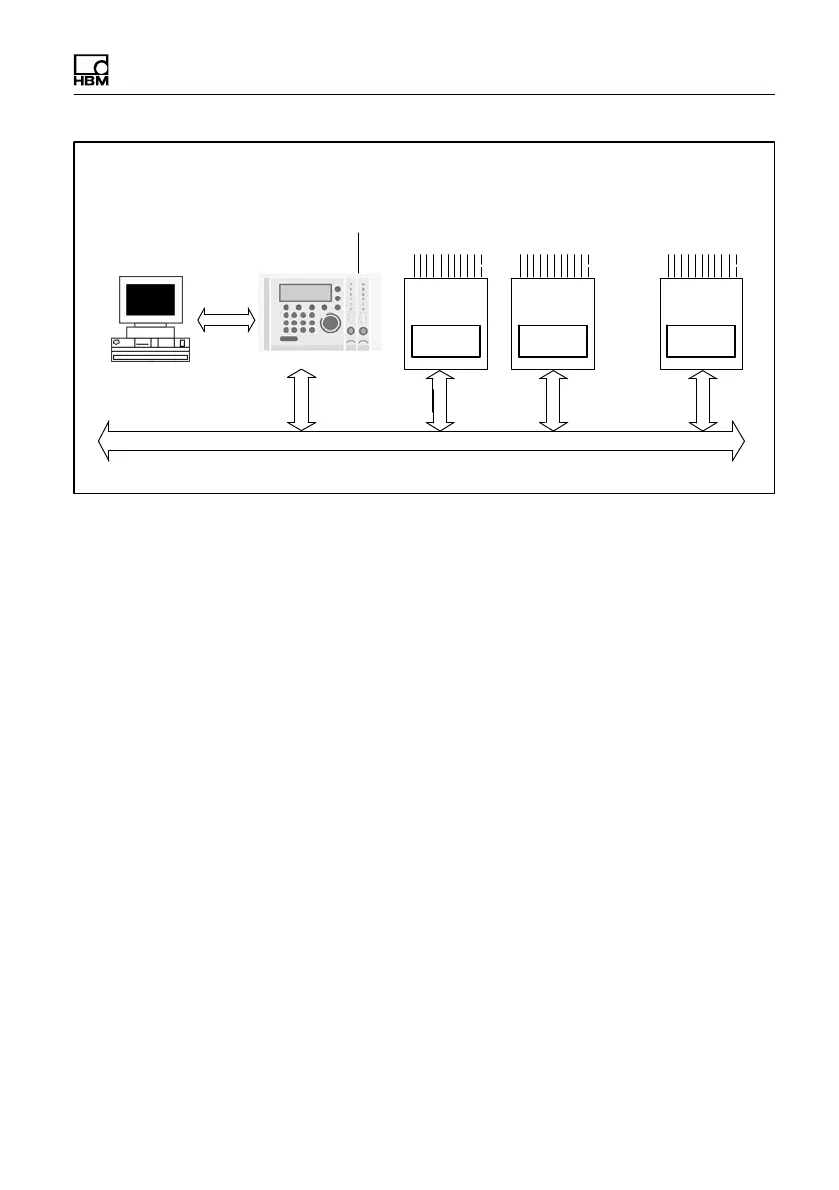

Fig. 4.1 Block diagram of the overall system with MGCplus
CANHEADdirect:
CANHEADdirect is a USB interface module for easy connection of CANHEAD
modules to a PC. A maximum of 5 CANHEAD modules can be connected via
Devicenet. CANHEADdirect supports all functions of the CANHEAD modules.
TEDS (CB1010) is not supported.
Temperature compensation of modules CB1014 and CB1015 with an 11th
channel is not supported.
