HBM CANHEAD - Connecting CANHEAD to MGCplus or CANHEADdirect

Connection
CANHEAD A01185_11_X00_00 HBM: public 43
PIN assignment for the male and female CAN connectors on the back of the
housing
PIN Wire
color
Pin assignment
1 Screen
2 red Supply Voltage (+)
3 black Supply Voltage (-)
4 white CAN high
5 blue CAN low
AP74 or from another CANHEAD base module
to the next base module
LED Green
LED Red
CB1014‐350
12
STATUS
CE
incoming
outgoing

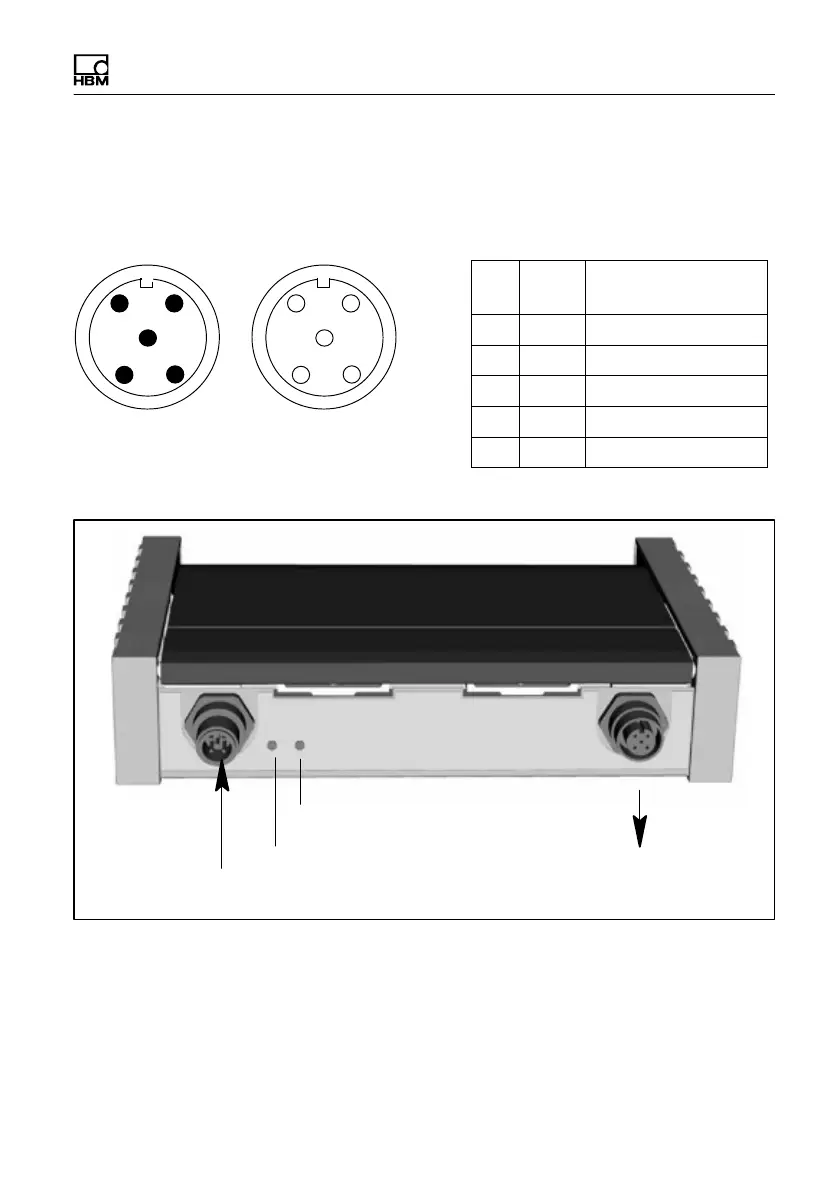

Fig. 7.7 Connection elements on the back
2
3
4
1
5
1
4
3
2
5
Male connector
Female connector
