HEIDENHAIN iTNC 530 209
7.11 TROCHOIDAL SLOT (Cycle 275, DIN/ISO: G275)
U Depth Q201 (incremental): Distance between
workpiece surface and bottom of slot. Input range -
99999.9999 to 99999.9999
U Plunging depth Q202 (incremental): Infeed per cut.
Enter a value greater than 0. Input range 0 to
99999.9999
U Feed rate for plunging Q206: Traversing speed of
the tool while moving to depth in mm/min. Input
range: 0 to 99999.999; alternatively FAUTO, FU, FZ.
U Infeed for finishing Q338 (incremental): Infeed per
cut. Q338=0: Finishing in one infeed. Input range 0 to
99999.9999
U Feed rate for finishing Q385: Traversing speed of
the tool during side finishing in mm/min. Input range:
0 to 99999.9999; alternatively FAUTO, FU, FZ
X
Z

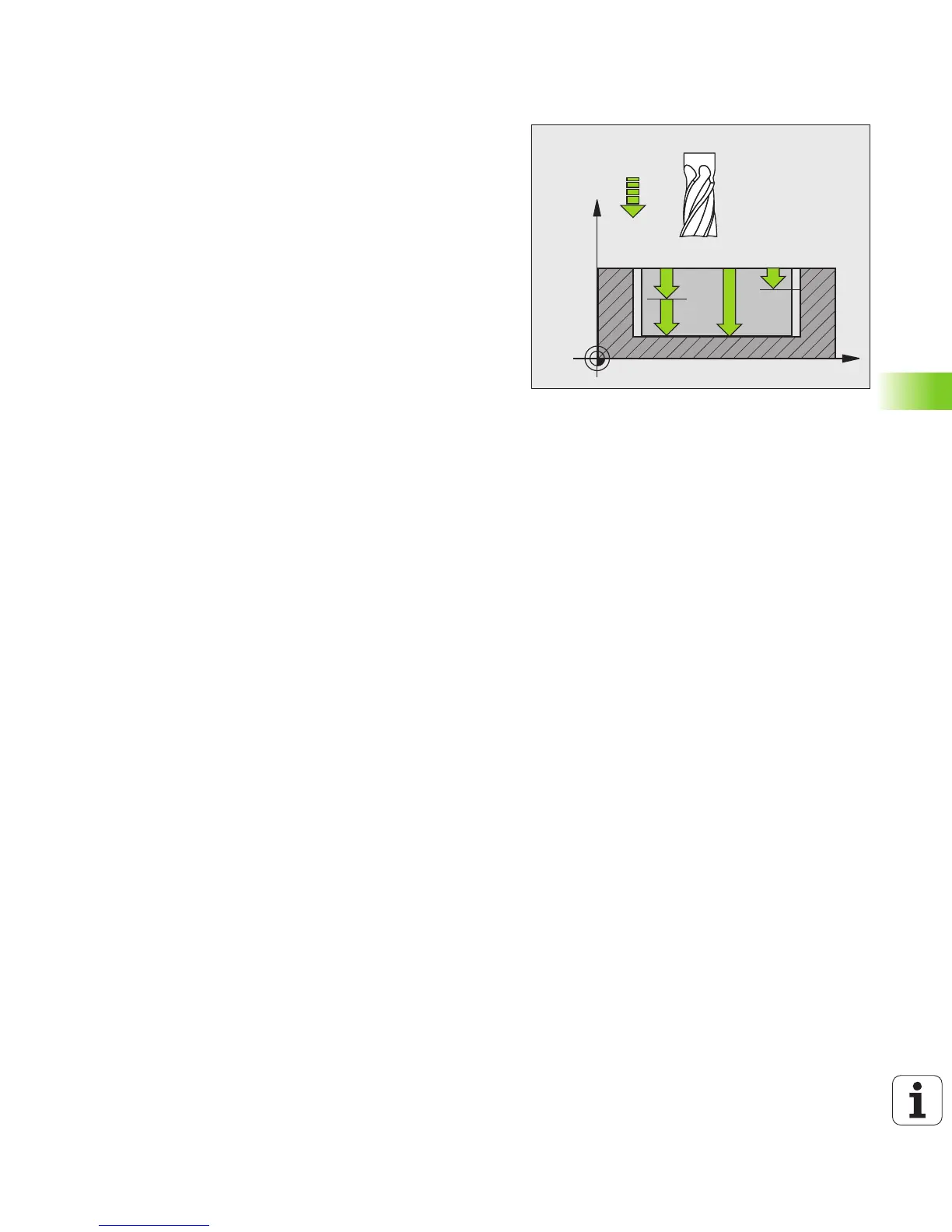

Q201
Q206
Q202
Q338
