HEIDENHAIN iTNC 530 261
10.4 RULED SURFACE (Cycle 231, DIN/ISO: G231)
Cycle parameters
U Starting point in 1st axis Q225 (absolute): Starting
point coordinate of the surface to be multipass-milled
in the reference axis of the working plane. Input range
-99999.9999 to 99999.9999
U Starting point in 2nd axis Q226 (absolute):
Starting point coordinate of the surface to be
multipass-milled in the minor axis of the working
plane. Input range -99999.9999 to 99999.9999
U Starting point in 3rd axis Q227 (absolute): Starting
point coordinate of the surface to be multipass-milled
in the tool axis. Input range -99999.9999 to
99999.9999
U 2nd point in 1st axis Q228 (absolute): End point
coordinate of the surface to be multipass milled in
the reference axis of the working plane. Input range
-99999.9999 to 99999.9999
U 2nd point in 2nd axis Q229 (absolute): End
point coordinate of the surface to be multipass
milled in the minor axis of the working plane.
Input range -99999.9999 to 99999.9999
U 2nd point in 3rd axis Q230 (absolute): End point
coordinate of the surface to be multipass milled in the
spindle axis. Input range -99999.9999 to 99999.9999
U 3rd point in 1st axis Q231 (absolute): Coordinate
of point 3 in the reference axis of the working plane.
Input range -99999.9999 to 99999.9999
U 3rd point in 2nd axis Q232 (absolute): Coordinate
of point 3 in the minor axis of the working plane. Input
range -99999.9999 to 99999.9999
U 3rd point in 3rd axis Q233 (absolute): Coordinate
of point 3 in the spindle axis. Input range:
-99999.9999 to 99999.9999

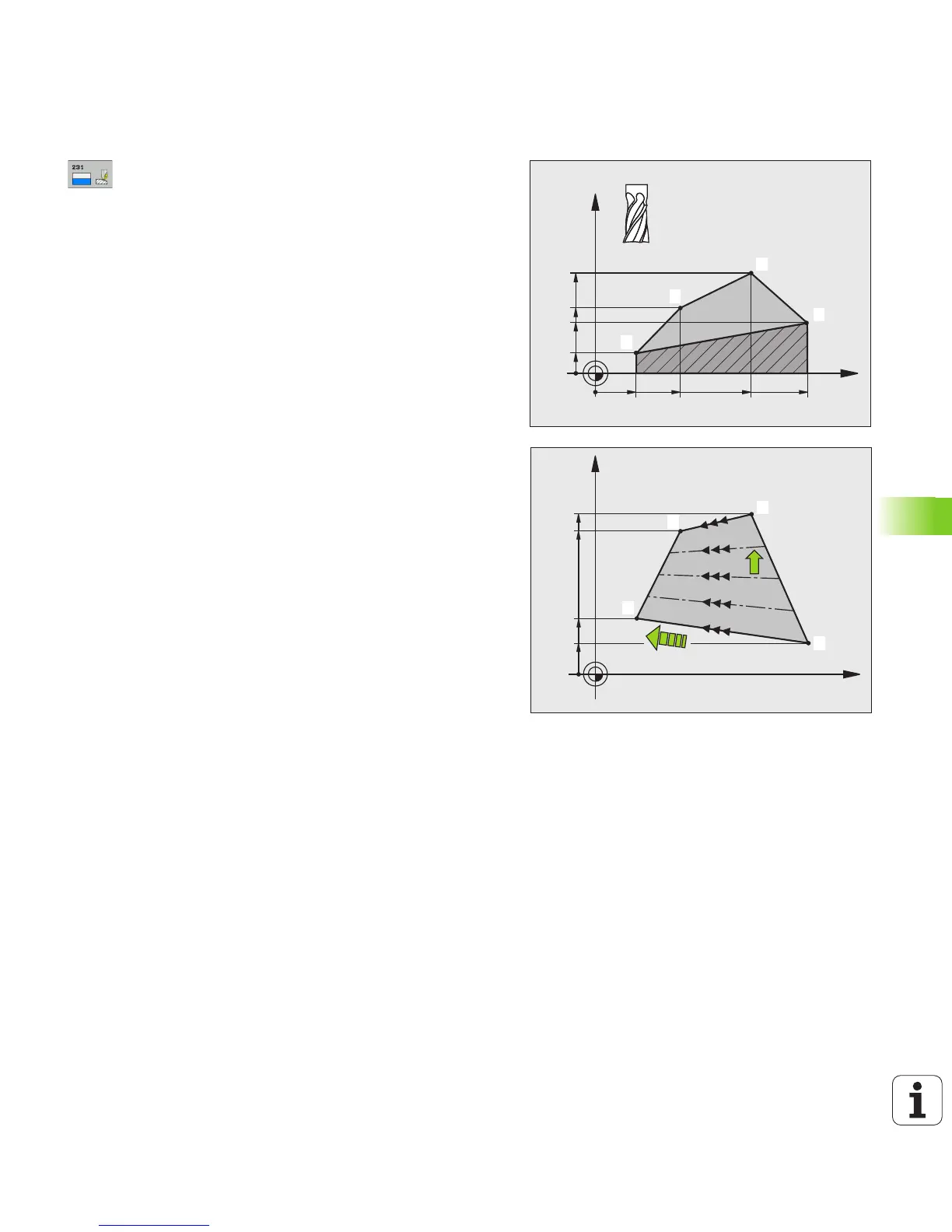

X
Z
Q236
Q233
Q227
Q230
Q228 Q225Q234Q231
1
4
2
3
X
Y
Q229
Q207
N = Q240
Q226
Q232
Q235
1
2
3
4
