Heyer Modular+ - The Patient Module (Circle System)

Repair Information
29
2.15 The patient module (circle system)
2.15.1 Top and back side view on the patient module

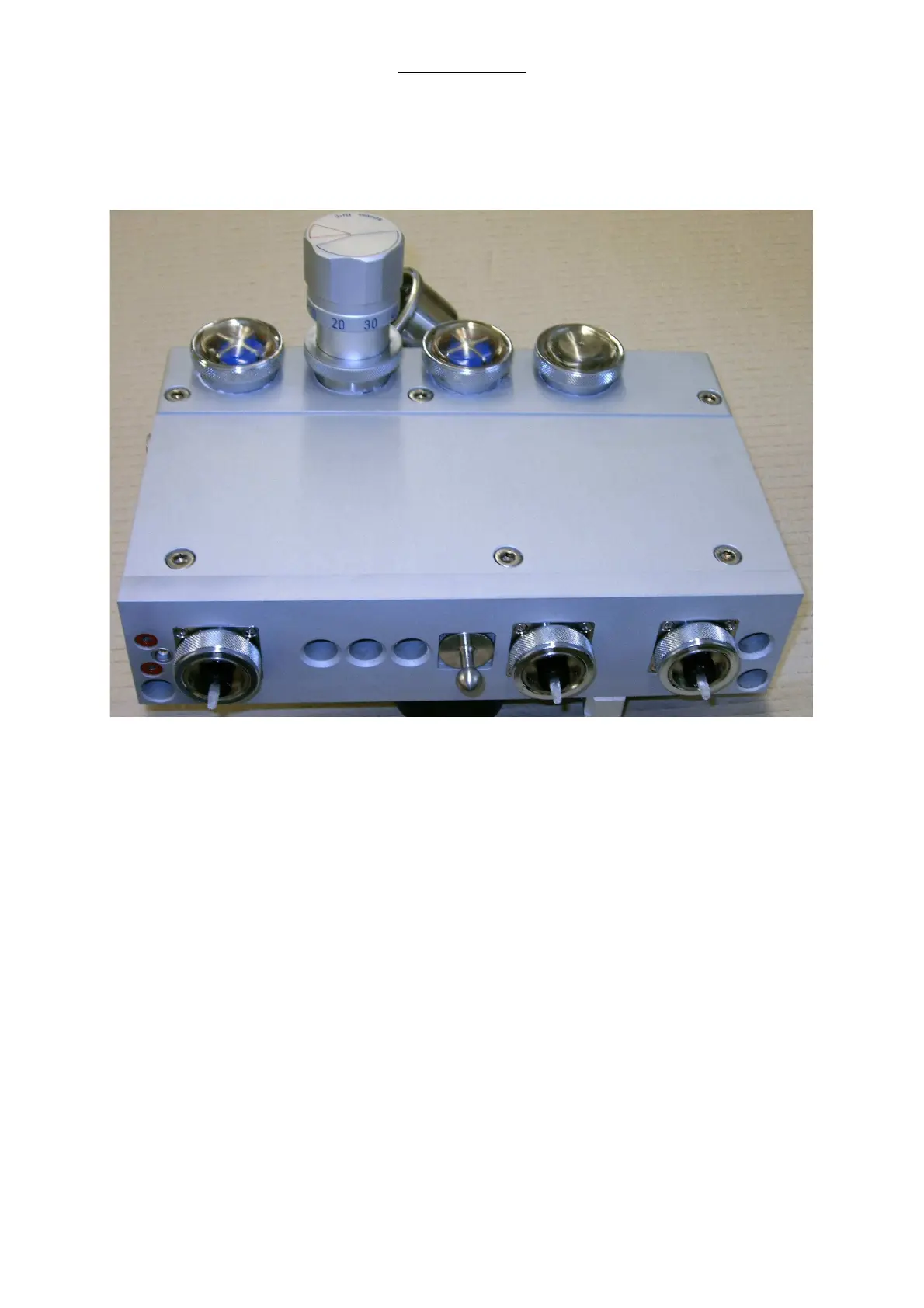

Fig. 7 Top and backside view on the patient module
Pos. Description
1. Expiratory valve (passive)
2. Airway pressure limiting valve (APL)
3. Inspiratory valve (passive)
4. Room air valve, emergency air valve
5. Connector of expiratory flow sensor
6. Connectors of power supply heating blanket
7. Bores for guiding pins of connecting block
8. Expiratory valve (active)
9. Port for pressure measurement
10. Port for expiratory valve activation in the manual mode
11. Port for driving gas
12. Locking bolt
13. Bellows diaphragm valve
14. Decoupling diaphragm valve
15. Port for fresh gas
1 2 3 4
6
5 12 15
8 9 10 11 13 14
7 7
