2.15.3.5 Spontaneous mode, inspiration
gas monitoring
expiratory valve
decoupling valve
bellows valve
when reservoir pressure
is > 2 mbar
MV3 ="0"
MV2 ="0"
MV4 ="0"
MV1 ="0"
V
P
emergency air valve opens
at p < - 3 mbar
V

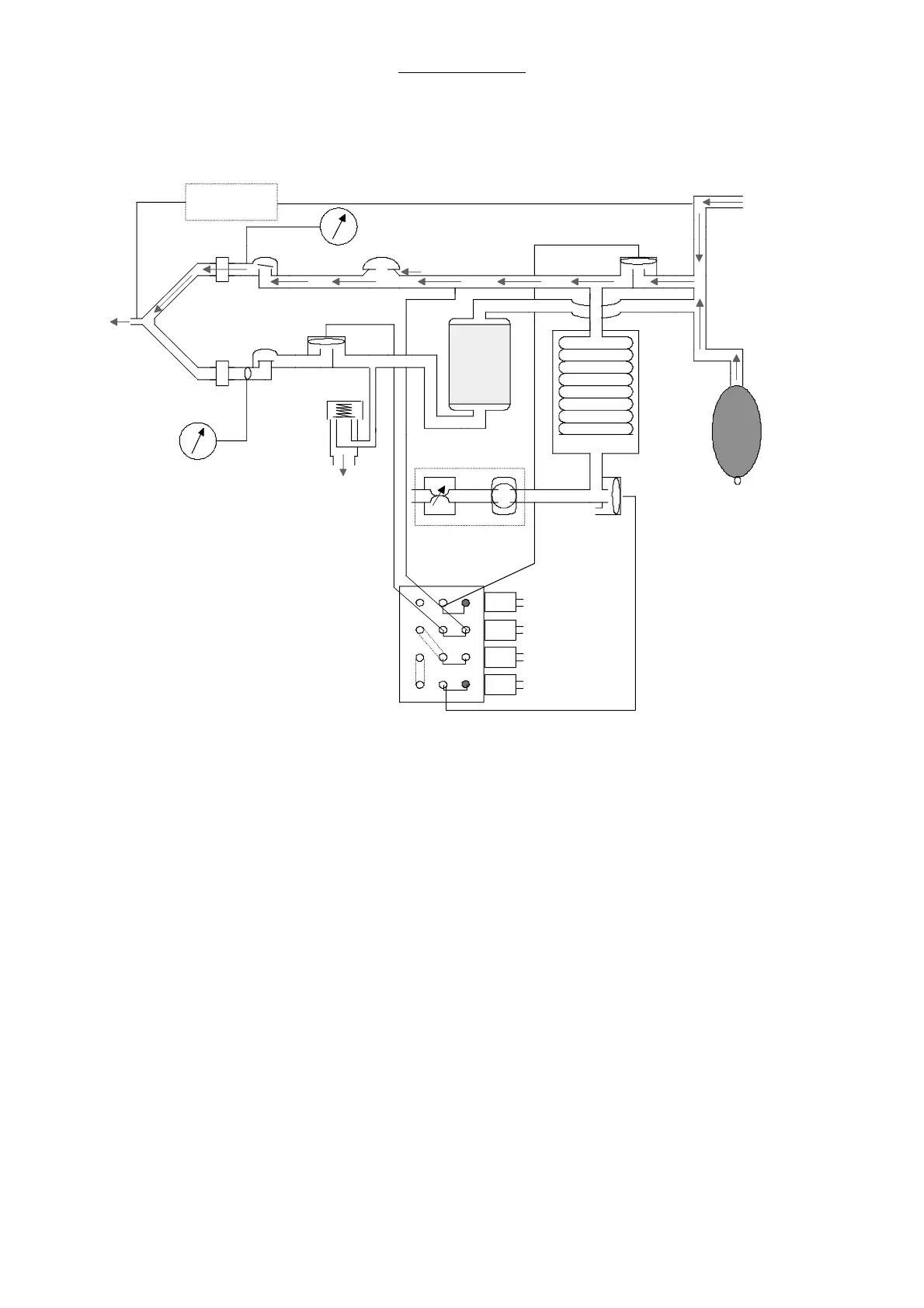

Fig. 14 Survey of the patient module, Spontaneous mode, inspiration
