2.15.3.3 Manual mode, inspiration
V
gas monitoring
expiratory valve
decoupling valve
bellows valve
when the set respiratory
pressure is attained
MV3 ="0"
MV2 ="0"
MV4 ="0"
MV1 ="0"
V
P

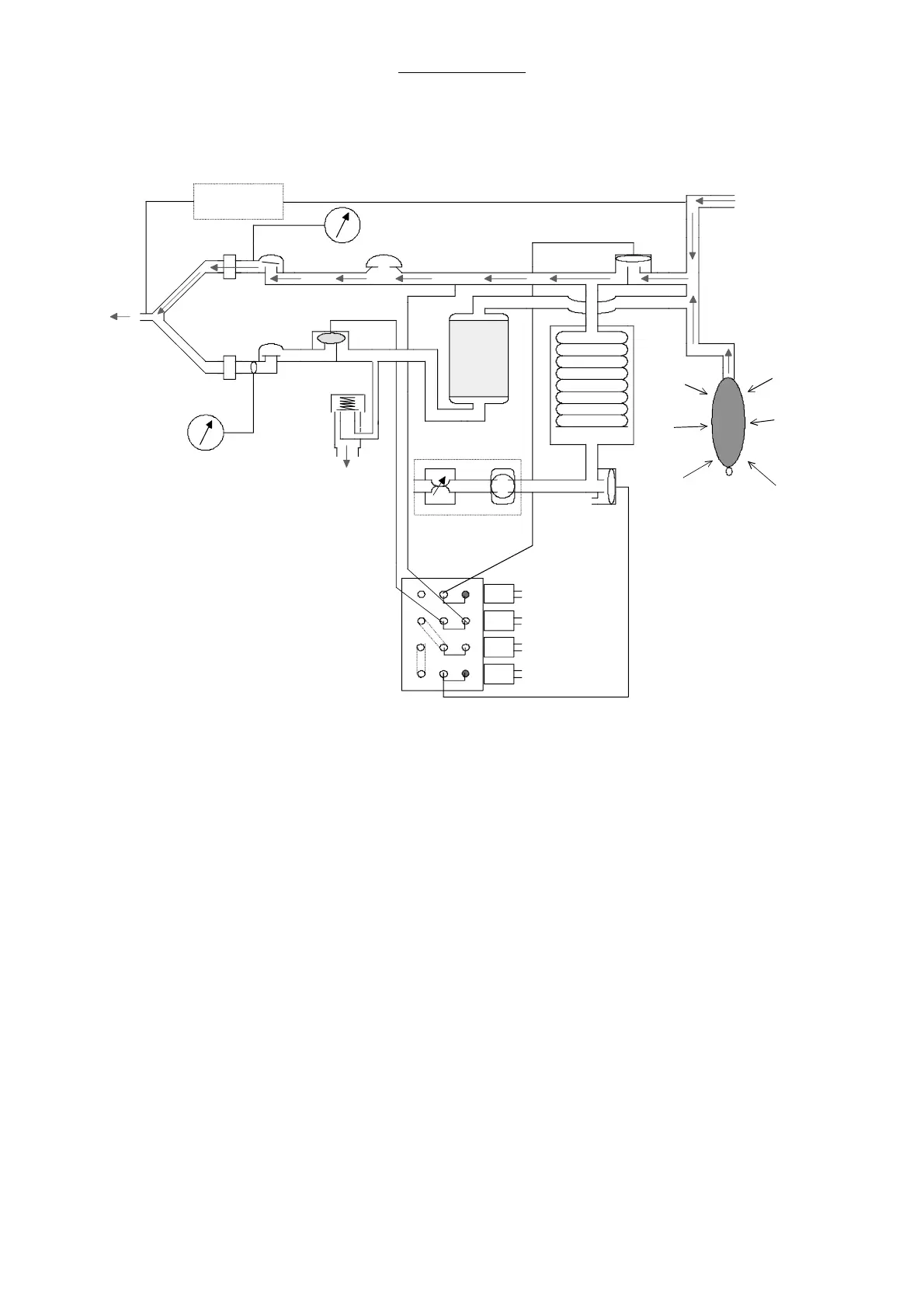

Fig. 12 Survey of the patient module, Manual mode, inspiration
